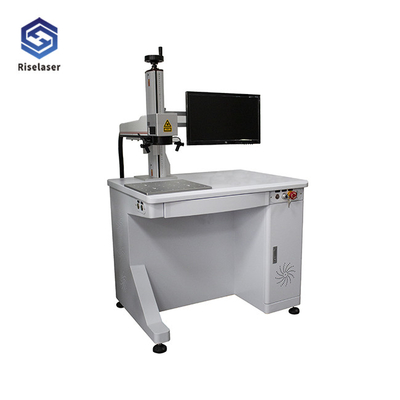

MOPA 20W Fiber Laser Marking Machine For Jewelry Color Marking
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | MOPA | Laser Power | 20w |
|---|---|---|---|
| Working Area | 100*100mm(Adjustable) | Accuracy | 0.01mm |
| Repeated Accuracy | ±0.001mm | Cooling | Aircooling |
| Warranty | 1 Year | Package | Wooden Case |
| Power Supply | AC220V +10% / 50HZ | ||
| Highlight | MOPA Fiber Laser Marking Machine,Aircooling Fiber Laser Marker |
||
Product Description

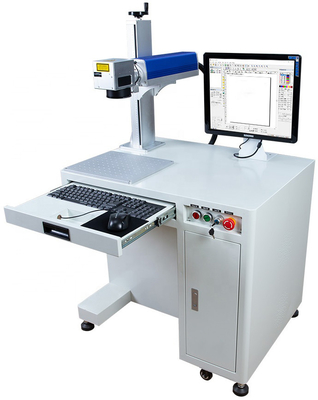

RL-20DM MOPA Fiber Laser Marking Machine for Jewellery
Main Features:
In MOPA (Master Oscillator Power Amplifier) configuration, a semiconductor laser diode serves as the master oscillator and the fiber amplifiers boost the output power. For this MOPA pulsed fiber laser, the pulse width and pulse repetition frequency are able to be adjusted independently. By changing the pulse width of the fiber laser, the peak power of this MOPA fiber laser can be maintained at the same level for different pulse repetition frequency. This feature makes the product an ideal laser source for various industrial applications.
Advantages
1. High-speed marking
2. Small size, steady, without maintenance, easy to operate
3. MOPA - Continuous high-energy laser output
4. Unique applications such as color marking
5. Higher energy conversion efficiency
Applications
|
High-speed marking on various metals |
|
|
Suitable for blackening various alumina materials |
 |
|
Metal deep carving |
|
|
Vivid color marking |
|
Parameters
| Model | RL-20E |
| Transmission cable length | 2 m |
| Average output power | ＞20W |
| Pulse duration | 2-350 ns |
| Pulse repetition rate range | 1 kHz - 4000 kHz |
| Maximum pulse energy | 0.8 mJ |
| Anti-reflection protection | YES |
| Power consumption | 150 W |
| Cooling method | Air-cooling |
| Control system | EZCAD |
| Standard Marking Area | 110mmx110mm (customized) |
| Gross weight (with packaging) | 170 kg |
| Package Size | 106*82*160 mm |
Certifications & Exhibition
FAQ
Q1: I knew nothing about this machine, what kind of machine should I choose?
A1: Just tell us what you want to deal with, then we will give you suggestion and perfect solutions.
Q2: What should I do if I don’t know how to use it?
A2: We will send you a video and an English manual attached to the machine. If you still have some doubts, please do not hesitate to contact us.
Q3: If something goes wrong with this machine during warranty period, what should I do?
A3: We will supply free parts during warranty period if the machine had some problems.
