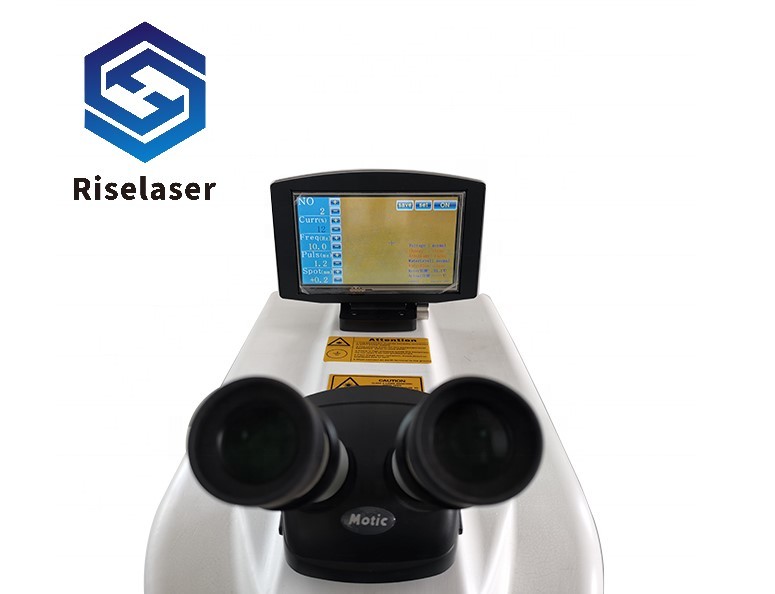

CCD Display 1064nm hand Laser Welding Machine Portable Laser Welder

  • CCD Display 1064nm hand Laser Welding Machine Portable Laser Welder
Place of Origin Shenzhen
Brand Name Riselaser
Certification CE
Model Number RL-Y80
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Wooden Box
Delivery Time 5-9 working days
Payment Terms T/T, Western Union
Supply Ability 200 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 110V/220V Optional Warranty 1 Year
Certification CE Power(W) 80W
Application Jewelry Welding Cooling Method Water Cooling
Highlight

1064nm hand Laser Welding Machine

,

CCD Display hand Laser Welding Machine

,

1064nm Portable Laser Welder
Leave a Message
Product Description

CCD Display 1064nm hand Laser Welding Machine Portable Laser Welder



Product Description

Suitable for welding and repairing gold and silver jewelry, golf heads, electronic parts, hole welding, trachoma spot welding, welding inserts, stainless steel, titanium alloy decoration, precision casting products, widely used in jewelry, electronics, watches and other industries.



Features

1. 10x microscope zoom, cross cursor indication and automatic light-blocking function with high-speed liquid crystal light valve. Ensure that the solder joints are beautiful and will not oxidize and discolor.

2. With the ability to work continuously for 24 hours, the machine runs stably.

3. Humanized design, ergonomics, long-term work without fatigue.

4. Melting fully,without trachoma,leave no trace repair;





Technology Parameter

Input Voltage

AC220±10% 50HZ ( Customizable)

Laser Frequency

1.0-10.0HZ Continuously Adjustable

Pulse Width

0.1~10.0ms Grading Adjustable

Spot Adjustment Range

±3mm

Laser Output Power

≤80W

Aiming and Positioning

CCD and Microscope

Environment Temperature

≤45℃

Operation Method

Touch Control

Laser Wavelength

1064nm

Installation Size of Display Touch Screen

137*190mm

Size

L*W*H : 525*305*390 mm

Weight

 26KGS



Product Show

CCD Display 1064nm hand Laser Welding Machine Portable Laser Welder 0CCD Display 1064nm hand Laser Welding Machine Portable Laser Welder 1CCD Display 1064nm hand Laser Welding Machine Portable Laser Welder 2


Applicable & Samples



CCD Display 1064nm hand Laser Welding Machine Portable Laser Welder 3







Packaging

CCD Display 1064nm hand Laser Welding Machine Portable Laser Welder 4
