Lightweight 0.1mJ UV Laser Marking Machine For PP Plastic PVC Wood
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3W UV Laser Marking Machine | Working Accuracy | 0.01mm |
|---|---|---|---|
| Control Software | EZCAD | Warranty | 1 Year |
| Laser Wavelength | 355nm | Marking Speed | 0-7000mm/s |
| Certificate | CE | Color | Silver,Blue |
| Highlight | 0.1mJ UV Laser Marking Machine,355nm Laser Marking Machine,0.12mJ UV Laser Marking Machine |
||
Product Description

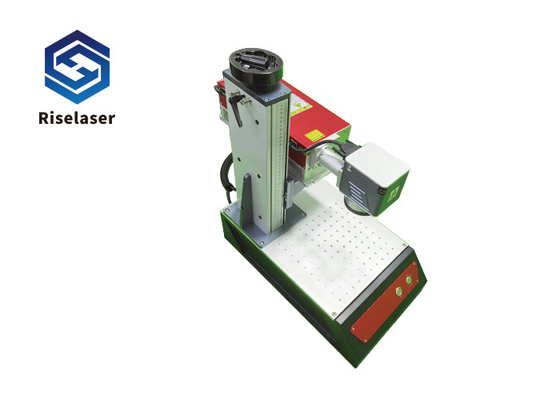

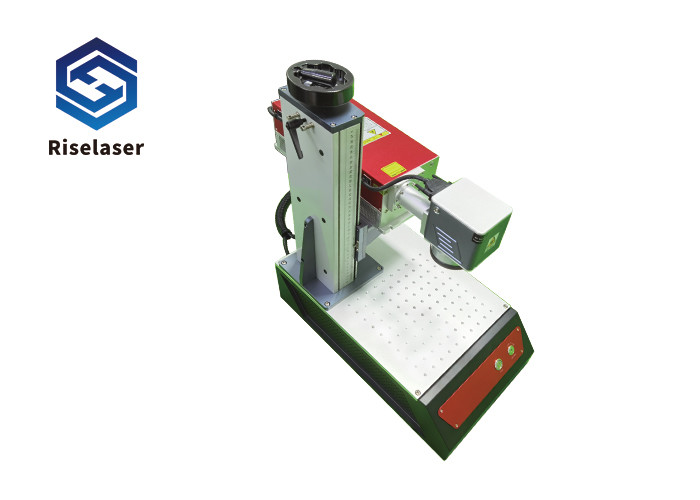

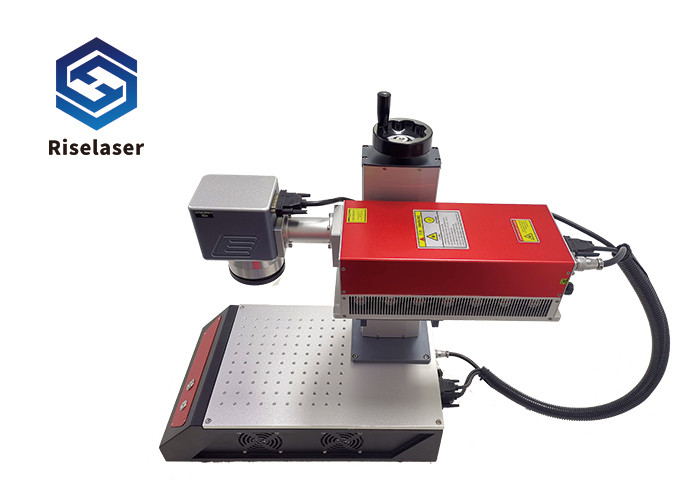

Lightweight 0.1mJ UV Laser Marking Machine For PP Plastic PVC Wood
Product Features
(1) Compact and fashionable design.
(2) Narrower pulse width and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider the adapting range of materials is. This implement perfect UV marking in some relatively hard material.
(3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so the UV marker is very suitable for precision uv marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
(4) High efficiency of the photoelectric conversion and long service life.
Product Parameter
| RL-UV3 | RL-UV5 | |
| Wavelength | 355nm | 355nm |
| Output power | >3W@30KHz | >5W@40KHz |
| Maximum pulse energy | 0.1mJ@30KHz | 0.12mJ@40KHz |
| Pulse Repetition Frequency | 1-150KHz | 1-150KHz |
| Pulse duration | <15ns@30KHz | <18ns@40KHz |
| Average power stability | <3% | <3% |
| Spatial mode | TEM00 (M²< 1.5) | TEM00 (M²< 1.5) |
| Polarization ratio | >100:1 Horizontal | >100:1 Horizontal |
| 1/e2 beam diameter at output | 0.7mm | 0.8mm |
| Beam circularity | >90% | >90% |
Applications
Marking of various sensitive materials, brittle materials, plastics, flexible materials, etc. scribing, punching
Certifications
Packaging & Shipping
FAQ
Q: What are the laser marking machines? What are the differences?
Re: Generally speaking, common laser marking machines include fiber laser marking machines, CO2 laser marking machines, UV laser marking machine and green light laser marking machine.
Fiber laser marking machine is a machine that uses a rare-earth-doped glass fiber as a gain medium as the light source. In simple terms, it uses a fiber laser. This machine is mainly suitable for marking a variety of metal materials and some non-metal material (except for transparent, relatively soft, solid wood, bamboo, leather)
CO2 laser marking machine is a machine that uses CO2 laser (gas laser) as the light source. Mainly suitable for a variety of non-metal materials such as: leather, wood, ceramics, plastics and other non-metal materials. If metal materials want to be marked with a CO2 marking machine, it need to spray paint on the surface.
The UV laser used in the UV laser marking machine is a solid-state laser. Due to its shorter wavelength and easier absorption by substances, it is more suitable for some fields with higher requirements, especially in plastics, semiconductor materials and glass.
