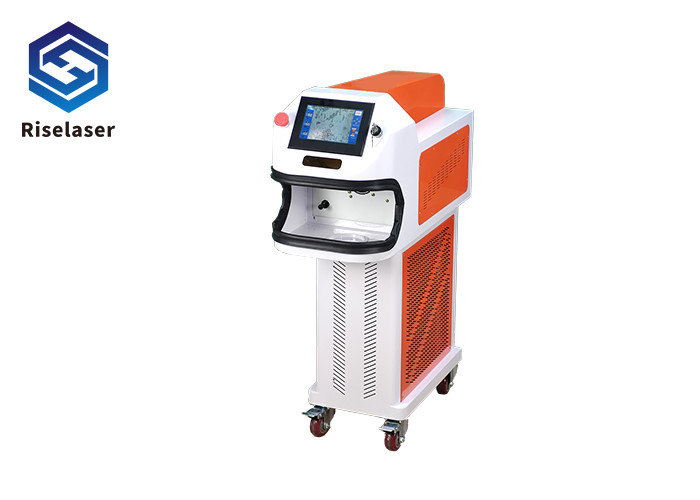

200W Continuous Fiber Laser Welder Gold Jewellery Laser Soldering Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 200W Spot Laser Welding Machine | Application | Spot And Continuous Welding |
|---|---|---|---|
| Laser Source | Yag Laser | Color | Orange |
| Voltage | 220V/110V Optional | Cooling Method | Water Cooling |
| Warranty | 1 Year | ||
| Highlight | 200W Continuous Fiber Laser Welder,1064nm Gold Jewellery Laser Soldering Machine,1064nm Fiber Laser Welder |
||
Product Description
200W Continuous Fiber Laser Welder Gold Jewellery Laser Soldering Machine
Main advantages: fast, efficient, large depth, small deformation, small heat-affected zone, high welding quality, non-polluting solder joints, high efficiency and environmental protection.
Model Features:
1. One-piece design, built-in water tank, saving space. Casters help the machine to move easily.
2. Higher cooling rate to obtain weld structure and good welding effect.
3. Compared with resistance welding, laser welding does not use electrodes, thereby reducing working time and reducing costs.
4. The welding seam is thin, the depth is large, the taper is small, high precision, the appearance is smooth and beautiful.
Parameters
| Type of laser source | ND:Yag 1064nm |
| Max Power | 230W |
| Frequency | 0.1-30Hz |
| Pulse Width | 0.1-20ms |
| Beam diameter adjustment range | 0.1-3mm |
| Peak energy | 90 Joule |
| Aiming Positioning | CCD and 10X microscope (optional) |
| Positioning accuracy | +/-0.02mm |
| Cooling | Water cooling |
| Power supply | optional 110V/220V/50Hz/60Hz/30A |
Application Range:
Jewellery laser welding machine Widely used in tiny parts of precision machining,rings, pendants, bracelets, dentures, and cell phone charger interface, hardware,clock, sports, golf, medical devices. Titanium alloy ornaments,frames, especially for gold and silver jewelry fill the holes, weld line, embedded parts welding.
FAQ
1. How to operate the machine ?
We will deliver English manual and videos with the machine to you. If you still need our help, please contact us.
2. How can I get the sample to check you quality ?
Yes. Please send us your samples and we test for you.
3. Can the machine be customized ?
Sure, we can adjust the parts according to your requirements..
4. Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
