80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine

  • 80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine
Place of Origin SHENZHEN
Brand Name Riselaser
Certification CE
Model Number RL-Y200
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms Western Union, MoneyGram, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Riselaser Model Name RL-Y200
Application Jewelry Welding Laser Source YAG
Color Blue Voltage 220V/110V Optional
Cooling Method Water Cooling Warranty 1 Year
Highlight

200W YAG Laser Welding Machine

,

80J YAG Laser Welding Machine

,

80J Jewellery Laser Solder Machine
Leave a Message
Product Description

80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine



Product introduction

This welding machine is specially developed for perforation and spot welding of gold and silver jewelry. Laser spot welding is an important aspect of the application of laser processing technology. The spot welding process is heat conduction, that is, the surface of the workpiece is heated by laser radiation, and the surface heat is diffused into the interior through thermal conduction, and the width, energy, peak power and repetition frequency of the laser pulse are controlled to melt the workpiece to form a specific molten pool. Because of its unique advantages, it is widely used in the welding process of gold and silver jewelry and small and small parts.



Product Features​
1. It allows you to select the output power, frequency, pulse width and other parameters of the laser through the touch panel.

2. It also has an automatic protection function to prevent misoperation and temperature fluctuations.

3. The xenon lamp has a long working life and simple replacement operation.

4. High-resolution CCD and microscope can be optionally equipped.





Specification:​

Model No. RL-Y100 RL-Y150 RL-Y200
Laser Source Nd: YAG
Laser Wavelength 1064nm
Rated Power 100W 150W 200W
Laser Energy 40J 60J 80J
Pulse Width ≤20ms
Pulse Frequency ≤50Hz
Beam Diameter 0.1-3.0mm
Power Supply 220V±10% /50Hz
Observing System microscope
Chamber Illumination LED lamps
Parameters Memorization 10 groups
Protection Alert flow alert
Language Display Chinese/English
Shield Gas Supply One line
Cooling System water cooling
Power Consumption 4KW 5KW 6KW
Welding Chamber Dimensions 300mm*450mm*150mm(L*W*H)
Machine Dimensions 920mm*560mm*1220mm (L*W*H)
Running Environment 5℃-30℃, 5%-75% humidity
Net Weight 70kg

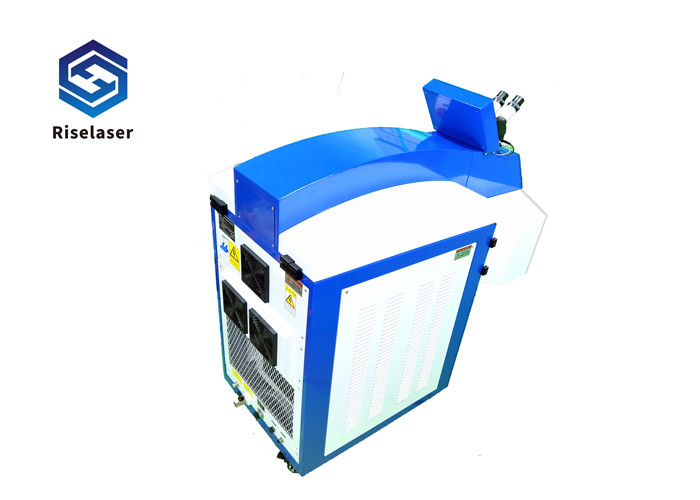

80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine 0



Industry Application:

Suitable for welding vacuum cups, stainless steel bowls, sensors, relays, tungsten wires, high-power diodes, aluminum alloys, laptop shells, mobile phone batteries, molds, electrical accessories, filters, nozzles, stainless steel products, golf heads, gold, silver And all zinc alloy products etc...

80J 200W YAG Laser Welding Machine Jewellery Laser Solder Machine 1





After-Sales Service

* Warranty: Two years warranty for our machine.



* Training service:

We will supply the machine with training video and user's manual in English for installing, operation,to ensure you could use our machine well.
We also offer free training at our factory if you could visit us.



* Technical service:

24 hours online service, lifelong technical support online video or by email to help you solve all the questions in use.

Oversea service for training,installing, operating could be offered if necessary
