YAG Small Optical Laser Welding Machine Continuous Welder 200W
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | Riselaser | Model Name | RL-Y200 |
|---|---|---|---|
| Application | Jewelry Welding | Laser Source | YAG |
| Color | Customized | Voltage | 220V/110V Optional |
| Cooling Method | Water Cooling | Warranty | 1 Year |
| Highlight | YAG Small Optical Laser Welding Machine,200W Continuous Welder,200W Optical Laser Welding Machine |
||
Product Description

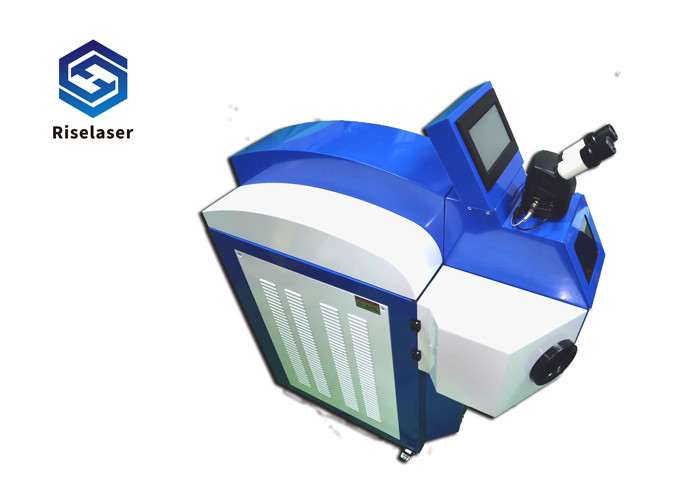

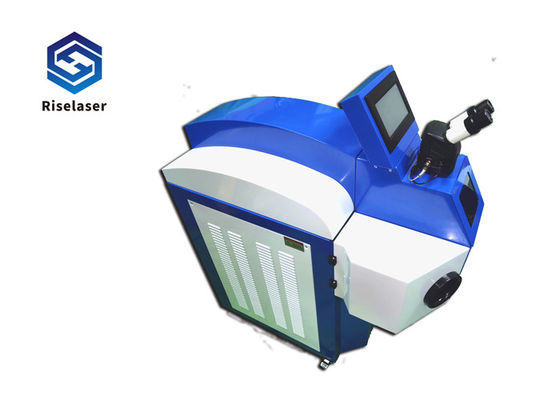

YAG Small Optical Laser Welding Machine Continuous Welder 200W
Product introduction
Optical laser welding machines apply high-energy pulses to heat specific small areas of specific materials. Laser welding is a new type of welding technology, mainly used for thin materials and precision parts. It can realize spot welding, butt welding, seam welding and sealing welding. Its advantages are high position accuracy and continuous and stable work.
Product Features
1) Whole machine adopted ergonomics design. It can better meet jewelry industry's requirements on precision, beautiful, stable performance, long time and constant processing.
2) Big inner space, it is convenient for placing tools and fixtures.
3) It is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it operates more smoothly.
4) It is easy to replace dust screen, clean working area and recycle welding slag.
5) With the LED ring-shaped astral lamp which can be highlighted and microscope imported from Germany, the observation on welding position is much clearer.
6) More precise light spot, it meets the requirement of precision welding.
2) Big inner space, it is convenient for placing tools and fixtures.
3) It is equipped with electric focusing mechanism, digital scale reading display, regulating switch for laser parameters, it operates more smoothly.
4) It is easy to replace dust screen, clean working area and recycle welding slag.
5) With the LED ring-shaped astral lamp which can be highlighted and microscope imported from Germany, the observation on welding position is much clearer.
6) More precise light spot, it meets the requirement of precision welding.
Specification:
| Model No. | RL-Y100 | RL-Y150 | RL-Y200 |
| Laser Source | Nd: YAG | ||
| Laser Wavelength | 1064nm | ||
| Rated Power | 100W | 150W | 200W |
| Laser Energy | 40J | 60J | 80J |
| Pulse Width | ≤20ms | ||
| Pulse Frequency | ≤50Hz | ||
| Beam Diameter | 0.1-3.0mm | ||
| Power Supply | 220V±10% /50Hz | ||
| Observing System | microscope | ||
| Chamber Illumination | LED lamps | ||
| Parameters Memorization | 10 groups | ||
| Protection Alert | flow alert | ||
| Language Display | Chinese/English | ||
| Shield Gas Supply | One line | ||
| Cooling System | water cooling | ||
| Power Consumption | 4KW | 5KW | 6KW |
| Welding Chamber Dimensions | 300mm*450mm*150mm(L*W*H) | ||
| Machine Dimensions | 920mm*560mm*1220mm (L*W*H) | ||
| Running Environment | 5℃-30℃, 5%-75% humidity | ||
| Net Weight | 70kg | ||
Video
Industry Application:
RL-Y200 machines are widely used in jewelry industry, hardware industry, tool industry, instrument industry, automobile industry, energy industry, building materials industry, model and machinery manufacturing, electrical and electronic industries.
Packaging
We cooperate with many shipping companies who have much experience in transportation.
Standard 3-layer export package:
1. Exterior: plywood package
2. Center: foam
3. Interior: waterproof film
FAQ
Q1: Are you a factory or a trade company ?
A1: We are manufacturing laser machines and we provide perfect OEM and after-sale service.
Q2: How about the machine guarantee?
A2: We generally offer you 1 year guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver an English user manual to you. If you need further help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine and go through every corner to check the accuracy. Machines will not be dispatched until running at least two days continuously to ensure quality.
