20 Watt Fiber Laser Engraver Hand Held Fiber Marking Machine With Jpt Mopa
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiberlaser Lazer Printer With Raycus For Nameplate | Laser Power | 10w 20w 30w 50w |
|---|---|---|---|
| Application Material | Metal And Most Non-Metal | Control Program | Genuine EZCAD Control System Compatible With Win7/8/10 |
| Working voltage | Working Voltage: | Repeated Accuracy | ±0.001mm |
| Cooling Type | Air Cooling | Package | Wooden Case |
| Highlight | 20 Watt Fiber Laser Engraver,Held Fiber Marking Machine,jpt laser engraver |
||
Product Description

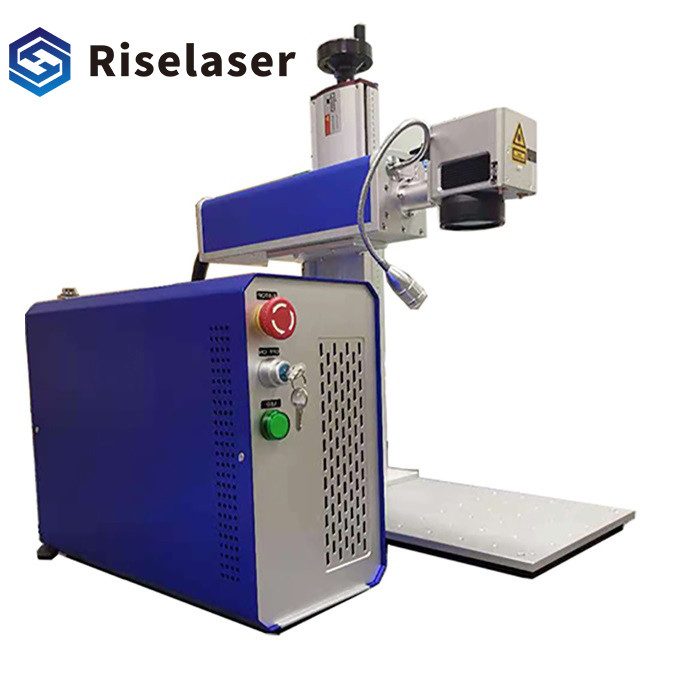

20 Watt Fiber Laser Engraver Hand Held Fiber Marking Machine With Jpt Mopa
Advantage of Hand held fiber marking machine with jpt mopa 20w power source 10w 20w 30w 50w:
Our fiber laser marking machine uses the best quality fiber laser source in the world. We have 20w, 30w and 50w... to choose from. The estimated lifetime of the laser source is about 100,000 hours, which is 10 times that of diode lasers and twice that of other fiber lasers.
We have many different types of fiber laser marking machines, especially portable desktop fiber metal laser marking machines, which are small in size, light in weight, movable and very easy to use. It will be your best choice.
Parameters of Hand held fiber marking machine with jpt mopa 20w power source 10w 20w 30w 50w:
| Laser Type | Fiber Laser Marking Machine |
| Working area | 110*110/150*150/200*200/300*300(mm) |
| Laser power | 10W/20W/30W/50W/100W |
| Laser wavelength | 1060nm |
| Beam quality | m²<1.5 |
| Application | metal and partial nonmetal |
| Marking Speed | 7000mm/second |
| Repeated Precision | ±0.003mm |
| Working voltage | 220V / or 110V (+-10%) |
| Cooling Mode | Air Cooling |
| Supported graphic formats | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Controlling software | EZCAD |
| Working temperature | 15°C-45°C |
| Optional parts | Rotary Device, Lift platform, other customized Automation |
| Warranty | 2 year |
Applicable materials of Hand held fiber marking machine with jpt mopa 20w power source 10w 20w 30w 50w:
1. All metals, some non-metallic materials are marked, such as nylon, ABS, PVC, PES...
2. Applicable industries electronic components, integrated circuits, mobile communications, medical equipment, glasses and watches,
Jewelry, auto parts, plastic buttons...
Applications of Hand held fiber marking machine with jpt mopa 20w power source 10w 20w 30w 50w:
Fiber laser marking machine can be used to mark logos, serial numbers, barcodes and others on any metal material (such as stainless steel, titanium, brass, gold, silver, aluminum, aluminum and many engineering plastic products, such as mobile phone cases and chargers) Exquisite patterns, consumption of electronic equipment shells, etc.
Packed with plywood case
