Mini Metal Fiber Laser Marking Machine 30w Fiber Laser Engraver
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 20w, 30w, 50w, 70w | Product Name | Mini Fiber Laser Marking Machine |
|---|---|---|---|
| Fiber Laser Type | Pulse Fiber Laser | Max Single Pulse Energy | 1mJ |
| Repeated Accuracy | ±0.001mm | Pulse Duration | 90-130ns |
| Application Material | Metal And Non-Metal | Protable | Yes |
| Warranty | 1 Year | ||
| Highlight | Metal Fiber Laser Marking Machine,1mJ Fiber Laser Marking Machine,30w Fiber Laser Engraver |
||
Product Description

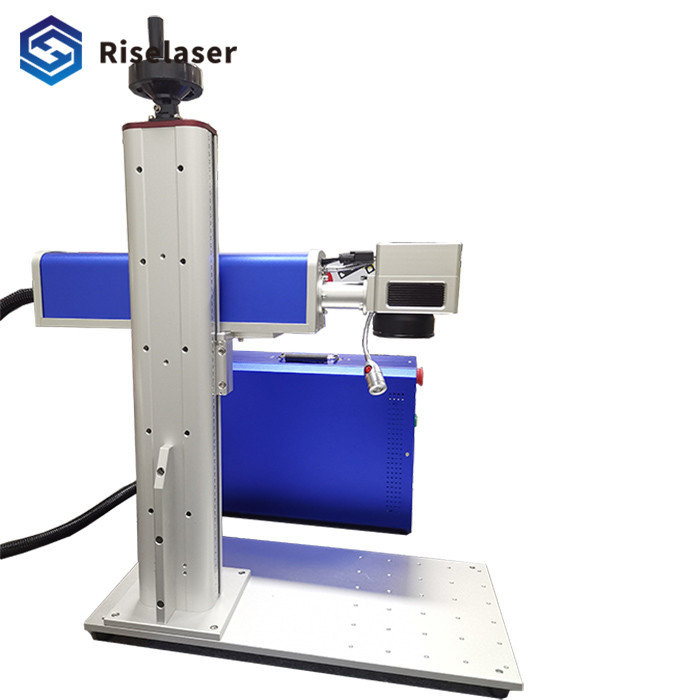

Mini Metal Fiber Laser Marking Machine 30w Fiber Laser Engraver
The term "laser marking" is also used as a general term to cover a wide range of surface treatment techniques including printing, thermal imprinting and laser bonding. The machines for laser engraving and laser marking are largely the same, and they will differ in power.
specification of marking engraving mini fiber laser marking machine
| Model | RL-PS series | Laser Power | 10W 20W 30W 50W 70w | |
| Laser Wavelength | 1064nm±10nm | Q-frequency | 20KHz~100KHz | |
| Divergence | 0.3mard | Marking Range | 110*110mm /200*200mm | |
| Mimum Line Width | 0.01mm | Minimum Character | 0.1mm | |
| Marking Speed | 10000mm/s | Marking Depth | 0~0.5mm | |
| Engraving Line Speed | ≤7000mm/s | Repeatability Accuracy | ±0.001mm | |
| Beam Quality | M2:1.2~1.8 | Working Voltage | 220V±10%/50Hz/4A | |
| Unit Power | <0.5kw | Laser module life | >100000hours |
Marking samples
How it work
FAQ
Q1: What guarantee is there if the laser marking machine fails?
The machine has a one-year warranty. If it fails, usually, based on customer feedback, our technicians will find out where the problem is. If the problem is caused by a quality failure, other parts except the wearing parts will be replaced free of charge.
Q2: This model is not suitable for me. Do you have more models available?
Yes, we can provide many models. Some parts can also be replaced according to your needs. If the above is the most popular model can not meet your requirements. Please tell us your needs, we have the ability to make special according to your requirements!
Q3: How about the documents after delivery?
After shipment, we will send all original documents to you via DHL, including packing list, commercial invoice, bill of lading and other proofs required by the customer.
Q4: How long is the delivery time of the laser marking machine?
For standard machines, it will be 7-10 days; for non-standard machines and machines customized according to customer specific requirements, it will be 15 to 30 days.
