50w Jpt Fiber Laser Engraver For Metal Non Metallic Material Marking
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Laser Engraver | Control Board | JCZ |
|---|---|---|---|
| Support | Windows XP,7,8,10 | Cnc Or Not | Yes |
| Graphic Format Supported | DXF,PLT,AI,DWG,BMP | Control Software | Cypcut,Perfect Laser Software,CorelDraw,ruida,professional Cutting Software |
| Highlight | 50w Jpt Fiber Laser Engraver,Jpt Fiber Laser Engraver For Metal,jpt fiber laser 50w |
||
Product Description

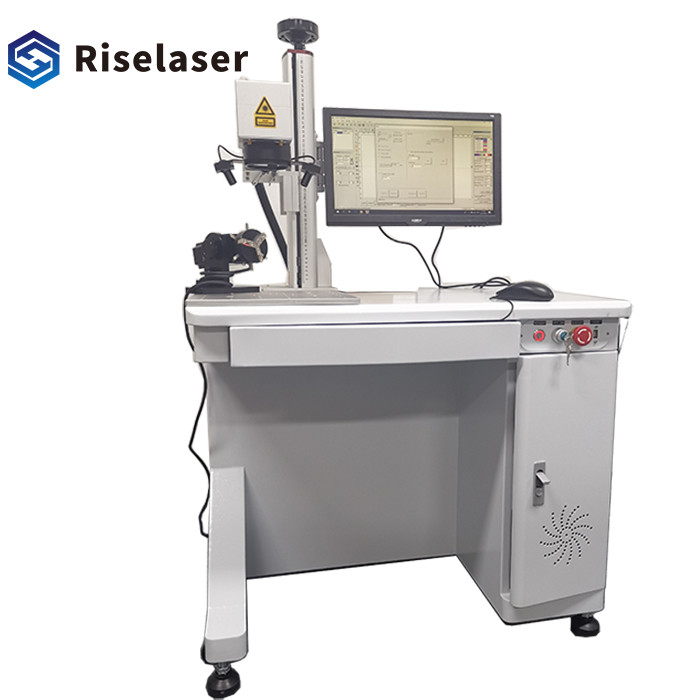

50w Jpt Fiber Laser Engraver For Metal Non Metallic Material Marking
Products discription
1. Treatment without contact, there are no damage for products, without tool clothing and good quality of marking
2. Support power: 20W 30W 50W 60W 80W 100W.
3. When the mop fiber laser source, the laser can be marked in the colorful color of stainless steel and titanium, engraved in an anodal alumina, steel and plastic.
4. When the power is greater than 30 W 50W 60W, the fiber laser can also record and cut the jewel metal, such as gold, silver, titanium, steel, brass, etc.
5. You can mark all the plains, paint, powder coatings, anodized or plated or metal surface, date, text, serial number, logo of the company, icon, symbol, barcode, matrix, matrix and Vector source. Whether they are flat surfaces, curves or cylinders.
Products details
Parameters
| Laser Source | Fiber Laser |
| Output Power | 20W / 30W / 50W / 60W / 70W /100W |
| Wavelength | 1060nm |
| Repeat Frequency | 10khz--100khz |
| Pulse Energy | 2mJ |
| Laser Class | IV |
| Resolution | 18μ |
| Repeatability | 50μ |
| Marking Scope | 110mmx 110mm / 175mmx 175mm (optional) / 210mm*210mm / 300mm*300mm |
| Linear Speed | 800 character/ s |
| Marking Linear Speed | ≤12,000mm/s |
| Marking Depth | Max. 1.0- 1.5mm (hard steel) |
| Min. Line Width | 0.012mm |
| Min. Character Size | 0.15mm |
| Repeat Accuracy | ±0.003mm |
| Input Power | 0.5kw |
| Electrical Source | 220V // 50/60Hz |
Package
1.Plywood box
2. The wooden box is free from fumigation and suitable by sea and by air.
3. Custom packing according to customer's requirement.
