1064nm 20w Laser Engraving Machine Integrate Desktop Laser Marker
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Consumption Of The Whole Machine | ≤ 160W | Laser Power | 19.5±0.5W |
|---|---|---|---|
| Laser Wavelength | 1064nm | Beam Quality | M2 ＜ 1.4 |
| Modulation Frequency | 30-60khz | Marking Range | 110 (F=160MM) |
| Highlight | 20w laser engraving machine,1064nm laser engraving machine,Integrate Desktop Laser Marker |
||
Product Description

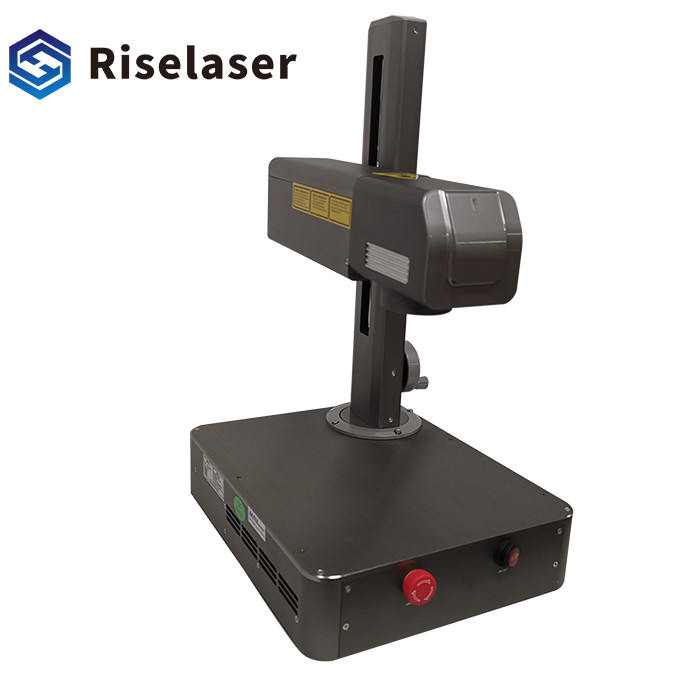

1064nm 20w Laser Engraving Machine Integrate Desktop Laser Marker
Advantages of Integrate fiber laser marking engraving machine 20w
1 Highly integrated fiber laser, 8mm high-speed galvanometer, power supply, Intel industrial computer and original marking system;
2 The marking machine is small in size, similar in length and width to a laptop computer, and weighs only 10 kilograms;
3 Work quickly and accurately, with red light focus preview, laser engraving speed 8000mm/s;
4 The operation is simple and easy to learn, it can realize 360° rotating marking, Z direction and Y direction laser marking, to meet the marking requirements of different sizes and different heights of workpieces;
5 According to needs, other accessories can be provided, such as rotating table
Product data of integrate fiber laser marking engraving machine 20w
| Marking speed | 600-1000 characters/minute |
| Minimum line width | 0.02mm |
| Minimum character | 0.15mm |
| Repeat accuracy | ±0.002mm |
| Cooling method | Air cooling |
| The use environment is clean and dust-free or less dusty | clean and dust-free or less dusty |
| Working temperature | 10-35℃ |
| Power consumption of the whole machine | ≤ 160W |
| Power demand | AC220V±10%, 50HZ |
Marking samples
FAQ
Q1: What should I do if the machine has a problem in my place?
If the machine has any problems under "normal use", we can send you free parts during the warranty period.
Q2: This model is not suitable for me. Do you have more models available?
Yes, we can provide many models. You only need to provide your application and requirements
Q3: What guarantee is there if the laser marking machine fails?
The machine has a one-year warranty. If it fails, usually, based on customer feedback, our technicians will find out the problem. If the problem is caused by a quality failure, other parts except the wearing parts will be replaced free of charge.
Q4: How about the documents after delivery?
After shipment, we will send all original documents to you via DHL, including packing list, commercial invoice, bill of lading and other proofs required by the customer.
Q5: How long is the delivery time?
For standard machines, it will be 7-10 days; for non-standard machines and machines customized according to customer specific requirements, it will be 15 to 30 days.
