CE Approved Jewellery Laser Welding Machine 80w With Single Lamp
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wavelength | 1064 Nm | MAX. Output Power | 80W |
|---|---|---|---|
| Pump Source | Single Lamp | Pulse Width | 0.1 - 20 Ms |
| Pulse Frequency | 50Hz / 60Hz | Aiming & Positioning | Microscope + CCD Camera System (7 Inch Panel) |
| Highlight | CE Jewellery Laser Welding Machine,80w Laser Welding Machine,Laser Welding Machine 80w |
||
Product Description

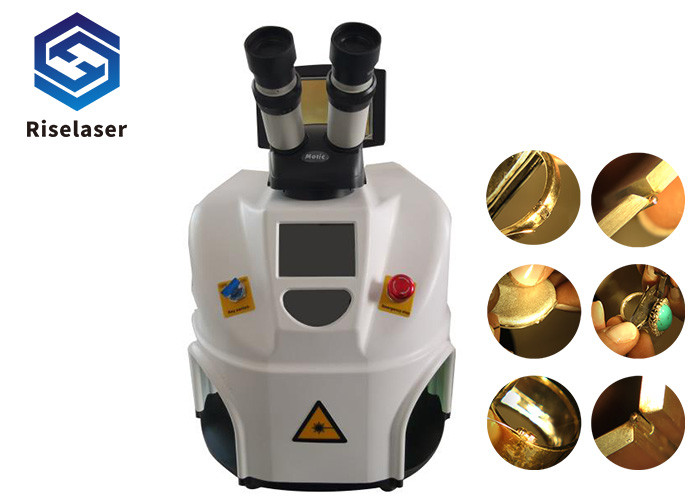

CE Approved Jewellery Laser Welding Machine 80w With Single Lamp
Feature of CE approved laser welding machine for jewellery 80w:
1. Integrated, built-in air cooling, water circulation cooling system, saving power and space;
2. Intelligent: current closed loop automatic control, automatic wind speed adjustment, multi-level fault protection, stable accuracy
3. Intelligent multi-language control system, integrated control and monitoring functions, easy to operate, and the machine can be controlled after 5 minutes of training.
4. New and exclusive patented laser cavity and optical path, high electro-optical conversion efficiency, convenient maintenance, and can replace xenon lamp.
Data of CE approved laser welding machine for jewellery 80w
| Model | RL-Y80 |
| Wavelength | 1064 nm |
| MAX. Output Power | 80W |
| MAX. Pulse Energy | 60J |
| Pump Source | Single Lamp |
| Pulse Width | 0.1 - 20 ms |
| Pulse Frequency | 50Hz / 60Hz |
| Aiming & Positioning | microscope + CCD camera system (7 inch panel) |
| Host Power Consumption | ≤5KW |
| Electricity Demand | AC220V±5% / 50Hz / 60Hz |
| Cooling System | Water Cooling + Air Cooling |
| Machine Size | L:510mm W:295mm H:420mm |
| Packing Size | L:630mm W:480mm H:500mm |
| Net Weight | 29KG |
| Gross Weight | 43KG |
Application of CE approved laser welding machine for jewellery 80w
CE approved laser welding machine for jewellery 80w laser welding machine is a product specially used for jewelry laser welding,
mainly used for holes and spot welding blisters of gold, bronze, stainless steel and silver jewelry. This laser welding machine is widely used in the fields of jewelry, dentistry, advertising signs, and has a good market prospect.
Video
FAQ
Q1: What’s delivery time?
A: As per your requirement, we will suggest the suitable machine. The exact delivery time as per machine.
Q2: What payment terms can you accept?
A: Any payment is possible for us, like T/T, E-Checking, Master Card, Cash etc.
Q3: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
