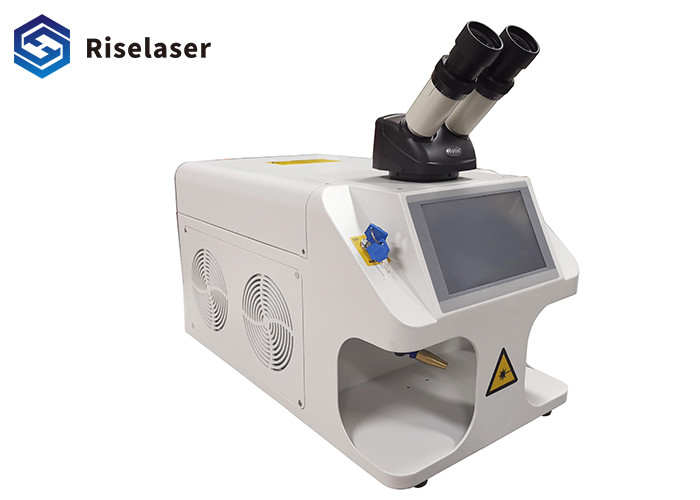

60w Jewelry Laser Welding Machine With With CCD Jewelry Microscope
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Model | 60w Welding Laser Machine | Max Laser Power | 60W |
|---|---|---|---|
| Laser Wavelength | 1064nm | Max Power Of Single Impulse | 40J |
| Cooling System Dimensions | Water Cooling + Air Cooling | Consumable | Xenon Lamp,Filter Element,Protective Lens,Argon |
| Highlight | 60w Jewelry Laser Welding Machine,1064nm Jewelry Laser Welding Machine,60w jewelry laser welder |
||
Product Description
60w Jewelry Laser Welding Machine With With CCD Jewelry Microscope
60w welding laser machine Features:
1. The jewelry laser welding machine has high precision (0.1-2mm spot size) welding method, and the laser beam is very thin.
2. The laser speed is fast, and the frequency can reach 50HZ.
3. Jewelry, spectacle frames, molds, teeth need laser welding, and the welding is beautiful
joint.
4. Jewelry laser welding machine is widely used in various metals, such as gold, silver, bronze, aluminum,
Steel and titanium!
5. Laser welding is a new product, buying this product can help you win the advanced cleaning market!
6. The power supply we produce has great advantages in price and after-sales service.
7. Engineer onsite service.
60w welding laser machine technical data:
| Machine model | 60w welding laser machine |
| Max laser power | 60w |
| Laser wavelength | 1064nm |
| Max power of single impulse | 40J |
| Welding depth | 0.1-3.0mm |
| Pulse width | 0.1-20ms |
| Laser welding frequency | 0-50Hz |
| Adjustable scope of laser spot | 0.2-3.0mm |
| Power Consumption | ≤6KW |
| Cooling system dimensions | Water cooling |
| Observation system | 10X Microscope or HD CCD |
| Power required | 220V±10%/50Hz |
| Consumable | Xenon lamp,Filter element,Protective lens,Argon |
| Working temperature | 55°F(13°C)-82°F(28°C) |
| Working Humidity | 5%-75% |
Samples
60w welding laser machine Video
About our services:
1. One-year warranty, the machine has problems during the warranty period, and the main parts (except consumables) are replaced free of charge (some parts are repaired).
2. Free maintenance for life.
3. Free training courses in our factory.
4. 24 hours a day online service and email, free technical support. We will reply you within 24 hours after receiving your machine problem.
5. The machine has been tested and adjusted before shipment. We will take photos of the machine and make images of the machine work for you. After getting your consent, we will book the boat.
6. If the customer pays, provide on-site technical services (we have professional engineers to provide machine installation, commissioning and maintenance).
7. If you encounter any problems during use, you need our technicians to determine where the problem is and help you solve it. We can provide team viewers and online live broadcast services until you solve all the problems.
