YAG Jewelry Laser Welding Machine 80W 120W 200W Pollution Free
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Laser Welder | Key Selling Points | Easy To Operate |
|---|---|---|---|
| Usage | Jewelry Welding | Applicable Industries | Building Material Shops, Jewelry Casting Industry |
| Machinery Test | Provided | ||
| Highlight | YAG Jewelry Laser Welding Machine,200W Jewelry Laser Welding Machine,120W jewelry laser welder |
||
Product Description

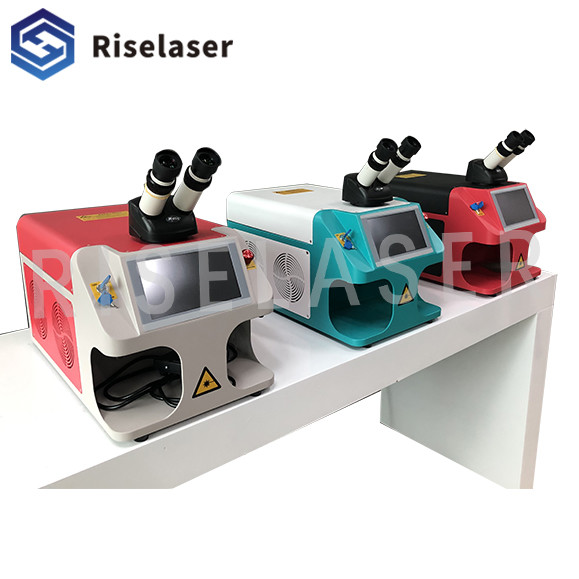

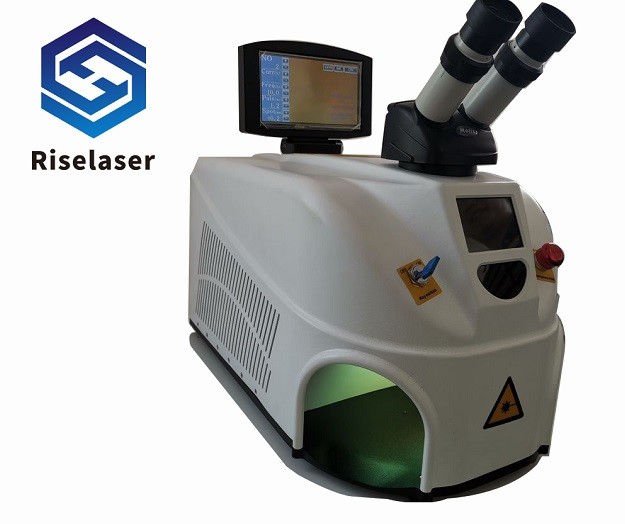

YAG Jewelry Laser Welding Machine 80W 120W 200W Pollution Free
YAG Laser Spot Welding & Laser spot Seam Welding Advantage
1. Special aircraft for jewelry industry
2. Non-contact, small deformation of raw materials
3. Energy density concentration has little heat impact, and after welding, there is no need for secondary treatment (polishing and grinding) for precision welding, and the welding seam is beautiful and smooth
4. Environmental friendly and pollution-free
5. High machining accuracy
6. Small size
7. Stable performance and mature industry
8. High cost performance
9. Less maintenance, cheaper consumables
10. Low power consumption, easy to handle (machine 200kg)
YAG Laser Spot Welding & Laser spot Seam Welding Application
1.Suitable for welding industry: mainly used in gold, silver, jewelry industry.
2.Materials suitable for welding: stainless steel, iron, copper, aluminum, gold, silver, zinc and some alloy materials, the thicker the material, the higher the laser power required (metal).
3.Suitable products: bracelets, rings, necklaces, earrings, pendants, stainless steel jewelry.
YAG Laser Spot Welding & Laser spot Seam Welding parameter
| Model | RL-Y80 | |
| Laser Type | 1064nm YAG Laser | |
| Nominal Laser Power | 80W | |
| Beam Diameter | 0.5-3.0mm | |
| Pulse Width | 0.1-15ms | |
| Frequency | 1.0~10.0Hz Continuously Adjustable | |
| Maximum Laser Pulse Energy | 50J | |
| Host Power Consumption | ≤2.5KW | |
| Cooling System | Build-in Water Cooling | |
| Pump Source | Single Xenon lamp | |
| Aiming and Positioning | Microscope + CCD Camera System | |
| Operating Mode | Touch Control | |
| Display Touch Screen | 10X high quality colorful CCD | |
| Operating Language | English, Turkish, Korean, Arabic | |
| Electrical Connection Values | AC 110V/220V ± 5%, 50HZ / 60HZ | |
| Machine Dimension | L53CM×W31CM×H45CM | |
| Wooden Package Dimension | L63CM*W48CM*H50CM | |
| Machine Net Weight | 38KG | |
| Operating Environmental Temperature | ≤45℃ | |
| Humidity | < 90% non-condensing | |
| Application | Welding and repairing all kinds of jewelry and metal parts | |
