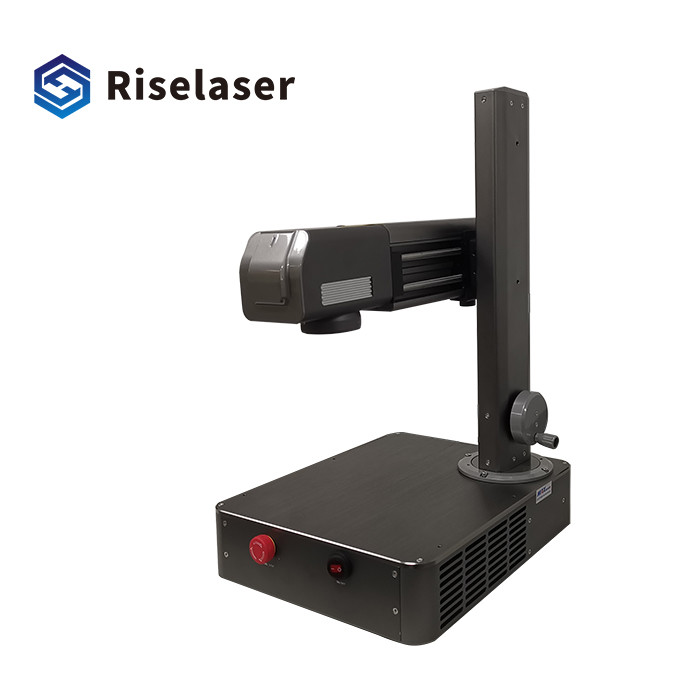

Portable 20W Fiber Laser Marking Machine With Air Cooking Easy Install Opeartion
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Engraver Laser Portable | Laser Source | Max Or Raycus |
|---|---|---|---|
| Model | RL-20P/10P | Marking Speed | 600-1000characters/Min |
| Control Software | MAXCAD | Beam Quality | M2 < 1.4 |
| Highlight | 20W Fiber Laser Marking Machine,Portable Fiber Laser Marking Machine,20w fiber laser engraving machine |
||
Product Description
Portable 20W Fiber Laser Marking Machine With Air Cooking Easy Install Opeartion
Engraver Laser Portable 20W With Air Cooking Easy Install And Opeartion description:
- It can mark metal materials and some non-metal materials, which is especially suitable for some fields that require more precision and higher finish.
- This machine is widely used in electronic separation components, integrated circuits, electrical engineering circuits, mobile communications, hardware, tools, kitchenware, tool accessories, precision instruments, glasses and watches, computer keyboards, jewelry accessories, plastic keys, hot water accessories, sanitary ware , PVC pipes, medical equipment and packaging containers.
Engraver Laser Portable Specification
| Optional Model | RL-10P | RL-20P |
| Laser power | 9.5±0.5 W | 19.5±0.5 W |
| Laser source | Max or Raycus | |
| Laser wavelength | 1064 nm | |
| Beam quality | M2 < 1.4 | |
| Modulation frequency | 20-50 khz | 30-60 khz |
| Marking range | 100/200 mm | |
| Carving speed | 0-8000 mm/s | |
| Focusing mode | Support for automation or manual | |
| Marking speed | 600-1000characters/Min | |
| Minimum line width | 0.02 mm | |
| Minimum characters | 0.15 mm | |
| Repeatability accuracy | ±0.002 mm | |
| Cooling method | Air Cooling | |
| Use environment | IP4 Clean, dustless or less dusty | |
| control software | MAXCAD | |
| Laser indicator | Double Red dot pointer | |
| working temperature | 10-35 ℃ | |
| Power consumption of the whole machine | ≤ 100 W | ≤ 160 W |
| Electricity demand | AC220V±10%,50 HZ | |
Engraver Laser Portable samples
Engraver Laser Portable Video
Engraver Laser Portable FAQ
Q1: What are the consumables for the laser marking machine?
A: It has no consumables. This is very economical and cost-effective.
Q2: What is packaging and will it protect the product?
A: We have 3 layers of packaging. The exterior uses a non-fumigation wooden box. In the middle of the machine, the machine is covered with foam to prevent the machine from shaking. For the inner layer, the machine is covered with a waterproof plastic film.
Q3: What is the delivery time?
A: Normally, the delivery time is within 5 working days after receiving the payment.
