80KHz Co2 Laser Marking Machine With High Speed Galvanometer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Laser Marking | Laser Power | 30w/60w |
|---|---|---|---|
| Marking Area | 110mm*110mm Or Others | Beam Diameter | 2.5 Mm + 0.5 Mm |
| Repeat frequency | 20KHz-80KHz | Warranty | 1 Year |
| Highlight | 80KHz Co2 Laser Marking Machine,20KHz Co2 Laser Marking Machine,20KHz 50w laser engraving machine |
||
Product Description

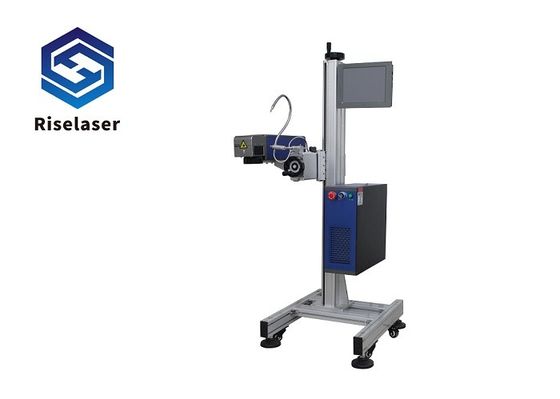

80KHz Co2 Laser Marking Machine With High Speed Galvanometer
CO2 laser marking machine adopts CO2 radio frequency laser generator and high-speed galvanometer scanning system. Using high-quality optical devices, high-stability laser generator, fully automatic control system. The machine system has high working accuracy, fast speed, and very stable performance. It can work continuously for a long time and can be directly applied to mass online processing lines.
CO2 portable laser marking machine features
1. The radio frequency metal laser generator has a service life of 20,000 hours.
2. Red light preview, the marking position is clear at a glance.
3. High-speed galvanometer scanner with fast speed, high precision and stable function.
4. A full set of imported optical lenses, low power consumption and good focusing performance.
5. Automatic number skipping and counting function.
6. Red light preview, clear marking position;
7. The American radio frequency metal laser generator has a service life of 20,000 hours;
8. High-speed galvanometer scanner, fast speed, high precision, stable function;
9. A full set of imported optical lenses, low power consumption, good focusing performance;
10. Automatic number skipping and counting function;
Machine details
Video shows
CO2 portable laser marking machine Technical data:
| Item Name | Parameter |
| Model | SL-CO2 30W |
| Laser Power | 30W / 60W |
| Laser wavelength | 10.64 μm |
| Laser type | America SYNRAD RF metal laser |
| Beam diameter | 2.5 mm + 0.5 mm |
| Repeat frequency | 20KHz-80KHz |
| Min linear width | 0.01mm |
| Repeat Positioning Accuracy | 0.03mm |
| Marking area | 110×110mm |
| Rated power consumption | 900W |
| Operating voltage | 110V- 240V/50-60 Hz/15A |
| Cooling | Air Cooling |
| Packing size | 98*55*59CM (L*W*H) |
| Gross weight | 65 KG |
| Package | Standard export wooden case |
FAQ
How to choose a suitable fly line marking system?
1. What do you want to mark? Metal or non-metal
Fiber lasers are used to mark metal parts, while CO2 lasers are used to mark non-metal parts.
2. What is your marked area?
Usually our marking area is 70mm * 70mm-300mm * 300mm
3. Do you want to mark on a plane or curved surface?
The standard model can be marked on a flat surface, if you want to mark on a curved surface, you need a rotating fixture ($200)
4. What is your marking depth?
All laser marking depths are less than 1mm, but if you continue to mark and mark, the depth will be deeper.
