6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating

  • 6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-20H
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Laser Marking Machine Portable Laser Wavelength 1064±5nm
Laser Source MAX 20W Marking Range 80*80mm
Engraving Depth ≤1mm (depending On Power And Time) Engraving Speed ≤10000mm/s
Highlight

1064nm Fiber Laser Marking Machine

,

6KG Fiber Laser Marking Machine

,

1064nm fiber marking laser machine
Leave a Message
Product Description

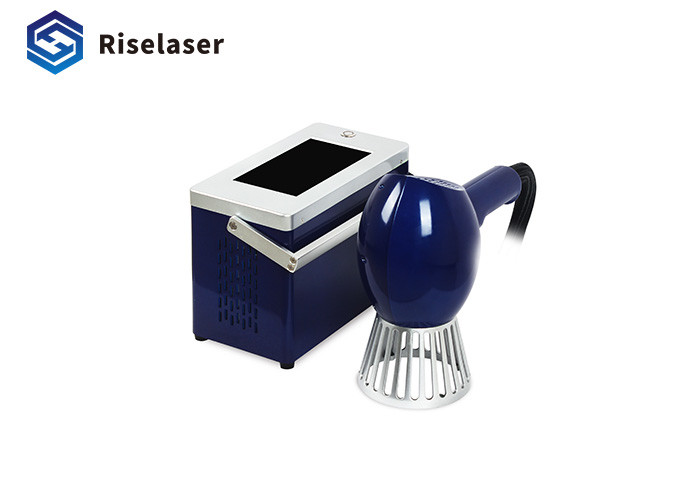

6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating



6KG weight laser marking machine portable wireless marking with simple operating



Features



Wireless marking
● Configure 24V lithium battery to achieve complete wireless
● Under normal use, it can work continuously for 6-8 hours, with strong endurance
● Automatic start-stop design, automatic shutdown after 60 seconds of standby, saving power and reducing consumption



100% portable
● The weight of the whole machine is 6KG, the marking head is only 1.25KG, it is small and light, and can be printed on the go
● Especially suitable for marking large, heavy or difficult-to-process workpieces
● Special suitcase for easy transportation



High-quality laser source
● Using advanced MAX fiber 20W laser source
● High electro-optical conversion efficiency, good output beam quality and high reliability
● It can be flexibly applied to non-metallic materials and some non-metallic materials


Simple operating system
● Riselaser independent coding system, powerful function, simple operation
● Support text, pattern, two-dimensional code, barcode, serial number, graphics, etc.
● The host adopts linux system, which is safe, stable and reliable

6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating 06KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating 1





Specification of laser marking machine 20w



Model RL-20H









Laser parameters

 Laser Source MAX 20W
Output power 20W
Beam quality M22 ≤1.4
Pulse repetition frequency 27-60 kHz
Laser wavelength 1064±5
Output power stability ＜3%
Design life About 100,000 working hours (non-lifetime)







Optical properties

 Marking range 80mm
Engraving depth ≤1mm (depending on power and time)
Engraving speed ≤10000mm/s
Repeat accuracy ±0.002
Minimum marking line width 0. 1mm
Minimum character height 0.15mm



Use environment

 Battery life It can work for 6-8 hours under normal use
cooling method Built-in air cooling
System power supply 500W / 100-240V / 50/60Hz





Other parameters

 Operating system linux operating system
File format The software supports text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input)
Dimensions Control chassis: 250X135X195 mm Marking head: 250X120X260 mm
Total Weight Machine 6kg, marking head 1.25kg



​Application of laser marking machine 20w

6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating 2





The whole machine weighs 6KG and is light and portable.
Powerful and reliable, the weight of the whole machine is 6 kg, and its marking head is only 1.25 kg. It has an ergonomic grip, comfortable to hold and easy to operate.

6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating 3


Advanced fiber 20W laser source
Use MAX's 20W fiber laser, the spot quality is good, and the output optical power is stable
Can be flexibly applied to metallic materials and some non-metallic materials

6KG 1064nm Fiber Laser Marking Machine Wireless Simple Operating 4



Video of laser marking machine 20w
