1000w Handheld Laser Welding Machine With Auto Wire Feeder WXS Welding Head
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Fiber Laser Welding Machine | Laser | 1000w Raycus/Max |
|---|---|---|---|
| Power Supply | 220V±10%/50Hz / 380V±10%/50Hz | Cooling System | 18 Litres |
| Water Tank Capacity | CW | Laser Power | 1000W 1500W 2000W |
| Welding Head | Wobble Weld Head | ||
| Highlight | 1000w Handheld Laser Welding Machine,18 litres Handheld Laser Welding Machine,18 litres portable laser welder |
||
Product Description

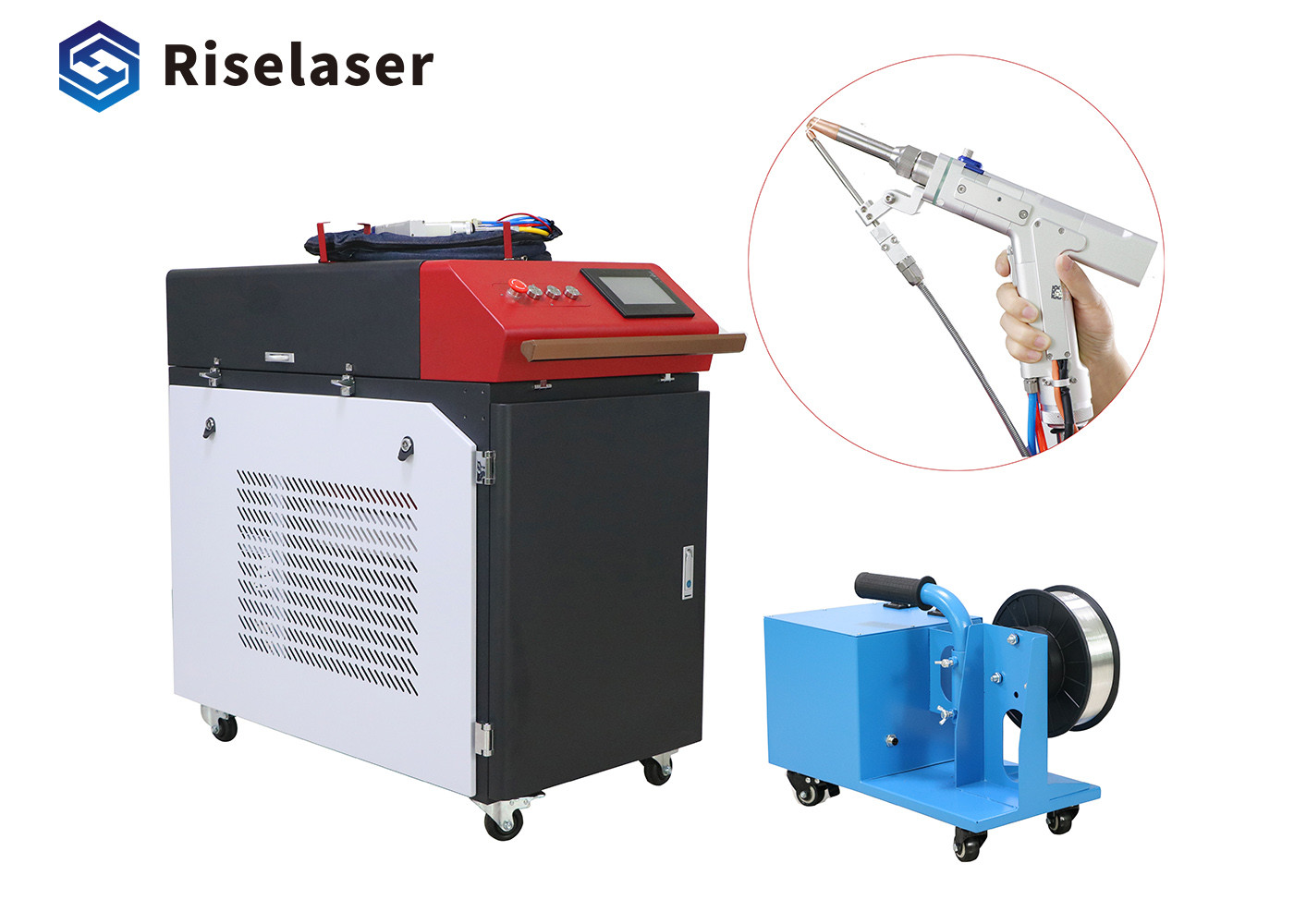

1000w Handheld Laser Welding Machine With Auto Wire Feeder WXS Welding Head
Performance characteristics:
It is an ideal choice for continuous welding and seam welding of various metal materials. These 1000W 1500W 2000W fiber lasers with air-cooled compact units are more cost-effective than traditional Nd:YAG lasers because of their >30% wall insertion efficiency and maintenance-free operation. They are widely used in aviation, aerospace, sporting goods, Jewelry, golf heads, medical equipment, aluminum dentures, instrumentation, electronics, machining, automobiles and other industries, especially suitable for gold and silver jewelry repair holes, spot welds, inlays and claw feet per unit area.
Applications are widely used in aviation, aerospace, sporting goods, jewelry, golf heads, medical equipment, aluminum dentures, instrumentation, electronics, machining, automotive and other industries, especially suitable for repairing holes, spot welding, and inlays of gold and silver jewelry Pieces and claw feet per unit area, such as welding.
Fiber laser welding machine Parameter
| NO. | Item | Technical |
| 1 | Product Name | Fiber handheld laser welding machine |
| 2 | Laser source wavelength | 1070 /1080 nm |
| 3 | Laser source brand | Raycus / Max /IPG /other brand |
| 4 | Laser power option | 1000W /1500W /2000W |
| 5 | Power supply | Single phase 220V±10% 50/60Hz |
| triple phase 380V±10% 50/60Hz | ||
| 6 | Weld head | Wobble(Magnetic levitation) |
| 7 | Welding head weigt | 0.8kg |
| 8 | Control system | Riselaser System |
| 9 | Weld mode system | CW/ PWM / Argon Arc/ QCW |
| 10 | Weld speed | 0-120mm/s |
| 11 | Weld method | Vertical /splicing/overlap/angle |
| 12 | Weld width | 0 -5mm |
| 13 | Cooling system | water chiller (built-in) |
| 14 | Water tank capacity | 18 litres |
| 15 | Water quality require | distilled water or purified water |
| 16 | Auxiliary gas | Argon or Nitrogen gas |
| 17 | Power Consumption | protection lens,brass nozzle |
| 18 | Fiber optical length | 10m |
| 19 | Allowable air pressure range | 0.1 to 0.3 MPa or 1 to 3 bar |
| 20 | Wire feeder | option part |
| 21 | Support wire | 0.8mm 1.0mm 1.2mm 1.6mm |
| 24 | lifetime | 100,000 hours |
| 25 | Wattanty | 1 years |
| 26 | Machine Weight | 315kg |
| 27 | Machine dimension | 600×1200×1200mm |
| 28 | Package Weight | 335kg |
| 29 | Package Size | 80X140X140cm |
Fiber laser welding machine Video
Application
The high power fiber laser welding machine is used in the welding process of gears, bearings, door handles, kettles, faucets, roof components, metal plates, sensors, and electronics components.
FAQ
Q :What are the primary products of your company?
A : Laser welding machine, laser cutting machine, laser marking machine and laser engraving machine.
Q : How to do control the quality when you produce laser equipment?
A : We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser machines. In addition, all components are strictly inspected in accordance with international standards before they are put into production.
Q : How can I know your machine is designed for my product?
A : You can send us samples of your product and we test it on machine.
Q : How long is the delivery time?
A : The laser machines will be delivered to you within 1-2 weeks after the order is confirmed.
Q : Do you have a CE/ISO certificate?
A : Yes.
Q : If we do not know to use the machine, can you teach us?
A : Yes, we will, if you come to China, we will offer you free training until you can use machine freely. During installation, we will have our professional engineer to your country to train your stuff to use it.
Q : When the machine can't work well, what should I do?
A : 1. The engineer is online for 24-hours, they can check the problems and then give you solution way very soon.
2. All our machines have one-year warranty. If there is any problem, we can offer replacement parts for free.
3. Operation CD and manual will be offered along with machine,ensuring you can operate the machine easily.
