1064nm Handheld Fiber Laser Welding Machine For Stainless Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Laser Welding Machine For Stainless Steel | Laser | 1500w, 2000w, 1000w |
|---|---|---|---|
| Wavelength | 1064nm Laser Soldering | Working Mode | CW |
| Welding Depth | ≤2.0 Mm | Fiber Core Diameter | Water Cooling |
| Application Material | Aluminum Copper SS | ||
| Highlight | 1064nm Handheld Fiber Laser Welding Machine,1500w Handheld Fiber Laser Welding Machine,1064nm hand held welding machine |
||
Product Description

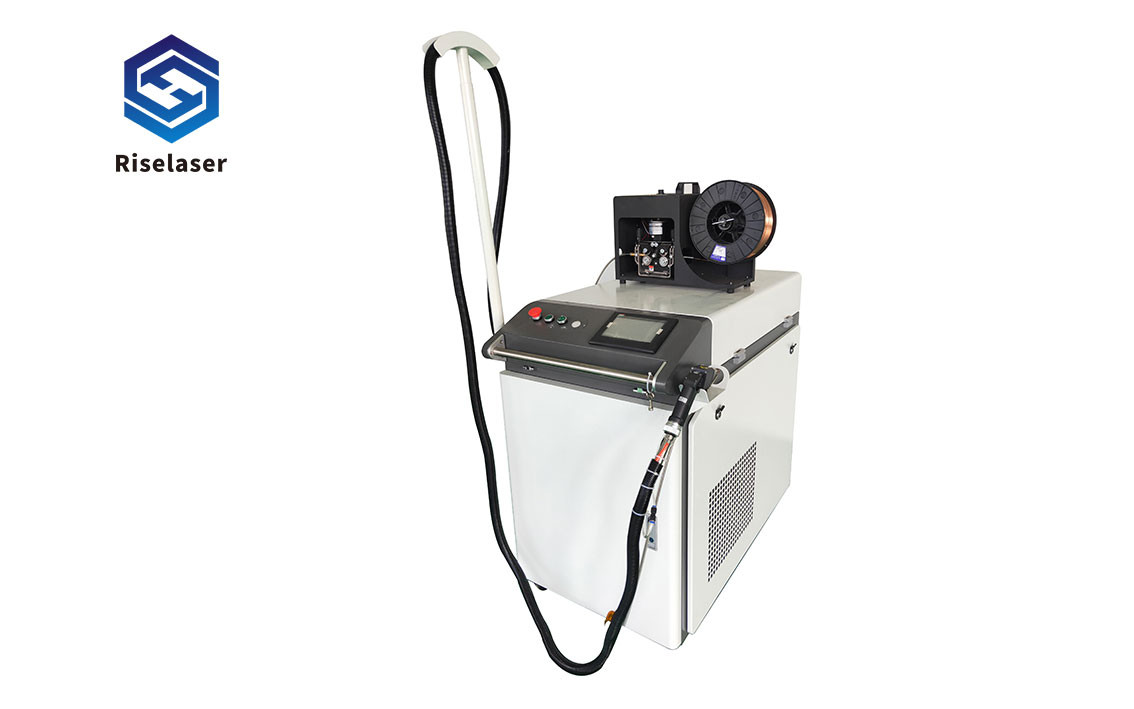

1064nm Handheld Fiber Laser Welding Machine For Stainless Steel

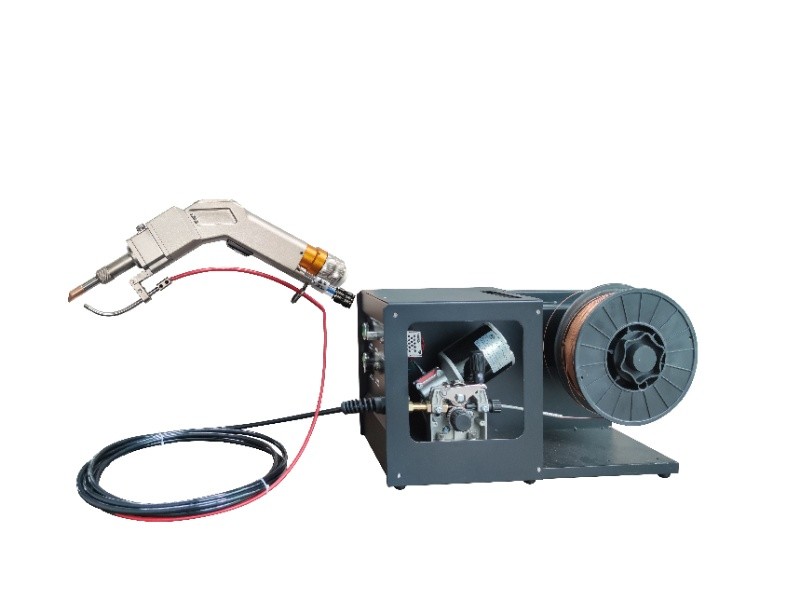

Automatic wire feeder
No consumables, small size, flexible processing, low operation and maintenance costs.
Automatic wire feeding
1. Industrial Design
2. Digital panel, easy to use and operate
3. Powerful and compact
4. Automatic feeding, high efficiency
Laser welding head
Intelligent high frequency swing welding head. It can be widely used in complex and irregular welding processes in metal equipment, stainless steel home furnishing and other industries.
Water cooling device
Fast cooling rate, can weld fine weld structure and good joint performance.
control panel
Xinghong control system, automatic layout optimization, to ensure high-speed operation of the whole machine
Fiber laser welding machine Parameter
| NO. | Item | Technical |
| 1 | Product Name | Fiber handheld laser welding machine |
| 2 | Laser source wavelength | 1070 /1080 nm |
| 3 | Laser source brand | Raycus / Max /IPG /other brand |
| 4 | Laser power option | 1000W /1500W /2000W |
| 5 | Power supply | Single phase 220V±10% 50/60Hz |
| triple phase 380V±10% 50/60Hz | ||
| 6 | Weld head | Wobble(Magnetic levitation) |
| 7 | Welding head weigt | 0.8kg |
| 8 | Control system | Riselaser System |
| 9 | Weld mode system | CW/ PWM / Argon Arc/ QCW |
| 10 | Weld speed | 0-120mm/s |
| 11 | Weld method | Vertical /splicing/overlap/angle |
| 12 | Weld width | 0 -5mm |
| 13 | Cooling system | water chiller (built-in) |
| 14 | Water tank capacity | 18 litres |
| 15 | Water quality require | distilled water or purified water |
| 16 | Auxiliary gas | Argon or Nitrogen gas |
| 17 | Power Consumption | protection lens,brass nozzle |
| 18 | Fiber optical length | 10m |
| 19 | Allowable air pressure range | 0.1 to 0.3 MPa or 1 to 3 bar |
| 20 | Wire feeder | option part |
| 21 | Support wire | 0.8mm 1.0mm 1.2mm 1.6mm |
| 24 | lifetime | 100,000 hours |
| 25 | Wattanty | 1 years |
| 26 | Machine Weight | 315kg |
| 27 | Machine dimension | 600×1200×1200mm |
| 28 | Package Weight | 335kg |
| 29 | Package Size | 80X140X140cm |
Fiber laser welding machine Application range:
Widely used in kitchens, household appliances, advertising, molds, stainless steel doors and windows, handicrafts, household goods, furniture, auto parts and many other industries.
Fiber laser welding machine Video
FAQ
Q1: How to pay?
Wire transfer (T/T) to our official company bank account/Alibaba trade guarantee order/Paypal/Western Union (WU)
Q2: Is it easy to operate this machine for the first time?
The operation of the handheld laser welding machine is simple enough, and there are many machine manuals and guides.
Can provide video, we will send you and teach you how to operate the machine. If you still can't learn how to use it, our technicians can help you through the "Teamviewer" online help software. Or we can talk by phone, email or other contact methods.
Q3: What guarantee is there in case the machine breaks down?
The whole machine is guaranteed for 1 year. If there is any problem, in general, our technicians will find out the problem based on the customer's feedback. Except for wearing parts, free replacement for problems caused by quality problems.
Q4: If there is a problem with the machine where I am, what should I do?
If there is a problem with the machine under "normal use" and within the warranty period, we can send you accessories for free, and our technicians will sincerely help you guide you how to solve the problem!
