1MM Portable Laser Engraving Machine For Jewellery Stainless Steel Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Word | Portable Mini Fiber Laser Marker | Laser Source | Raycus, JPT, Max Or Others |
|---|---|---|---|
| Engraving Area | 110*110mm | Control Software | EZCAD 2.0 |
| Brand Name | Riselaser | Key Selling Points | Protable |
| Engraving Speed | 0-7000mm/s | Engraving Dept | 1MM |
| Applicable Material | Stainless Steel, Silver, Gold, Pt Etc | Cooling Method | Air Cooling |
| Highlight | 1MM Portable Laser Engraving Machine,7000mm/s Portable Laser Engraving Machine,7000mm/s fiber engraving machine |
||
Product Description

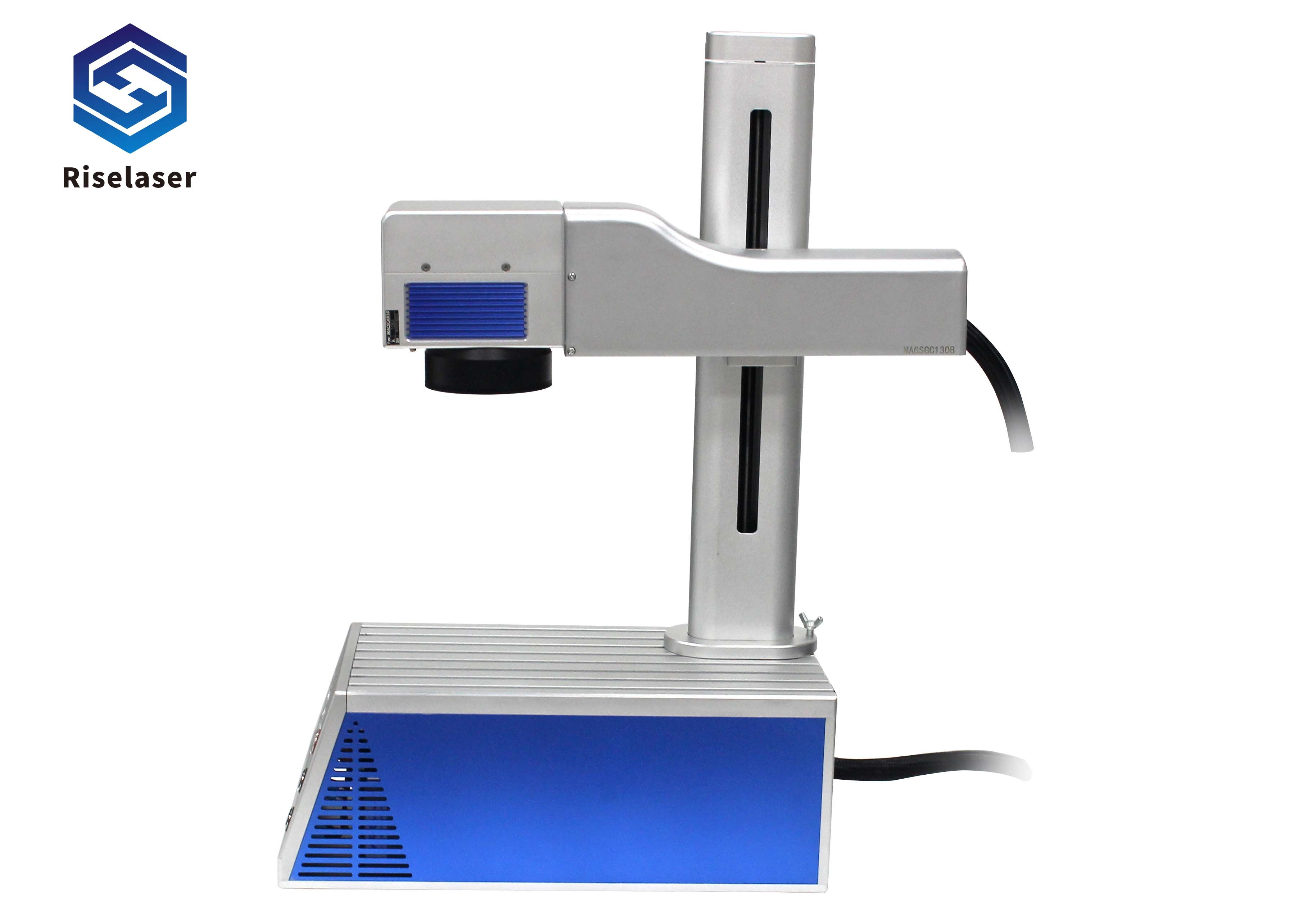

1MM Portable Laser Engraving Machine For Jewellery Stainless Steel Metal
Product Features:
1. Small size, easy to carry, compared with other models, the same working ability, but greatly reduces the transportation cost
2. Very competitive price
3. Using MAX's latest generation 20W/30W fiber laser, powerful and stable performance
4. The machine is easy to install and novices can use it easily
Advantages:
1. Integrated design, this portable fiber laser marking system is small in size, low power consumption, long life, high efficiency, maintenance-free, easy to install and carry. The weight of the machine is only 20KG, and the packaging weight is 25KG.
2. The whole machine is easy to operate, with one-key control on and off.
3. Strong expansion capability, suitable for various working environments, especially suitable for unique processing operations, and convenient for use with other automation equipment.
4. Outstanding laser beam, precise spot, no need to consume anything.
5. The scanning galvanometer is imported with original packaging, small size, fast speed, accurate positioning, simple machine software operation and powerful functions.
Portable mini fiber laser marker Parameters
|
Product Parameters
|
|||
|
Model
|
RL-20P/30P
|
Laser source
|
Raycus JPT IPG
|
|
Laser Type
|
Fiber laser
|
Positioning Way
|
Red light
|
|
Laser power
|
20W 30W
|
Laser Module Life
|
100000 hours
|
|
Weave length
|
1064 nm
|
Cooling Style
|
Air cooling
|
|
Marking area
|
110mm*110mm--1750mm*1750mm
|
Total power
|
≤500W
|
|
Marking speed
|
7000-12000mm/s
|
Operating Voltage
|
220v /110v, 50/60hz
|
|
Marking depth
|
0.01-1mm
|
Supported Windows
|
Windows XP,7,8,10
|
|
Repetition Precison
|
0.01mm
|
Certificate
|
ISO, CE
|
|
Minimum Character
|
0.2 mm
|
Control software
|
EZCAD 2.14.9
|
|
Minimum Line Width
|
0.01mm
|
Supported Format
|
PLT, DXF, DST, AI, SDT, BMP, etc.
|
|
Packaging Dimension
|
68*55*27cm |
Gross weight
|
25kg
|
Engraving material
Mobile phone keyboard, plastic transparent buttons, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses and watches, jewelry, auto parts, luggage buckles, cooking utensils, stainless steel products and other industries
Packing size
Engraving Samples
FAQ:
1.What payment terms are offered to the distributor?
So far we require 100% payment against P/O.
2.What is the shipping terms of your company?
We can accept EXW, FOB and CIF
3.What is the currency of payment?
You can pay by dollar, euro or RMB
4.How long is the warranty period of product?
Warranty time for our machine is 12 months, consumption is not included.
