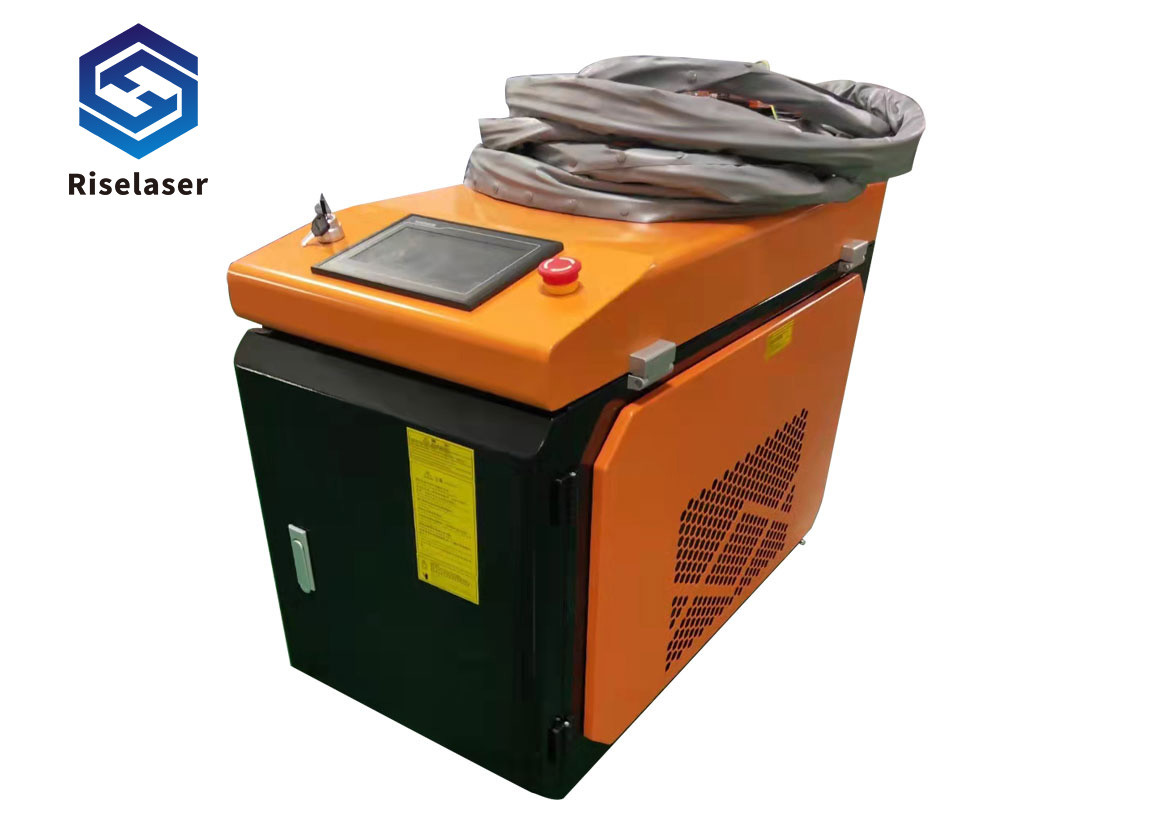

CW Portable Laser Welder 1500W 2000W 3000W Fiber Laser Optic Welder

  • CW Portable Laser Welder 1500W 2000W 3000W Fiber Laser Optic Welder
  • CW Portable Laser Welder 1500W 2000W 3000W Fiber Laser Optic Welder
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1000/1500/2000
Minimum Order Quantity 1 SET
Price US$ 5500-US$9000/SET
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Portable Welder Laser Laser Power 1000w 1500w 2000w
Laser Source Max/RECI Way Of Working Continuous
Cooling System Built-in Water Chiller Water Tank Capacity CW Fiber Laser
Fib1500Wer Wire Length 5M-15M Machine Stability 98%
Highlight

CW Portable Laser Welder

,

1500W Portable Laser Welder

,

1500W Fiber Laser Optic Welder
Leave a Message
Product Description

CW Portable Laser Welder 1000W 1500W 2000W Fiber Laser Optic Welder



Machine advantages



The smallest handheld welding machine on the market
Machine weight: 75KG
Use MAX or RECI laser generator
Built-in chiller, suitable for long-term continuous work
Equipped with automatic ratio feeder, wide welding application, suitable for all kinds of complicated welding work
Small size, easy to transport and carry

CW Portable Laser Welder 1500W 2000W 3000W Fiber Laser Optic Welder 0



Machine Specifications

Model
RL-F1000/1500W
Laser power
1000/1500/2000W
Center wavelength
1070+-5nm
Laser frequency
50Hz-5KHz
Work patterns
Continuous
Electricity demand
AC220V
Output fiber length
5/10/15m (Optional)
Cooling method
Water Cooling
Dimensions
1150*760*1370mm
Weight
75kg
Cooling water temperature
5-45℃
Average consumed power
2500/2800/3500/4000W
Laser Energy Stability
<2%
Air humidity
10-90%





Automatic wire feeder
The machine is equipped with an automatic wire feeding device, which can easily adjust the parameters and provide a variety of options
It can effectively make up the weld seam produced in the welding process, and make the welding joint tighter.





Application of handled fiber laser welding machine for steel



The Riselaser fiber laser cutting machine for sale is an affordable, easy-to-use and versatile tool that can help you start a new business or increase the profits of an established company. This type of fiber laser cutting machine is suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium, etc., and has been widely used in advertising, high-voltage/low-voltage electrical cabinet production, textile machinery accessories, kitchen appliances , Automobiles, machinery, elevators, electrical accessories, spring coil parts, subway line parts and other industries.

CW Portable Laser Welder 1500W 2000W 3000W Fiber Laser Optic Welder 1

More sampels

CW Portable Laser Welder 1500W 2000W 3000W Fiber Laser Optic Welder 2



What materials can be welded?
Aluminum, stainless steel, carbon steel, copper, silver, titanium, tin.
