DIY Mini Portable Fiber Laser Marking Machine Auto Focus Function

  • DIY Mini Portable Fiber Laser Marking Machine Auto Focus Function
  • DIY Mini Portable Fiber Laser Marking Machine Auto Focus Function
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, ce
Model Number RL-20PI
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T
Supply Ability 100 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Auto Focus Function Key Words Mini Laser Marking Machine
Marking Area 100~150mm (range Optional) Laser Source Brand MAX Or Raycus
Engraving Speed ≤10000mm/s Control Software EZCAD Software
System power supply  500W / 220V / 50Hz (110V Can Be Connected) Laser Power 20W, 30W
Laser Wave Length 1064nm Cooling Style Air Cooling
Highlight

Portable Fiber Laser Marking Machine

,

DIY Mini Fiber Laser Marking Machine

,

1064nm small fiber laser engraver
Leave a Message
Product Description

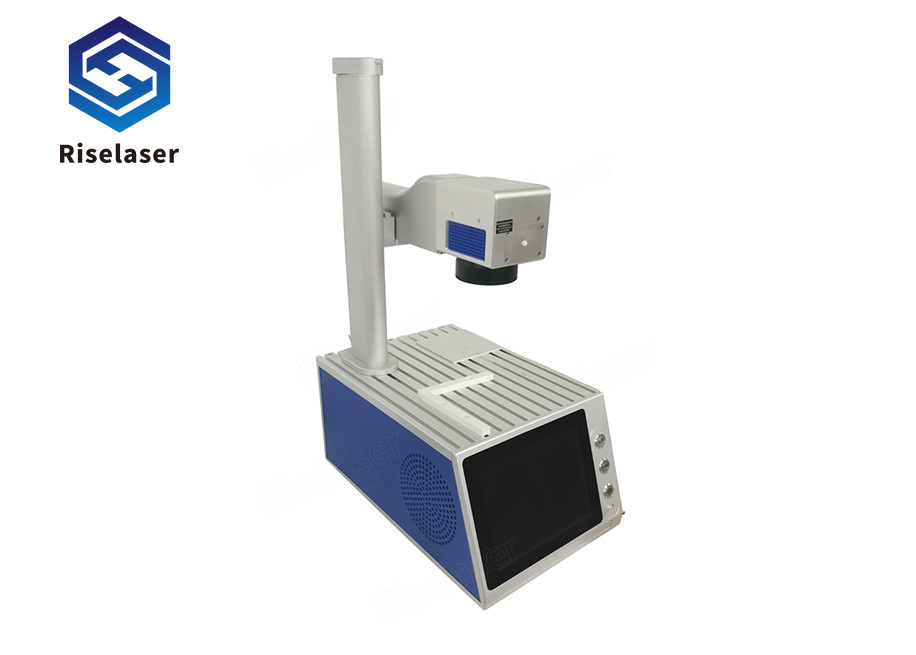

DIY Mini Portable Fiber Laser Marking Machine Auto Focus Function



RL-PI series intelligent laser marking machine belongs to desktop fiber laser marking equipment. It is a special model specially developed by Riselaser for simple, compact, flexible and convenient equipment requirements. The equipment is extremely cost-effective, adopts high-quality fiber laser source, high-stability galvanometer system, and hidden keyboard and mouse design, which can easily meet the most common laser marking applications.

DIY Mini Portable Fiber Laser Marking Machine Auto Focus Function 0



Mini Laser Marking Machine Parameters

Model series Intelligent laser marking machine
Model RL-20PI RL-30PI
Laser parameters Laser source model MAX 20W MAX 30W
Output power 18.5W 30W
Beam quality M² ≤1.4 ≤1.4
Pulse repetition frequency 27-60 kHz 30-60 kHz
Laser wavelength 1064±5
Output power stability <3%
Design life About 100,000 working hours (non-service life)
Optical properties Marking range 100~150mm (range optional)
Engraving depth ≤1mm (depending on power and time)
Engraving speed ≤10000mm/s
Repeat accuracy ±0.002
Mininum line width 0. 1mm
Minimum character height 0.15mm
Use environment Cooling method Built-in air cooling
System power supply 500W / 220V / 50Hz (110V can be connected)
Temperature, humidity 0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range
Oil mist, condensation Not allowed
Other parameters Operating system Windows operating system
File format All fonts/types of WINDOWS operating system font library (standard USB input)
Dimensions 460X300X683 mm
Packing size 550X440X690 mm
Total Weight About 25kg





Mini Laser Marking Machine Samples

DIY Mini Portable Fiber Laser Marking Machine Auto Focus Function 1
