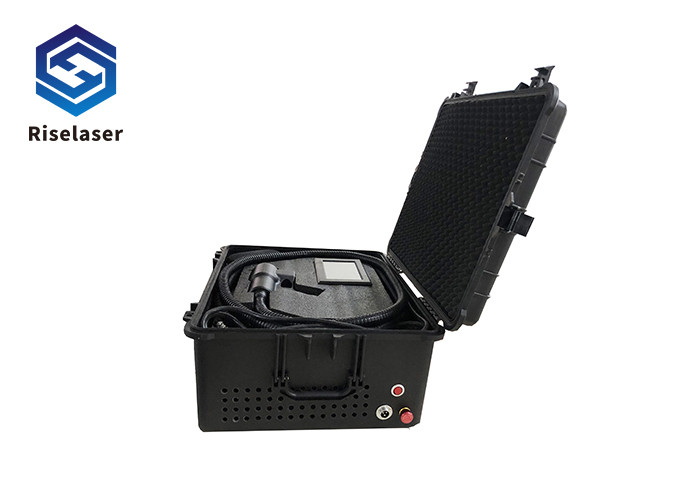

50W 100W 200W Portable Laser Cleaning Machine Rust Remover Device

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Type | Laser Rust Cleaner | Laser Power | 50W/100W/200W |
---|---|---|---|
Cooling Method | Air Cooling | Function | Rust Remover |
Fiber Cable Length | 1.5-5 M | Pulse Energy | 1.5J |
Laser Source | Raycus IPG MAX | Control Method | Control Panel |
Highlight | 200W Laser Cleaning Machine,50W Laser Cleaning Machine,50W Clean Laser Rust Remover |
50W 100W 200W Portable Laser Cleaning Machine Rust Remover Device
50w/100w Portable Laser Rust Cleaner Rust Remover Device Laser Cleaning Of Metal
Fiber laser cleaning machine specification
Model | RL-C200 | RL-C100 |
Laser source | Fiber | Fiber |
Laser Power | 200W | 100W |
Fiber cable length | 1.5-5 M | 1.5-3 M |
Laser Wavelength | 1064nm | 1064nm |
Pulse Energy | 1.8 mJ | 1.5 mJ |
Pulse frequency | 1-4000KHz | 1-4000KHz |
Scanning speed | 0-7000mm/s | 0-7000mm/s |
Cooling | Air cooling | Air cooling |
Dimension | 600*350*800mm | 500*300*650 mm |
Weight | 58Kg | 33Kg |
Beam width | 10-170mm | 10-100mm |
Optional | Manual/Auto | Manual |
Temperature | 5-40 ℃ | 5-40 ℃ |
Voltage | Single Phase AC 220V,50/60HZ | Single Phase AC 220V, 50/60HZ |
Machine advantage
Laser cleaning machine is a new type of industrial surface cleaning. Compared with other industrial cleaning instruments, laser cleaning is more efficient, with greater cleaning power, and less wear on the surface of the object.
It uses advanced laser sources, laser optical scanners and control systems to remove rust, oxides, oil stains, stains, dirt, coatings and paints on the surface of metal objects of different shapes and thicknesses, as well as attachments and deposits on the surface of metal objects Things. Stone carving, there are residues on the surface of the rubber mold.
1). Powerful, short pulse, and fast-moving laser pulses act on the target surface to generate tiny plasma ruptures, shock waves, thermal stress, etc., to sublime and evaporate surface substances.
2). The focused laser beam can accurately evaporate surface objects or dirt.
3). Laser cleaning is suitable for metal surfaces. The processed and optimized laser beam will not change the metal properties or damage the laser-treated surfaces. The precisely tuned laser beam only acts on the coating, residue or oxide, and will not harm the underlying surface of the base material.
4). By adjusting other parameters, the laser beam can accurately and easily achieve the required cleaning effect.
5) Can be used in a variety of industries, including but not limited to metals
Machine application
The rust removal portable fiber laser cleaning machine can remove resin, paint, oil stains, stains, dirt, rust, coatings, coatings and oxidation coatings on the surface of objects. It is widely used in industry, covering ships, steam repairs, rubber molds, high- End machine tools, rails and environmental protection.
Application
|
|||
Rust Removal
|
Oxide Removal
|
Molding Cleaning
|
Surface Preparation
|
Coatings Removal
|
Surface Cleaning
|
Weld Pre- treatment
|
Gluing Pre-treatment
|
Paint Removal
|
Stain Removal
|
Historic Restoration
|
Selective Paint Removal
|
