220V 50HZ 50W Fiber Laser Marking Machine Auto Lift And JPT Source
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 50w Fiber Laser Marking Machine | Laser Power | 20W/30W/50W |
|---|---|---|---|
| Work Temperature | 0℃-40℃ | Weight | 50kg |
| Cooling Mode | Air Cooling | Power Supply | 220V, 50HZ |
| Highlight | 50W Fiber Laser Marking Machine,220V 50HZ Fiber Laser Marking Machine,50W Deep Laser Engraving Machine |
||
Product Description

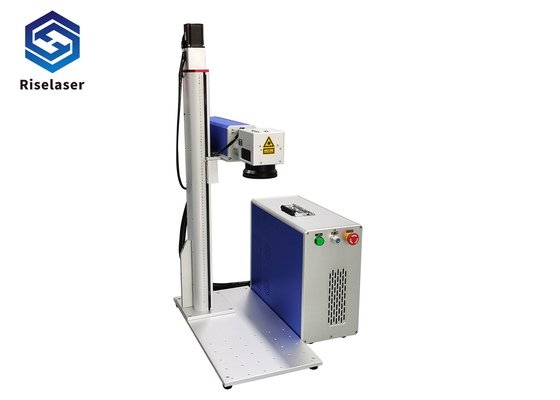

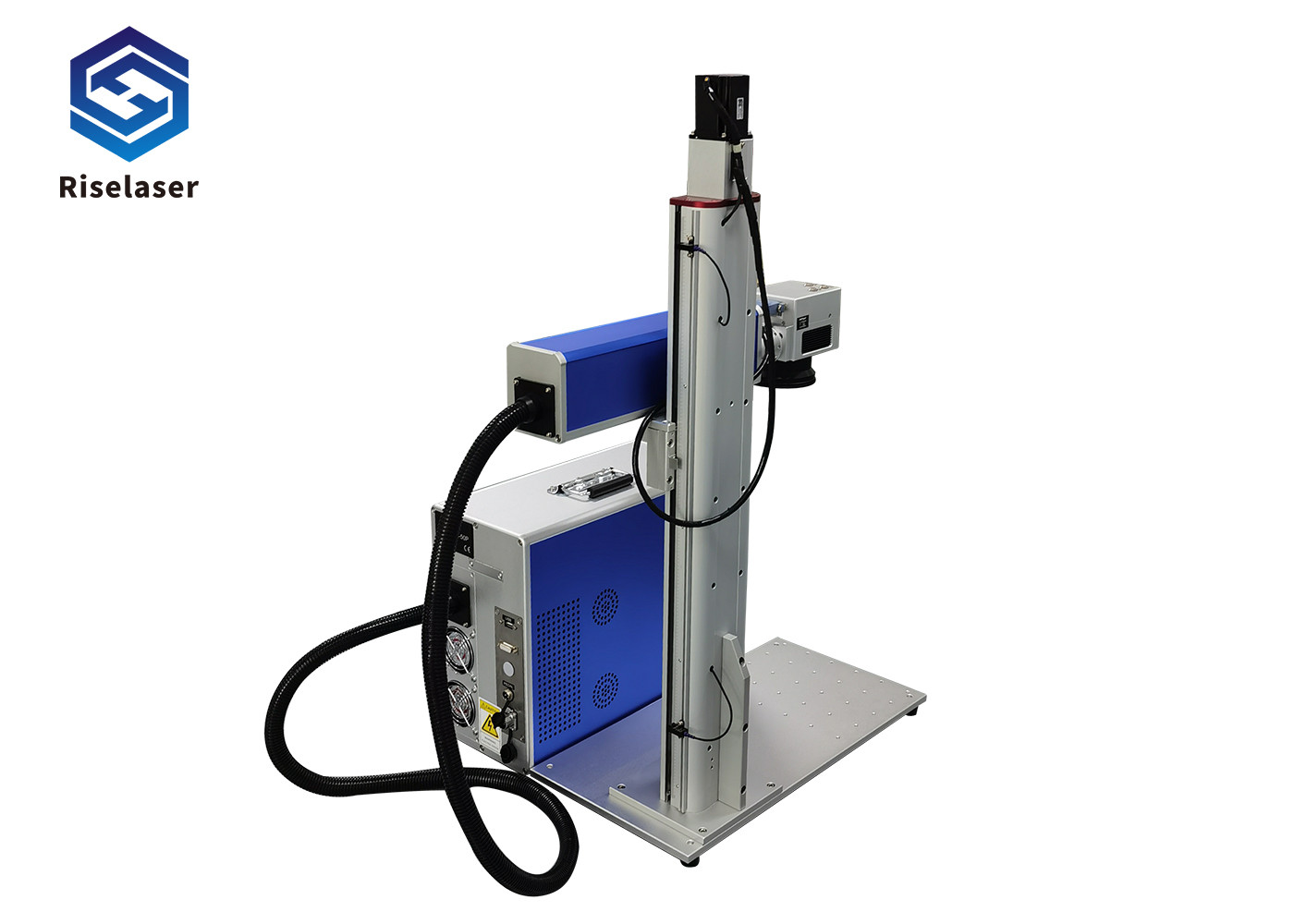

220V 50HZ 50W Fiber Laser Marking Machine Auto Lift And JPT Source
50w fiber laser marking machine auto lift and JPT source
Main features of raycus 50w fiber laser marking machine
1. The product adopts high-quality accessories, equipped with automatic lifting table, optional automatic focusing function
2. Long service life and no maintenance required. Over 100,000 working life.
3. High quality laser beam. The focal length does not exceed 20 μm.
4. Genuine EzCad software.
5. High-speed marking. Special laser head for high-speed scanning.
6. Raycus Fiber laser source comes with 1 year warranty.
7. No consumables, low consumption.
The lens 1064nm f = 254mm, the highest light transmittance, can ensure that the power consumption is not reduced
Customized marking area:
Stanard: 110*110mm
Optional: 150*150mm, 200*200mm, 300*300mm
| Product Parameters | |||
| Model | RL-20PS/30PS/50PS/70PS | Laser source | Raycus JPT IPG |
| Laser Type | Fiber laser | Positioning Way | Red light |
| Laser power | 20W 30W 50W 100W 200W | Laser Module Life | 100000 hours |
| Weave length | 1064 nm | Cooling Style | Air cooling |
| Marking area | 110mm*110mm--1750mm*1750mm | Total power | ≤500W |
| Marking speed | 7000-12000mm/s | Operating Voltage | 220v /110v, 50/60hz |
| Marking depth | 0.01-1mm | Supported Windows | Windows XP,7,8,10 |
| Repetition Precison | 0.01mm | Certificate | ISO, CE |
| Minimum Character | 0.2 mm | Control software | EZCAD 2.14.9 |
| Minimum Line Width | 0.01mm | Supported Format | PLT, DXF, DST, AI, SDT, BMP, etc. |
| Packaging Dimension | 78*38*80cm | Gross weight | 60kg |
Application of 50w fiber laser marking machine
1. Model: Fiber Laser Marking Machine
2. Applicable materials:
Applicable to various metals, such as silver, alloy, aluminum, stainless steel, copper, etc., as well as some non-metallic materials, such as
PVC, PC, black acrylic.
3. Applicable industries:
Widely used in electronics, jewelry, automobiles, communication products, plastic buttons, IC, etc.
Applied Materials:
1. All metals: gold, silver, titanium, copper, alloys, aluminum, steel, manganese steel, magnesium, zinc,
Stainless steel, carbon steel/low carbon steel, various alloy steels, electrolytic plates, brass plates, galvanized plates,
Special surface treatment such as aluminum, various alloy plates, various sheet metals, rare metals, plated metals, anodized aluminum, surface oxidation and decomposition of electroplated aluminum-magnesium alloys
2. Non-metal: non-metallic coating materials, industrial plastics, rigid plastics, rubber, ceramics, resins, cartons, leather, clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
