High Clear CCD Portable Jewelry Laser Welding Machine FDA Approved

High Clear CCD Portable Jewelry Laser Welding Machine FDA Approved

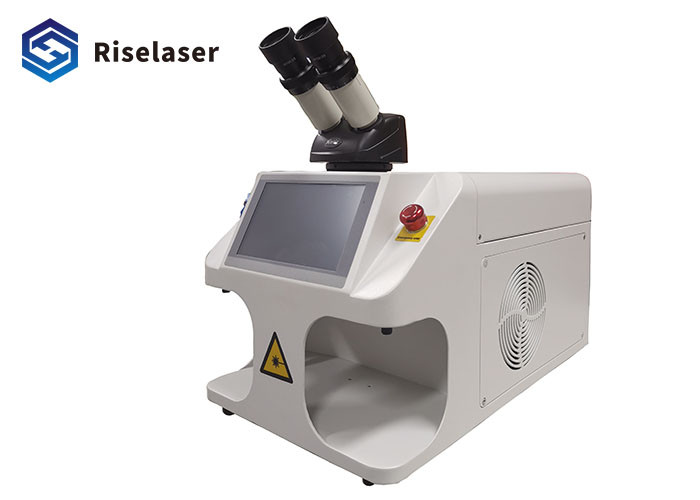

FDA approved High clear CCD Portable Welding Machine For Jewelry

What can a portable Welding Machine For Jewelry do?
This welding machine is specially developed for jewelry laser welding, mainly used for punching and spot welding of gold and silver jewelry. Laser spot welding is an important aspect of the application of laser processing technology. The spot welding process is heat conduction, the surface of the workpiece is heated by laser radiation, the surface heat is diffused into the interior through heat conduction, and the workpiece is melted by control. The width, energy, peak power and repetition rate of the laser pulses to form a specific molten pool. Because of its unique advantages, it is widely used in the processing of gold and silver jewelry and the welding of small and small parts.

Machine size:



Welding Machine For Jewelry technical data:




Application of laser welding machine:
Jewelry laser spot welding machine is widely used in aviation, aerospace, sporting goods, jewelry, golf clubs, medical equipment, aluminum alloy dentures, instrumentation, electronics, machining, automobiles and other industries, especially for the opening of gold and silver jewelry , Welding of spot welds, embedded parts and claw foot parts


Main configuration:
Crystal: customized version 7*110
Xenon lamp: customized version 8*90*180 (two poles with line)
Power supply: 60W boost power supply
Microscope: Motic
Cavities: Custom Ceramics and Cavities
Chiller: Customized built-in 2.8L water tank for air cooling



60w welding laser machine Video




Operating system supported languages: Chinese, Turkish, Arabic, English, Korean

1. Observation system: The observation system of this jewelry spot welding machine consists of a microscope and a built-in high-definition CCD camera. Users can choose one or both of them as the observation method according to their needs. Both can clearly observe the welding position of the workpiece, which is convenient for welding.

2. Adjustment of the CCD cross cursor: If the light spot is not in the center of the cross cursor in a very clear position of the CCD camera system, you can change the position of the cross cursor by clicking the middle position of the four cross cursors.​​​ the sides of the screen so that the solder joint is in the center of the cursor

3. For welding operations, first ensure that the machine has been turned on normally, put the workpiece into the sight of the observation system, and then slowly move to the clearest position of the observation system.
Point the cursor to the desired welding position, gently step on the foot switch, the machine has laser output for welding.

4. Parameter adjustment, focusing, after the first welding, the welding effect of the solder joint does not meet the requirements, and the parameters need to be adjusted again. Focusing (-3.0-+3.0) makes the welding effect meet the requirements, and will not repeat the welding in the future. Needs to be readjusted.
