60KG Handheld Laser Welding Machine 1500w Air Cooling With Auto Wire Feeder
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Small Size, Light Weight | Key Words | Stainless Steel Laser Welding Machine |
|---|---|---|---|
| Key Words 2 | Air Cooling | Water Tank Capacity | CW Fiber Laser |
| Laser Power | 1000w 1500w | Laser Source | RECI/GW |
| Machine Weight | 60KG | Cooling System | Air Cooling System |
| Fib1500Wer Wire Length | 10M-15M | Place Of Origin | Shenzhen, China |
| Highlight | 60KG Handheld Laser Welding Machine,Handheld Laser Welding Machine 1500w,Wire Feeder Air Cooling Laser Welder |
||
Product Description

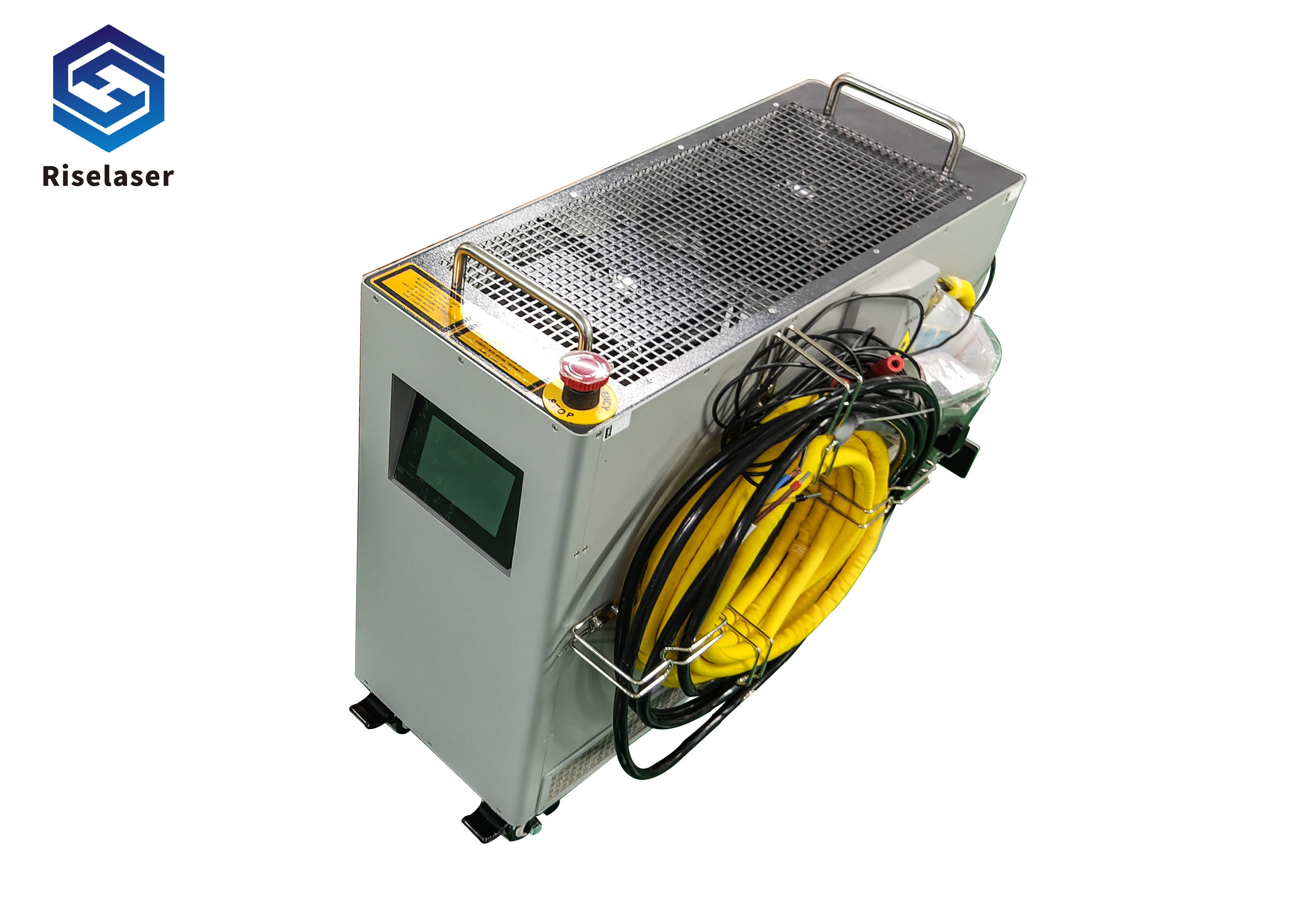

60KG Air Cooling laser welding machine 1500w with auto wire feeder
The advantages of air-cooled laser welding are low warpage, fast processing speed, good flexibility and fine weld seam. The most important thing is that it adopts air-cooling design, which makes the whole machine compact and has good welding effect. This technology is becoming more and more prominent in the manufacturing process. There is a growing demand for techniques in post-production that do not require a concentrated heat input. With our many years of welding experience, our laser experts realize the competitive advantages laser welding can achieve, so our machines can perform even the most demanding welding jobs. Some examples are: welding of steel heat exchangers, welding of power transmissions, repair of tools by surfacing or welding wear layers.
Features
★Welding beam energy distribution, the best spot for welding needs
★Suitable for all kinds of complex welding, welding of various devices, 5mm thin plate welding seam
★British imported ceramic condenser cavity, corrosion resistance, high temperature resistance, long life
★Flexible and convenient welding, up to 3 meters of optical fiber, can be equipped with 5 meters of optical fiber
★Optional CCD camera monitoring system, easy to observe and accurate positioning
★Customizable automation tools can meet the mass production of products
★Real-time energy feedback, the output energy is more accurate and stable (optional)
With different welding nozzles
Samples
Using a hand-held swinging welding head, it can be easily used without professional welding skills, and it is suitable for welding work in small batches and multiple batches.
360 degree micro welding without dead angle
Machine technical data
| Model | Air Cooling MINI RL-F1500 | ||
| Optical characteristics | Output power(W) | ≥1500 | |
| Laser type | Continues Fiber Laser | ||
| Output power adjustment range(%) | 10~100 | ||
| Wavelength(nm) | 1080±3 | ||
| Output power instability | <3% | ||
| Indicates red light power(mW) | >0.5 | ||
| Output Interface | QBH | ||
| Output fiber core diameter(μm) | 20,30 or 50 | ||
| Output fiber label length | Standard: 5m/Optional: 10m | ||
| Electrical characteristics | Working Voltage | 220V±10%,50/60Hz | |
| Maximum power consumption(W) | <6000 | ||
| Control method | Display screen/host computer | ||
| Other characteristics | Machine dimension (with handle (W×H×L))(mm) | 347.5×667×720 | |
| Machine Weight(kg) | <65 | ||
| Working temperature range(℃) | 5~40 | ||
| Working humidity range(％) | <70 | ||
| Cooling method | Air Cooling | ||
| Storage temperature(℃) | -10~60 | ||
After the laser beam is focused, a small spot can be obtained, which can be precisely positioned and used for group welding of micro and small-sized workpieces for mass production. Mainly used for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stitch welding, sealing welding, etc., with high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no Post-weld machining or simple machining is required.
Fast speed, simple operation and labor saving
Fast welding speed, 2-10 times faster than traditional welding, one machine can replace at least 2 welders a year
Long life work, safer and more environmentally friendly
Laser welding is a low consumable for micro welding.
