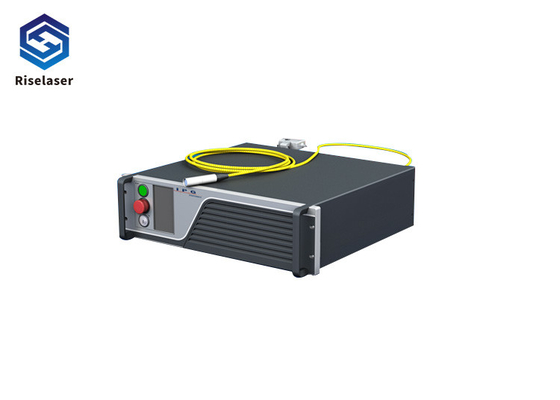

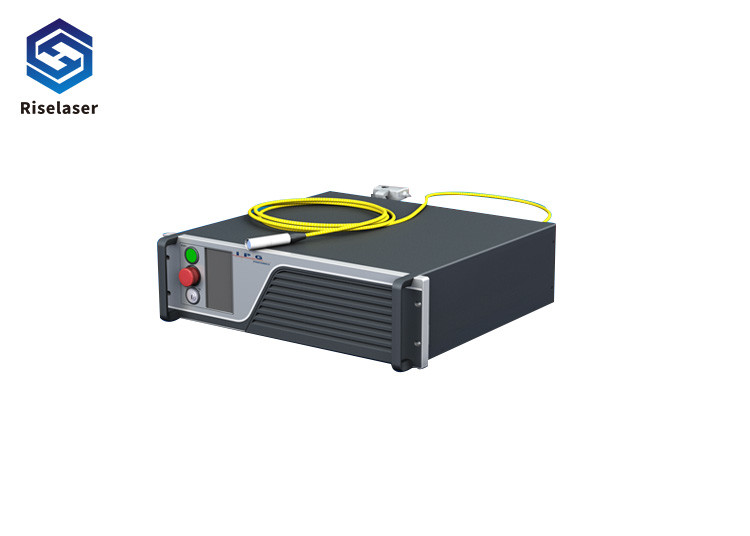

IPG Photonics CW Fiber Laser For 2D & 3D Metal Cutting And Welding

  • IPG Photonics CW Fiber Laser For 2D & 3D Metal Cutting And Welding
Place of Origin Shenzhen, China
Brand Name Raycus
Certification CE,ISO9001:2008
Model Number IPG YLS-U/CUT
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Carton Case
Delivery Time 7 Work Days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Word Ipg Photonics Central Wavelength Range, Nm 1070 ±10
Mode Of Operation CW/ Modulated Modulation Frequency, KHz 0-5
Maximum Average Power*, KW 1, 2, 3, 4, 6 Power Tunability, % 10-100
Power Stability**, % ±0.5 Output Fiber Core Diameter 50, 100 And 200 μm Or Single-mode
Beam Mode Quality Multi-mode BPP Mm × Mrad: 2, 5, 10 Single-mode: M2< 1.1 1-3 KW Weight <140
Highlight

CW IPG Photonics Fiber Laser
Leave a Message
Product Description

The world's smallest kilowatt-scale fiber laser
YLR-U series is the industry's smallest kilowatt-class continuous ytterbium-doped fiber laser.
Offers record-breaking performance, an extremely compact form factor, and a high power-to-volume ratio.



Model YLR-1000-U YLR-1500-U YLR-2000-U YLR-3000-U YLR-6000-U
Central Wavelength Range, nm 1070 ±10
Mode of Operation CW/Modulated
Modulation Frequency, kHz Up to 50
Max. Average Power Mode, W 1000 1500 2000 3000 6000
Power Tunability, % 10-100
Power Stability, % ±0.5
Output Fiber Core Diameter 50, 100 and 200 μm or Single-mode**
Beam Mode Quality Multi-mode BPP mm × mrad: 2, 5, 10 Single-mode: M2< 1.1

IPG Photonics CW Fiber Laser For 2D & 3D Metal Cutting And Welding 0



Laser features

  • Average Power up to 6 kW* Up to >40% Wall-plug Efficiency
  • Extremely Small Size and Low Weight Built-in Diagnostics with Web Connectivity
  • Exceptional Operation in High Humidity Environment Single-mode Option up to 3 kW



Application

2D & 3D Metal Cutting and Welding Various Steels, Al, Cu, Ti Alloys, and Other Metals
High Speed Cutting Conduction and Keyhole Welding



IPG Photonics CW Fiber Laser For 2D & 3D Metal Cutting And Welding 1

IPG Photonics CW Fiber Laser For 2D & 3D Metal Cutting And Welding 2



Packages

IPG Photonics CW Fiber Laser For 2D & 3D Metal Cutting And Welding 3
