Mini Portable Max 20W 30W Metal Plastic Fiber Laser Marking Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Marking Laser Machine | Application | Metal Plastic Fiber Laser Marking Machine |
|---|---|---|---|
| Marking Area | 100~150mm (range Optional) | Laser Source Brand | MAX Or Raycus 20W, 30W |
| Exterior Dimension | 390X210X615 Mm | Repetition Accuracy | ± 0. 002 |
| Control Software | EZCAD Software | System power supply | 500W / 220V / 50Hz (110V Can Be Connected) |
| Marking Depth | ≤ 1 Mm (depending On Power And Time) | Cooling Style | Air Cooling |
| Highlight | 20Watt Fiber Laser Marking Machine,Air cooling Fiber Laser Marking Equipment |
||
Product Description
Mini Portable Max 20W 30W marking laser machine Metal Plastic Fiber Laser Marking Machine
PRODUCT DESCRIPTION
RL-P series mini laser marking machine belongs to desktop fiber laser marking equipment,which is an
Economical model speciallydeveloped by Riselaser to meet the needs of simple,compact,flexible and
convenient equipment.This model has the advantages of economical and affordable,high cost
Performance (computer is not included, you need to configure your own computer to use),the whole
machine is small and easy to carry.It can easily meet most common laser marking applications.
The RL-P series products use a 1064nm wavelength fiber laser source,which is suitable for various metal
materials such as iron,copper and aluminum,gold,silver,and some non-metal materials such as PC,ABS,
PVC,and PC+ABS.

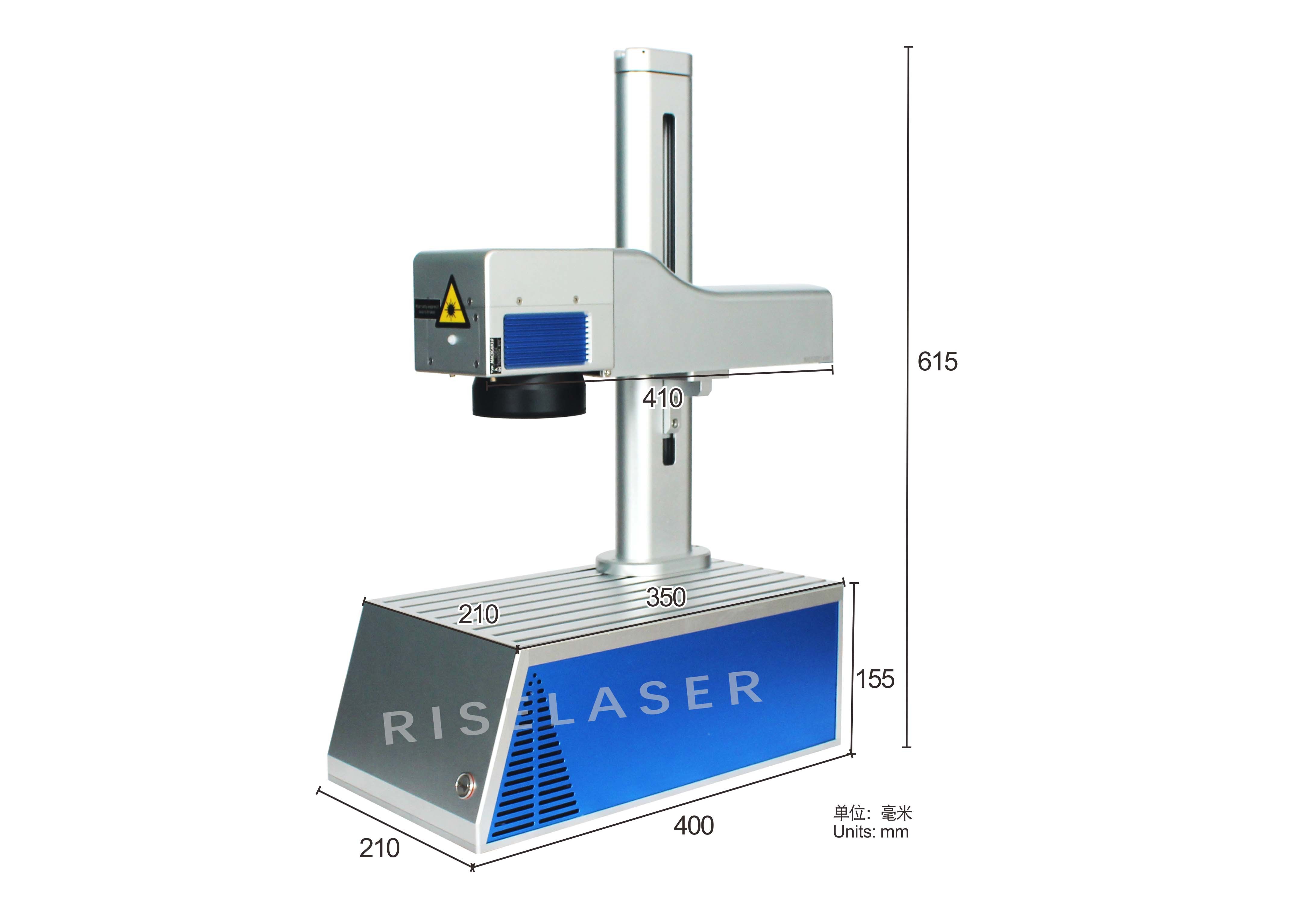

PRODUCT SIZE
DEVICE SPECIFICATION
| Model series | Intelligent laser marking machine | ||
| Model | RL-20P | RL-30P | |
| Laser parameters | Laser source model | MFP-20X/20QS | MFP-30X/30QS |
| Output power | 18.5W/20W | 30W | |
| Beam quality M² | ≤1.4 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | 30-60 kHz | |
| Laser wavelength | 1064±5 | ||
| Output power stability | <3% | ||
| Design life | About 100,000 working hours (non-service life) | ||
| Optical properties | Marking range | 100~150mm (range optional) | |
| Engraving depth | ≤1mm (depending on power and time) | ||
| Engraving speed | ≤10000mm/s | ||
| Repeat accuracy | ±0.002 | ||
| Mininum line width | 0. 1mm | ||
| Minimum character height | 0.15mm | ||
| Use environment | Cooling method | Built-in air cooling | |
| System power supply | 500W / 220V / 50Hz (110V can be connected) | ||
| Temperature, humidity | 0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range | ||
| Oil mist, condensation | Not allowed | ||
| Other parameters | Operating system | Windows operating system | |
| File format | All fonts/types of WINDOWS operating system font library (standard USB input) | ||
| Dimensions | 390X210X615 mm | ||
| Packing size | 680X5500X270 mm | ||
| Total Weight | About 20kg | ||
MACHINE ADVANTAGES
1.100% portable
● The whole machine weighs only about 20KG,it's small,compact and light,it is very convenient to carry;
● The column and beam path can be disassembled and packed at will,it's easy to install and easy to store;
● The position of the column can be adjusted freely on the marking table,which can be flexible and changeable.
2.Cost-effective
● Affordable and economical models with performance comparable to desktop computers and higher cost performance;
● Integrated design,firm structure,stable performance,convenient after-sales;
● Desktop operation,small footprint,not limited by space.
3.High-quality light source
● Using advanced fiber laser,the output beam quality is good,the reliability is high;
● No consumables and maintenance-free,working life is about 100,000 hours;
● It can be flexibly applied to metallic materials and some non-metallic materials.
