Air Cooling Hand Held Laser Welding Machine Aluminum Laser Welding Machine 1.5KW
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Small Size, Light Weight | Key Words | Aluminum Laser Welding Machine |
|---|---|---|---|
| Key Words 2 | Air Cooling | Working Voltage | 220V±10%,50/60Hz |
| Water Tank Capacity | CW Fiber Laser | Laser Power | 1000w 1500w |
| Machine Weight | 60KG | Cooling System | Air Cooling System |
| Fib1500Wer Wire Length | 10M-15M | Output Power Adjustment Range(%) | 10~100 |
| Highlight | 1.5KW Hand Held Laser Welding Machine,Air Cooling Aluminum Laser Welding Machine,Air Cooled Fiber Laser Welding Machine |
||
Product Description

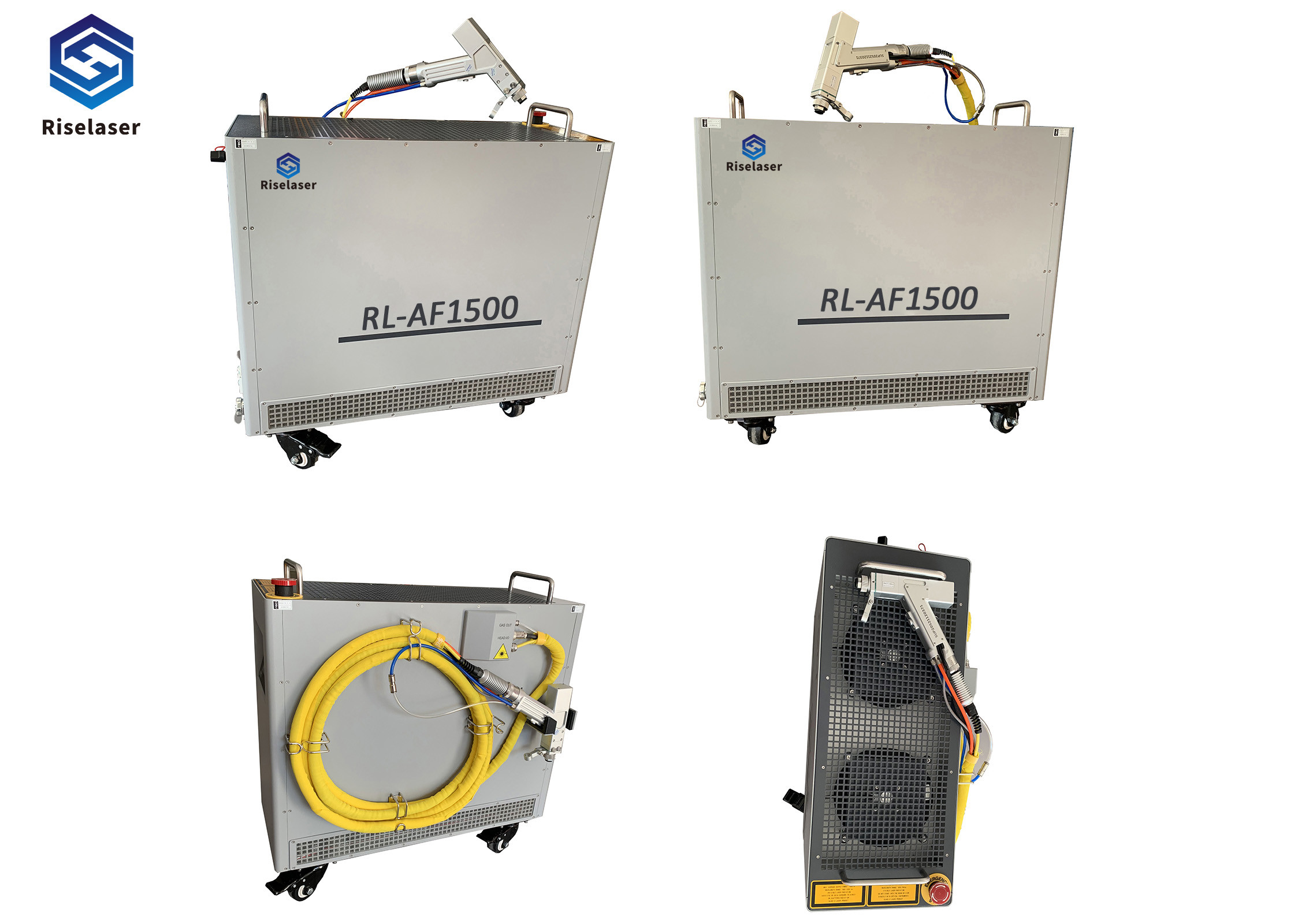

Air cooling hand held laser welding machine aluminum laser welding machine 1.5KW
- Air-cooled handheld portable laser welding system
- Air-cooled handheld laser welding system is easy to learn, quick and easy to set up, and produces uniform, high-quality welds on a variety of materials and thicknesses
- Welding speed is 4 times faster than TIG welding
- Easy to learn and operate for uniform welding results
- High quality welding of thick, thin and highly reflective metals without distortion, undercut or burn through
- Welding dissimilar metal parts of different thicknesses
- Small heat input and heat affected zone
- Less preparation work before welding and simple post-welding treatment
- Increase productivity by eliminating the need to trim deformed parts after welding
- The unique air-cooled design eliminates the complex links and power consumption required by the water-cooled laser welding system
- The overall structure is compact, equivalent to the volume and weight of a desktop computer
- Built-in parameters and storage modes can simplify operation steps and improve welding efficiency
Machine technical data
| Model | Air Cooling MINI RL-F1500 | ||
| Optical characteristics | Output power(W) | ≥1500 | |
| Laser type | Continues Fiber Laser | ||
| Output power adjustment range(%) | 10~100 | ||
| Wavelength(nm) | 1080±3 | ||
| Output power instability | <3% | ||
| Indicates red light power(mW) | >0.5 | ||
| Output Interface | QBH | ||
| Output fiber core diameter(μm) | 20,30 or 50 | ||
| Output fiber label length | Standard: 5m/Optional: 10m | ||
| Electrical characteristics | Working Voltage | 220V±10%,50/60Hz | |
| Maximum power consumption(W) | <6000 | ||
| Control method | Display screen/host computer | ||
| Other characteristics | Machine dimension (with handle (W×H×L))(mm) | 347.5×667×720 | |
| Machine Weight(kg) | <65 | ||
| Working temperature range(℃) | 5~40 | ||
| Working humidity range(％) | <70 | ||
| Cooling method | Air Cooling | ||
| Storage temperature(℃) | -10~60 |
||
Industry application
Cabinet kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries.
Portable Fiber Welding Laser Model RL-F 1.5kW
Handheld fiber laser welding machine RL-F1500 is used for welding metal sheets and metal pipes.
The fiber laser welding machine couples the laser beam to the optical fiber, transmits it over a long distance, and then converts it into parallel light through a collimating mirror, and finally focuses it on the welding spot area between the workpieces, producing a laser beam that is concentrated on one point in this way. High intensity beam.
This concentrated heat source enables fine, deep and high-speed welding of a wide variety of metals. Welds are discreet and firm.
Non-contact welding.
The difficult part adopts the non-contact method, which makes the fiber laser welding more flexible.
The laser beam realizes the separation of time and energy, and multi-beam processing makes welding more precise.
Flexibility
Suitable for welding any special-shaped products. Portable optical fiber welding machine can meet the requirements of square tube welding, round tube butt welding, plate tube welding, etc. The machine can be customized for all types of tools, such as wire feed mechanisms and nozzles.
High efficiency
Welding speed is 2-10 times faster than traditional welding processing speed
Compatible with a wide range of consumables that can be easily and quickly replaced.
High welding quality
Welds are smooth without subsequent grinding, saving time and costs.
No deformation, no weld marks, and the weld seam is very firm.
Modular and compact design
The compact design with replaceable modules takes up less layout space and is easy to maintain.
Low cost
Save 80% to 90% of electricity and reduce processing cost by 30%.
Easy to use
Even without any experience, operators can get started quickly.
