Big Cleaning Size Laser Cleaning Machine Rust Removal 2000w
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Laser Cleaning Machine Rust Removal | Laser Power | 1000W/1500W/2000W |
|---|---|---|---|
| Cooling Method | Water Cooling | Cleaning Width Adjustment Range | 20-300MM |
| Cleaning Gun Weight | 0.7KG | Function | Cleaning Machine For Rust Paint Oil Dust |
| Fiber Cable Length | 15 M | Operation | Manual/auto |
| Laser Source | Raycus IPG MAX | Control Method | Control Panel |
| Highlight | Water Cooling 2000w Laser Rust Remover,CE 2000 Watt Laser Rust Removal Machine |
||
Product Description

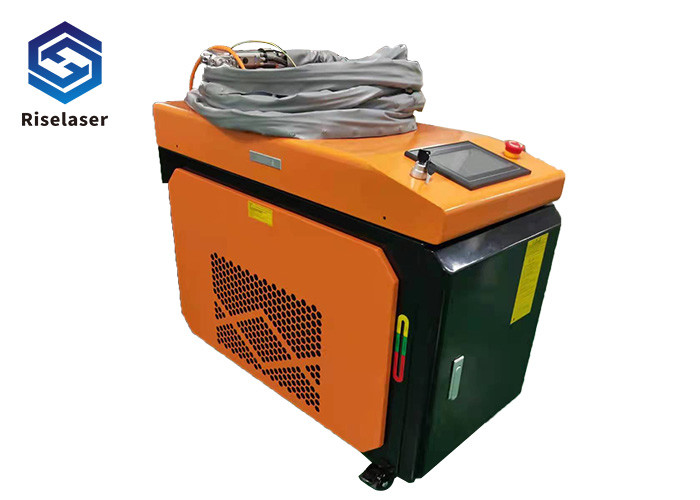

Big cleaning size laser cleaning machine rust removal 2000w
Machine features:
1. Basic features: self-developed control system with multiple security alarms, smaller size, flexible operation and easy to use.
2. More stable: All parameters are visible, real-time monitoring of the status of the whole machine, to avoid problems in advance, to troubleshoot and solve problems more conveniently, and to ensure the stable operation of the cleaning head.
3. Process: All parameters are visible, the cleaning quality is more perfect, and the penetration is high.
4. The parameters are stable and the repeatability is high: the process parameters must be repeatable as long as the laser power is stable for the determined nozzle air pressure and lens state. Greatly improve efficiency, while also reducing operator requirements.
Super power cleaning Gun
| Power supply (V) | 220V ± 10% AC 50/60Hz |
| Placement environment | Flat, vibration and shock free |
| Working Environment (℃) | 10 ~ 40 |
| Working environment humidity (%)＜70 | |
| Cooling method | Water chiller cooling |
| Suitable Wavelength | 1064 (±10nm) |
| Suitable laser power | ≤ 2000w |
| Reflector | 20*15.2 T1.6 |
| Maximum supported air pressure | 15 bar |
| Focus vertical adjustment range | ± 10mm |
| Spot adjustment range | Line 0~300mm |
| Net Weight | 0.7kg |
How laser to do cleaning work?
1) Powerful, short-pulse, and fast-moving laser pulses act on the target surface to generate tiny plasma ruptures, shock waves, thermal stress, etc., which sublime and evaporate surface materials.
2) The focused laser beam can accurately evaporate surface objects or dirt.
3) Fiber laser cleaning is suitable for metal surfaces. The processed and optimized laser beam will not change the metal properties or damage the laser-treated surfaces. The precisely tuned laser beam only acts on the coating, residue or oxide, and will not harm the underlying surface of the base material.
4) By adjusting other parameters, the laser beam can accurately and easily achieve the required cleaning effect.
Machine parameters
| Model | RL-C1000 | RL-C1500 | RL-C2000 |
| Wavelength | 1080nm | 1080nm | 1080nm |
| Average power | 1000W | 1500W | 2000W |
| Frequency | 20-50 kHz | 50 kHz | 50 kHz |
| Laser type | CW fiber laser | CW fiber laser | CW fiber laser |
| Clean speed | ≤40 M²/Hour | ≤40 M²/Hour | ≤40 M²/Hour |
| Fiber cable length | 10M(others for optional) | 10M(others for optional) | 10M(others for optional) |
| Working life | 100,000 hours | 100,000 hours | 100,000 hours |
| Machine weight | 120kg | 120kg | 120kg |
| Cooling | Water chiller cooling | Water chiller cooling | Water chiller cooling |
| Optional | Manual/Auto | Manual/Auto | Manual/Auto |
| Temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| Beam width | 10-70mm | 10-70mm | 10-70mm |
| Clean speed | Single Phase 220V,50/60HZ |
Single Phase 220V,50/60HZ |
Single Phase 220V,50/60HZ |
Cleaning samples
After-sales service
1). One-year warranty, the machine has problems during the warranty period, and the main parts (except consumables) are replaced free of charge (some parts are repaired).
2). Free maintenance for life.
3). Free training courses in our factory.
4). 24 hours a day online service and email, free technical support. We will reply you within 24 hours after receiving your machine problem.
5). The fiber laser cleaner has been tested and adjusted before shipment. We will take photos of the machine and make
Provide you with the working images of the machine, after obtaining your consent, we will book the ship.
6). Customers pay for tickets and provide on-site technical services (we have professional engineers to provide machine installation, commissioning and maintenance).
7). When there is a problem in the use process, our technicians need to judge where the problem is and help you solve the problem. We can provide on line support via video, whatsApp, skype, zoom etc, until all your issues are resolved.
