Protable Laser Cleaning Machine 200w Cleaning Laser Rust Removal Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Laser Rust Removing Machine | Laser Power | Laser Cleaning Machine 200w |
|---|---|---|---|
| Cooling Method | Air/ Water Cooling | Function | Cleaning Machine For Rust Paint Oil Dust |
| Fiber Cable Length | 3 / 5 M | Operation | Manual/auto |
| Laser Source | Pulsed Fiber Laser Source | Control Method | Control Panel |
| Machine Size | 411*538*685mm | Maximum Single Pulse Energy (mJ) | 1 |
| Highlight | Air Cooling 200w Laser Cleaner,Laser Metal Cleaning Machine 200watt |
||
Product Description
Protable laser cleaning machine 200w cleaning laser rust removal machine

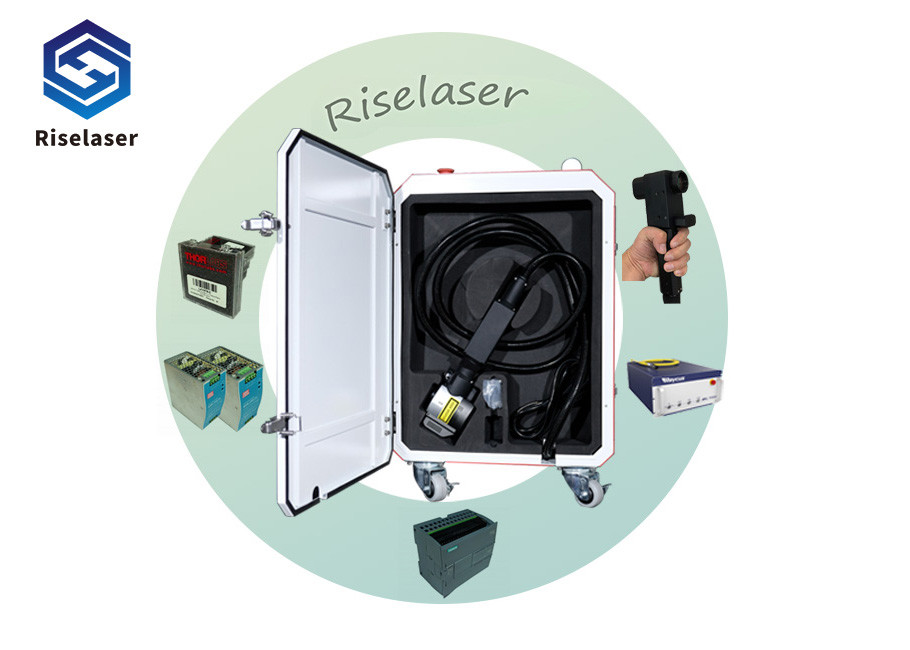

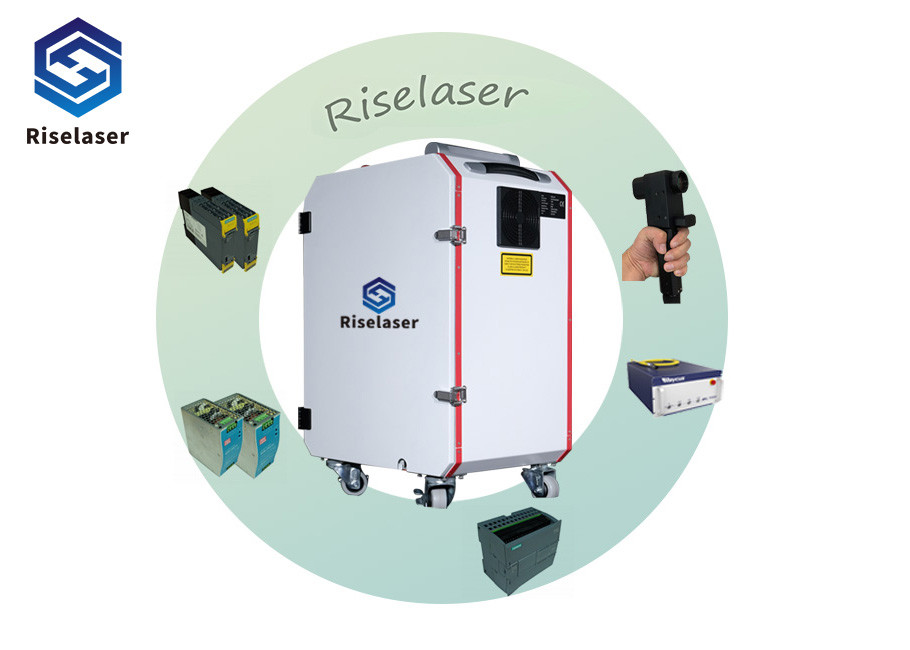

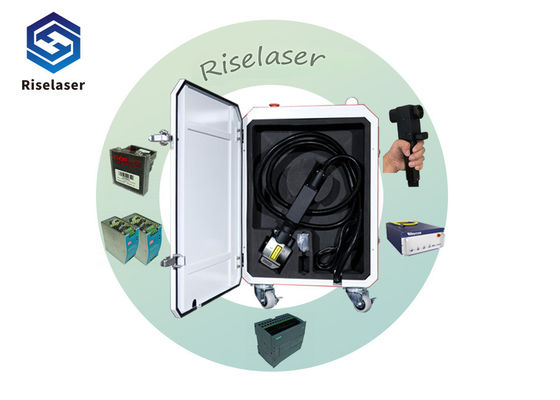

200W handheld nanosecond pulse fiber laser cleaning system. The equipment adopts the air box design, taking into account the protection and portability. Turn on the power, open the front door to take out the laser head, and select the appropriate cleaning mode to achieve cleaning. The laser head is small and light, and weighs less than 0.5kg. It can be widely used in various handheld cleaning scenarios, and can also be linked with equipment such as manipulators through a quick switching device. The laser beam quality of this equipment is high, which can easily meet various high-precision cleaning needs.
Detail specification
| Main technical parameters of laser cleaning system | |
| parameter name | parameter value |
| Laser type | Pulsed fiber laser source |
| Maximum output power (W) | 200/100 |
| Center wavelength (nm) | 10641064 |
| Fiber Beam Quality M2 | less than 1.8 |
| Power adjustment range (%) | 10-100 |
| Output power instability (%) | less than 5 |
| Laser pulse frequency (kHz) | 20-2000 |
| Pulse length (ns) | 10, 30, 60, 240 for optional |
| Maximum single pulse energy (mJ) | 1 |
| Conductive fiber length (m) | 3 or 4 |
| Laser protection class | 4 |
| cooling method |
Air cooling |
Non-contact cleaning, no cleaning media
Laser cleaning uses a high-energy laser beam to irradiate the surface of the workpiece to be cleaned, and removes contaminants from the surface of the workpiece through selective vaporization, ablation, shock waves, and thermal elasticity. There is no cleaning medium in the cleaning process, which can avoid serious substrate damage (particle cleaning), medium residue (chemical cleaning) and other problems in traditional cleaning, and reduce substrate damage to an acceptable range.
Green
The fume and dust generated by laser cleaning can be collected by a dust collector, which is easy to handle, produces no secondary products, and minimizes the impact on the environment.
Diversified operation
Laser cleaning can be divided into hand-held and automatic cleaning. Hand-held cleaning is carried out by operators who carry mobile laser cleaning equipment and hold the laser head for cleaning. Automatic cleaning integrates laser cleaning systems with manipulators, crawling robots, AGVs and other equipment to achieve precise and efficient cleaning.
Can clean many types of contaminants
Whether the substance to be removed is organic, metal, oxide or inorganic non-metal, laser cleaning can remove it. This is an advantage that any other traditional method does not have, making it widely used in the removal of surface dirt, paint, rust, film and other fields.
Low operating cost
Laser cleaning does not use consumables, and the operating cost has advantages compared with traditional methods.
Machine package
