Magic 1064nm YAG Laser Welding Box Jewelry Welding Machine 13.5KG Weight
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | 1064nm YAG Laser | Host Power Consumption | 1.5kw |
|---|---|---|---|
| Operating Mode | Touch Control | Pulse Width | 0.1-10ms |
| Aiming And Positioning | Microscope + HD Digital CCD Camera System | Maximum Laser Pulse Energy | 40J |
| Machine Weight | 13.5kg | Pump Source | Xenon Lamp |
| Display Touch Screen | 10X High Quality Colorful Digital CCD | Operating Language | English, Chinese |
| Highlight | 1064nm YAG laser welding box,40J Jewelry welding machine,air cooled Jewelry welding machine |
||
Product Description

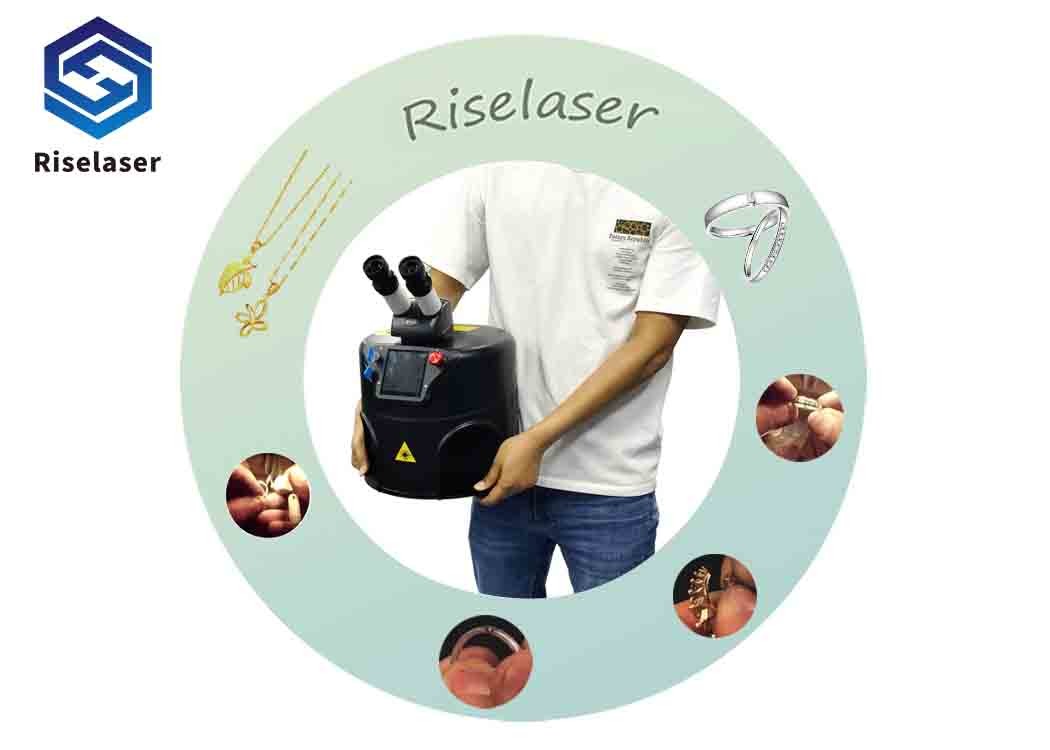

Magic box laser welding Jewelry welding machine 13.5KG weight
Machine Main Features
1. The machine boot time is fast, only 2-5 seconds can enter the working state. Compared with the traditional spot welding machine, the efficiency is greatly improved
2. Easy to start, no need to connect other equipment, you can start using it as long as it is powered on, no need to add cooling water, advanced air-cooled design
3. The operation interface is simple, you can change the desired parameters by entering the boot interface, such as energy percentage, pulse frequency, spot size, etc.
4. The weight is only 13.5KG. Currently the smallest and lightest spot welder in the world, you can easily carry it to various shopping malls for custom repair work for your customers. Transportation and storage costs are thus greatly reduced.
5. The machine is equipped with digital screen. Different from the previous spot welding machines, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable and can observe more carefully.
Machine specification
| Model | Magic Box | |
| Laser Type | 1064nm YAG Laser | |
| Beam Diameter | 0.2-2.0mm | |
| Pulse Width | 0.1-10ms | |
| Frequency | 1.0~10.0Hz Continuously Adjustable | |
| Maximum Laser Pulse Energy | 40J | |
| Host Power Consumption | ≤1.5KW | |
| Cooling System | Convective air cooling | |
| Pump Source | Xenon lamp | |
| Aiming and Positioning | Microscope + HD digital CCD camera system | |
| Operating Mode | Touch Control | |
| Display Touch Screen | 10X high quality colorful Digital CCD | |
| Operating Language | English, Chinese | |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | |
| Machine Dimension | Ø295mm x H282mm | |
| Wooden Package Dimension | 40x45x48CM | |
| Machine Net Weight | 13.5KG | |
| Operating Environmental Temperature | ≤45℃ | |
| Humidity | < 90% non-condensing | |
| Application | Welding and repairing all kinds of jewelry and metal parts | |
Machine characteristics
Pictures from more degree
Machine dimension
Welding samples
