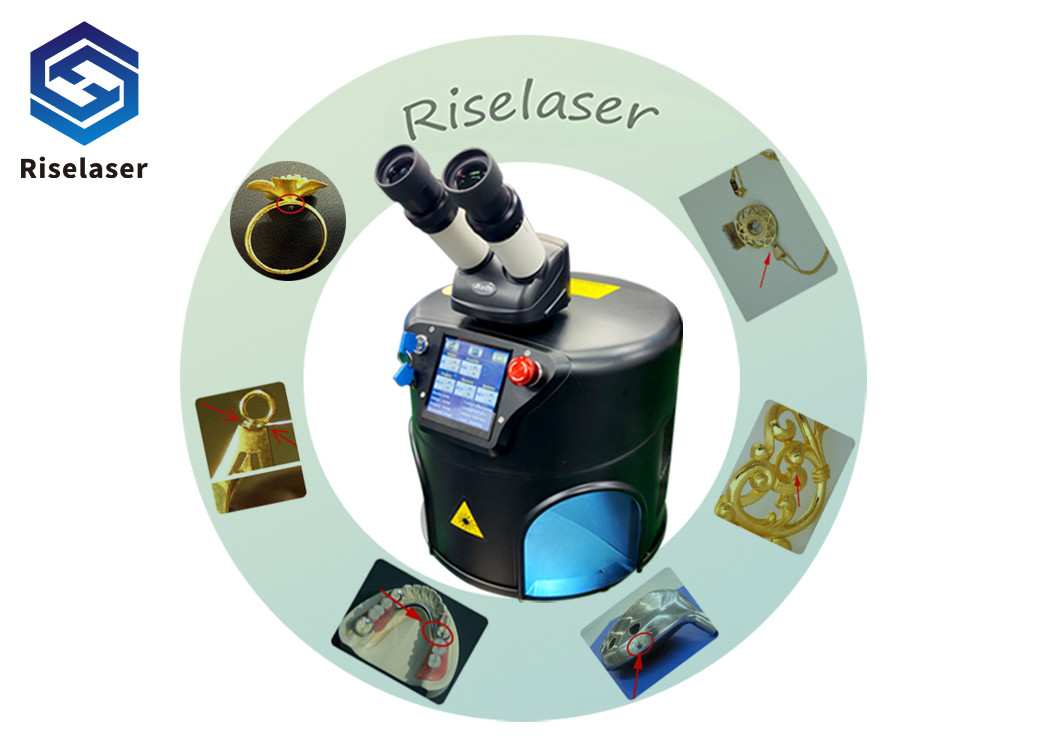

MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen

  • MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen
  • MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number Magic Box
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Function Jewelry Soldering Key Words Laser Jewelry Soldering
Host Power Consumption 1.5kw Operating Mode Touch Control
Machine Dimension Ø295mm X H282mm Machine Weight 13.5kg
Pulse Width 0.1-10ms Aiming And Positioning Microscope + HD Digital CCD Camera System
Maximum Laser Pulse Energy 40J Pump Source Xenon Lamp
Display Touch Screen 10X High Quality Colorful Digital CCD Operating Language English, Chinese
Electrical Connection Values AC220V ± 5%, 50HZ / 60HZ Wooden Package Dimension 40x45x48CM
Highlight

Jewelry soldering machine 1.5kw

,

Digital screen Jewelry soldering machine

,

AC220V laser soldering machine for jewelry
Leave a Message
Product Description

Jewelry soldering machine MINI Laser Jewelry soldering with Digital screen



Machine specification



Model Magic Box
Laser Type 1064nm YAG Laser
Beam Diameter 0.2-2.0mm
Pulse Width 0.1-10ms
Frequency 1.0~10.0Hz Continuously Adjustable
Maximum Laser Pulse Energy 40J
Host Power Consumption ≤1.5KW
Cooling System Convective air cooling
Pump Source Xenon lamp
Aiming and Positioning Microscope + HD digital CCD camera system
Operating Mode Touch Control
Display Touch Screen 10X high quality colorful Digital CCD
Operating Language English, Chinese
Electrical Connection Values AC220V ± 5%, 50HZ / 60HZ
Machine Dimension Ø295mm x H282mm
Wooden Package Dimension 40x45x48CM
Machine Net Weight 13.5KG
Operating Environmental Temperature ≤45℃
Humidity < 90% non-condensing
Application Welding and repairing all kinds of jewelry and metal parts





Main features of the machine



1. Compared with ordinary laser spot welding machines, Magic Box has a fast boot time, and it only takes 2-5 seconds to enter the working state, which improves work efficiency and improves customer experience.

MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 0
2. Magic Box adopts air-cooled cooling method, built-in condensate, easy to start, no need to connect other equipment, no need to add cooling water, and it can be used after power on.

MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 1
3. The operation interface is simple, enter the boot interface to change the required parameters, such as energy percentage, pulse frequency, light spot

MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 2
4. The weight is only 13.5KG. Currently the smallest and lightest spot welder in the world, you can easily carry it to various shopping malls for custom repair work for your customers. Transportation and storage costs are thus greatly reduced.
This machine is equipped with a digital screen. Different from the previous spot welding machines, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable and can observe more carefully.
3. It is small in size and has a working energy of 40J, which can easily cope with welding work in various industries.
4. The machine is equipped with a high-definition 10 times magnification microscope for professional welding operators
5. Easy to use for both novice and mature operators







Machine characteristics



MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 1MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 4



Pictures from more degree

Magic box compare with a mobile phone

MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 5



Machine dimension



MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 6



Application



Jewelry laser welder widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 7







More display

MINI Jewelry Soldering Machine 1.5kw AC220V With Digital Screen 8





Machine operation display
