Handheld Laser Soldering Machine 1500w GW CW Fiber Laser For Iron
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Soldering Iron | Key Words 2 | Handheld Laser Soldering Machine 1500w |
|---|---|---|---|
| Function | Welding, Cleaning And Cutting | Laser Type | GW CW Fiber Laser Or Raycus/ Max |
| Laser Power | 1500w/2000W | Machine Weight | 160KG |
| With Wire Feeder | Yes | Fiber Wire Length | 10M-15M |
| Machine Size | 745*516*710mm | Electrical Supply | 220±10% V AC, 50/60Hz |
| Highlight | Handheld Laser Soldering Machine,GW CW Fiber laser soldering machine,Iron Handheld Laser Welding Machine |
||
Product Description

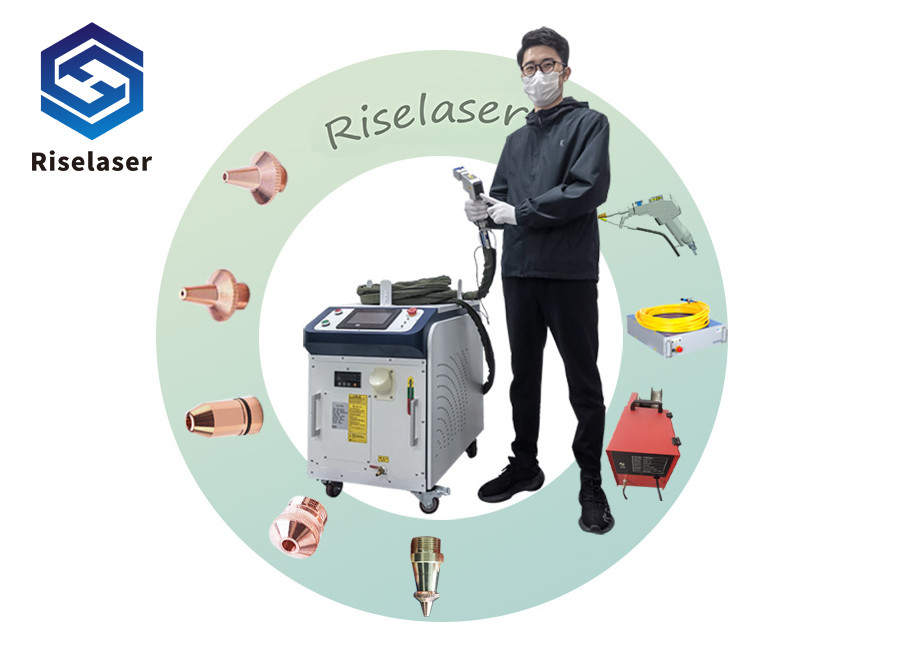

Soldering Iron with handheld laser soldering machine 1500w
This MINI RL-Y1500handheld laser soldering machine is specially developed for mid to high end customers
Compared with the handheld welding machines of the same specification on the market, this machine is not only small in size, light in weight, but also more powerful in performance. It integrates welding, cutting and cleaning in one.
The three functions are combined into one, which greatly enriches the functions and saves the cost.
In addition, the welding head is equipped with a unique touch screen display, which is convenient for operation to understand the working parameters at any time, and change the parameter settings according to the situation and needs.
Specification
| Laser Beam | 1500watt GW Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm |
| Cooling | Built-in Industrial Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 0.75kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 745*516*710mm |
| Weight | 160kg |
Main components of this machine
Automatic wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm
Support welding methods
Laser head
With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device
Water cooling device
Built-in industrial chiller, no external chiller required
Built-in water temperature alarm function, safe production
Dual temperature dual control
Packing details
Machine Video
Working Samples for Cleaning
Working samples for welding
