AIO Pro 20w Laser Marking Machine Highly Integrated EZCAD / JCZ Software Control

AIO Pro 20w laser marking machine with highly integrated design

This small fiber laser marking machine is equipped with genuine JCZ marking software, which is specially developed for this machine, and has user-friendly parameter settings, which can simply call up the desired marking parameters for different materials. Just a few simple steps, the mini fiber laser engraving machine will enter the working mode.

This machine has a built-in camera, which can be controlled by software to lock the marking position you want

Machine specification

Machine Features

	Integrated design This is an all-in-one machine, the whole machine adopts integrated laser, galvanometer, optical path, etc. With it, the whole marking machine is brought with it. The size of the whole machine is only 6.7KG. The volume is not much larger than a bottle of water.   When in use, you only need to connect a computer with USB, and then the marking software can start to operate

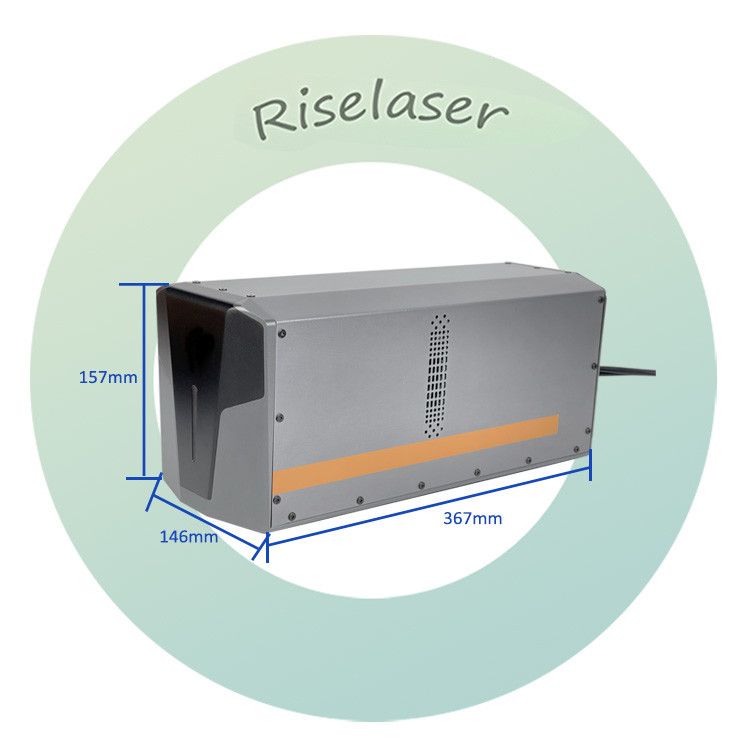

	Small dimension Such a small marking machine, take it wherever you go
Scanner High speed Imported laser scanning system enables the marking speed of small laser marking machine to reach 7000mm/s. 6. High precision: high precision, repositioning accuracy is 0.002mm. Energy saving. Photoelectric conversion efficiency is as high as 70%. Max marking range: 170*170mm   Marking speed. Built-in camera, easy to see and set the position to be marked
It can be equipped with different marking stands, freely design the marking method you want, and can also be integrated into the production line

Optional structure

Rotate

Different diameters of rotation are available in 50mm, 80mm, 100mm, 150mm and other sizes to meet customer needs.
There are special circular inner and outer marking turntables. Special rotation of the pen or light bulb. We can also customize other types of rotations for customers.

Workbench

All machines come standard with an aluminum table to hold tools.
Option table: 2D table, 3D table, jewelry cutting table, also special table can be customized according to your needs.

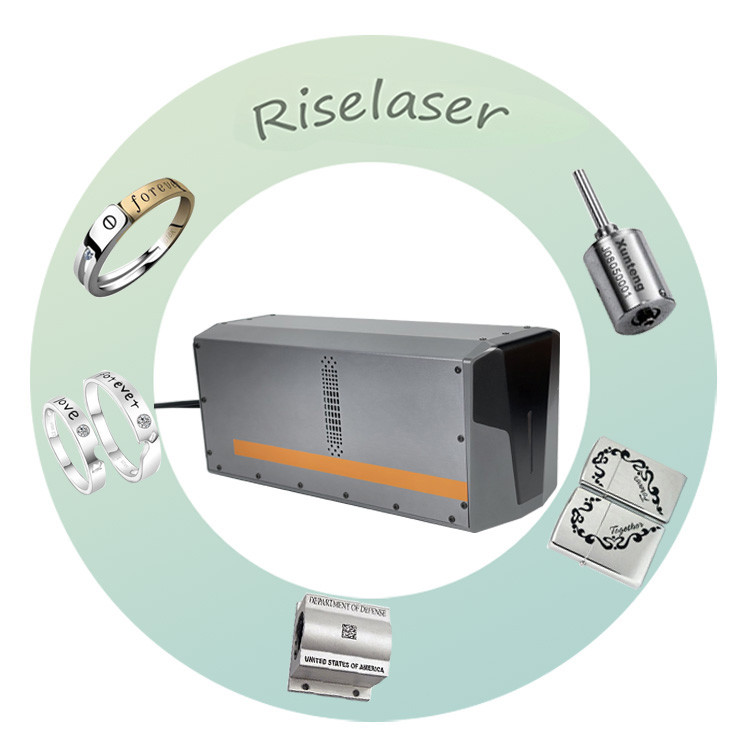

Application

Laser fiber laser marking machine for electronic components, integrated circuits (IC), electrical appliances, mobile communications, metal products and alloys (iron, copper, aluminum, magnesium, zinc and all other metals), rare metals and alloys (gold, silver) , titanium), tool accessories, precision instruments, glasses and clocks, jewelry accessories, auto parts, plastic buttons, building materials, PVC pipes, medical equipment and other industries. Metal oxides (all kinds of metal oxides are acceptable), special surfaces (phosphor , aluminum anodizing, electroplating surface), ABS material (electrical housing, daily necessities), ink (translucent keys, printed matter), epoxy resin (encapsulation of electronic components, insulation).
