Magic Box Jewelry Welding Machine 40J Touch Screen Laser Machine For Jewelry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Function | Jewelry Welding | Key Words | Laser Machine For Jewelry |
|---|---|---|---|
| Operating Mode | Touch Screen Control | Machine Dimension | Ø295mm X H282mm |
| Machine Weight | 13.5kg | Pulse Width | 0.1-10ms |
| Aiming And Positioning | Microscope + HD Digital CCD Camera System | Maximum Laser Pulse Energy | 40J |
| Pump Source | Xenon Lamp | Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ |
| Wooden Package Dimension | 40x45x48CM | Packing Weight | 12.5kg |
| Highlight | 40J Laser machine for jewelry,Touch Screen Laser machine for jewelry,Xenon lamp jewelry welding machine |
||
Product Description

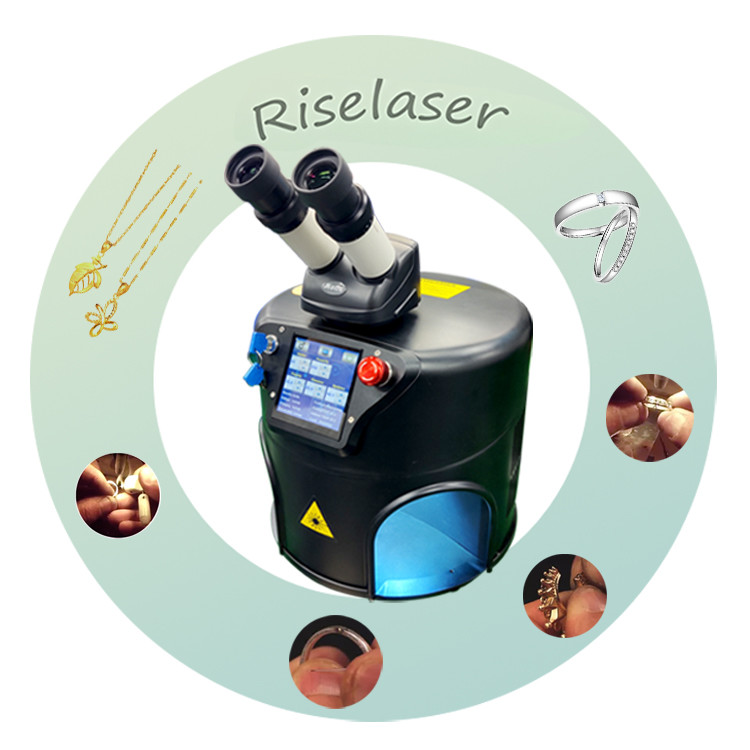

Laser machine for jewelry Magic box jewelry welding machine 40J
Main features of the machine
1. This is the smallest and lightest spot welding machine in the world, weighing only 13.5KG, which is not much bigger than a mobile phone, which greatly simplifies your work. You can easily carry it to various stores to perform custom repair work for your customers. Transportation and storage costs are thus greatly reduced.
2. The machine is equipped with a digital screen. Different from the previous spot welding machine, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable and observe more carefully.
3. The volume is small, but the working energy can reach 40J, which can easily cope with welding repair work in various industries.
4. This machine has a high-definition 10x magnification microscope, which uses the well-known brand Motec, which displays high-definition and does not hurt the eyes.
5. Easy to use for both novice and expert
6. The machine starts up quickly
Machine specification
| Model | Magic Box | |
| Laser Type | 1064nm YAG Laser | |
| Beam Diameter | 0.2-2.0mm | |
| Pulse Width | 0.1-10ms | |
| Frequency | 1.0~10.0Hz Continuously Adjustable | |
| Maximum Laser Pulse Energy | 40J | |
| Host Power Consumption | ≤1.5KW | |
| Cooling System | Convective air cooling | |
| Pump Source | Xenon lamp | |
| Aiming and Positioning | Microscope + HD digital CCD camera system | |
| Operating Mode | Touch Control | |
| Display Touch Screen | 10X high quality colorful Digital CCD | |
| Operating Language | English, Chinese | |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | |
| Machine Dimension | Ø295mm x H282mm | |
| Wooden Package Dimension | 40x45x48CM | |
| Machine Net Weight | 13.5KG | |
| Operating Environmental Temperature | ≤45℃ | |
| Humidity | < 90% non-condensing | |
| Application | Welding and repairing all kinds of jewelry and metal parts | |

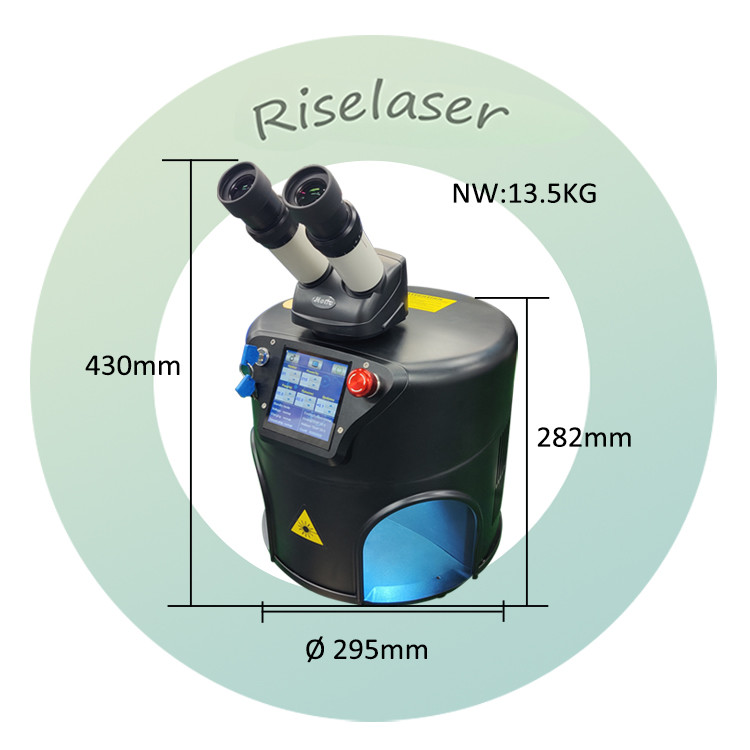

Machine dimension
Machine characteristics
Application
Jewelry laser welder widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.
Machine operation display
