Mini Yag Laser Welding Machine Compact Size Laser Soldering Machine For Jewellery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Function | Jewelry Soldering | Key Words | Yag Laser Welding Machine |
|---|---|---|---|
| Operating Mode | Touch Control | Machine Dimension | Ø295mm X H282mm |
| Machine Weight | 13.5kg | Pulse Width | 0.1-10ms |
| Aiming And Positioning | Microscope + HD Digital CCD Camera System | Maximum Laser Pulse Energy | 40J |
| Applicaiton | Welding Ring | Display Touch Screen | 10X High Quality Colorful Digital CCD |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | Wooden Package Dimension | 40x45x48CM |
| Highlight | Mini yag laser welding machine,Jewellery yag laser welding machine,Compact Size laser soldering machine |
||
Product Description
MINI yag laser welding machine laser soldering machine for jewellery with compact size
Product Description
The new digital microprocessor used in the Magic Box works 10 times faster than traditional systems. And can accurately measure high energy.
This makes the welder Magic Box a formidable machine while remaining constant and very precise when firing repeatedly.
Machine Features
Real-time and automatic regulation of power supply.
Dual light LCD touch screen shutter.
The laser light is automatically controlled to automatically adjust the energy.
Integrated internal camera
Better cooling chamber and efficient air cooling system.
6 preset pulse shaping programs
Argon gas nozzle directly on the welding point
Air nozzles for cooling workpieces in the working chamber
Large drawer for chamber cleaning
Low noise, low maintenance 50 memory parameters
Machine specification
| Model | Magic Box | |
| Laser Type | 1064nm YAG Laser | |
| Beam Diameter | 0.2-2.0mm | |
| Pulse Width | 0.1-10ms | |
| Frequency | 1.0~10.0Hz Continuously Adjustable | |
| Maximum Laser Pulse Energy | 40J | |
| Host Power Consumption | ≤1.5KW | |
| Cooling System | Convective air cooling | |
| Pump Source | Xenon lamp | |
| Aiming and Positioning | Microscope + HD digital CCD camera system | |
| Operating Mode | Touch Control | |
| Display Touch Screen | 10X high quality colorful Digital CCD | |
| Operating Language | English, Chinese | |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | |
| Machine Dimension | Ø295mm x H282mm | |
| Wooden Package Dimension | 40x45x48CM | |
| Machine Net Weight | 13.5KG | |
| Operating Environmental Temperature | ≤45℃ | |
| Humidity | < 90% non-condensing | |
| Application | Welding and repairing all kinds of jewelry and metal parts | |
Main features of the machine
1. Compared with ordinary laser spot welding machines, Magic Box has a fast boot time, and it only takes 2-5 seconds to enter the working state, which improves work efficiency and improves customer experience.
2. Magic Box adopts air-cooled cooling method, built-in condensate, easy to start, no need to connect other equipment, no need to add cooling water, and it can be used after power on.
3. The operation interface is simple, enter the boot interface to change the required parameters, such as energy percentage, pulse frequency, light spot

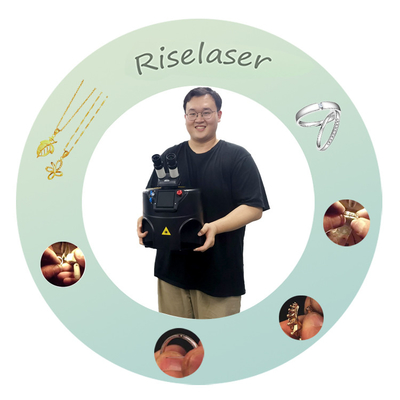

4. The weight is only 13.5KG. Currently the smallest and lightest spot welder in the world, you can easily carry it to various shopping malls for custom repair work for your customers. Transportation and storage costs are thus greatly reduced.
This machine is equipped with a digital screen. Different from the previous spot welding machines, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable and can observe more carefully.
3. It is small in size and has a working energy of 40J, which can easily cope with welding work in various industries.
4. The machine is equipped with a high-definition 10 times magnification microscope for professional welding operators
5. Easy to use for both novice and mature operators
Machine characteristics
Pictures from more degree

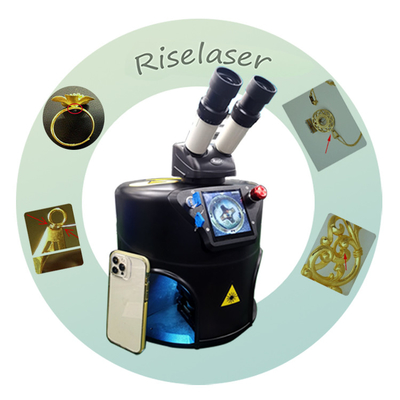

Magic box compare with a mobile phone
Machine dimension
Laser application
Easily weld precious and other metals including platinum, titanium, silver and palladium.
Solder components with solder material so that they are clear, sharp and do not need to be cleaned again.
Repair casting defects such as blowholes or breakage. By simply soldering these areas with wire solder.
Machine package
Machine operation display
