Portable 20w Fiber Laser Engraving Machine Stainless Steel Laser Marking Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | 20w Fiber Laser Engraving Machine | Average Output Power | 20W |
|---|---|---|---|
| Laser Brand | Max | Machine Net Weight | 6kg |
| Machine Size | 250X135X195 Mm | Cutting Head Size | 250X120X260 Mm |
| Marking Area | 100*100mm | Built In CCD | YES |
| Engraving Speed | ≤10000mm/s | Cooling Mode | Air Cooling |
| Power Supply | 220V/50Hz Or Battery | Battery Wroking Time | 6-8 Hours |
| Highlight | Air Cooling fiber laser engraving machine,Portable fiber laser engraving machine,20w stainless steel laser marking machine |
||
Product Description
6KG -protable animal ear tag laser marking machine fiber laser etching machine 20w
Machine sepcifications
| Model | RL-20H | |
|
Laser parameters |
Laser Source | MAX 20W |
| Output power | 20W | |
| Beam quality M22 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | |
| Laser wavelength | 1064±5 | |
| Output power stability | ＜3% | |
| Design life | About 100,000 working hours (non-lifetime) | |
|
Optical properties |
Marking range | 80mm |
| Engraving depth | ≤1mm (depending on power and time) | |
| Engraving speed | ≤10000mm/s | |
| Repeat accuracy | ±0.002 | |
| Minimum marking line width | 0. 1mm | |
| Minimum character height | 0.15mm | |
|
Use environment |
Battery life | It can work for 6-8 hours under normal use |
| cooling method | Built-in air cooling | |
| System power supply | 500W / 100-240V / 50/60Hz | |
|
Other parameters |
Operating system | linux operating system |
| File format | The software supports text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input) | |

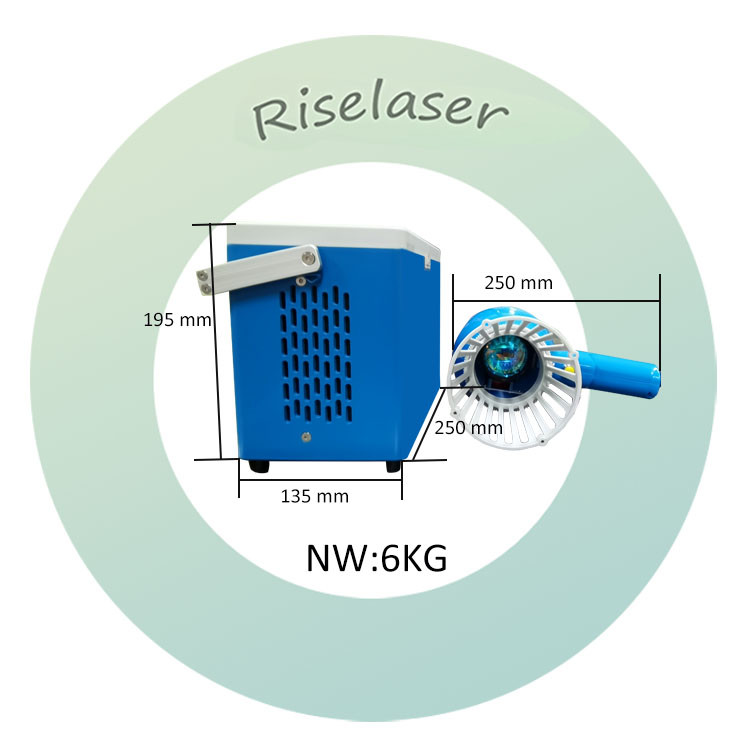

| Dimensions | Control chassis: 250X135X195 mm Marking head: 250X120X260 mm | |
| Total Weight | Machine 6kg, marking head 1.25kg | |
Machine Features
Built-in battery, movable marking, not limited by working area
Long battery life, 6-8 hours working time
Using 24V lithium battery to achieve complete wireless, normal use can work continuously for 6-8 hours, with strong battery life.
Lightweight marking head
Put it on and you can mark without adjusting the gathering range
Custom marking on a variety of metals and some plastics
Automatic start and stop design, saving power and consumption
Added automatic start and stop design,
automatically shut down after 60 seconds of standby, click the screen to restart; the standby time can be customized, effectively saving unnecessary power consumption
Eight-core CPU, configure linux system
The host uses an 8-core processor and is equipped with a Linux system with a high security level. Performance
Stable, fast response, not easy to attack by virus and stop
Diversified marked content and support for language customization
Rear USB interface, software support: text, pattern, QR code, barcode, serial number, graphics and other marking content, support operating system language customization
LOGO can be customized
The startup page of the operating system and the LOGO in the upper left corner can be customized
The machine can be charged while working
Increase the power control design, the device works while charging and playing, realizes
Continuous work to improve processing efficiency

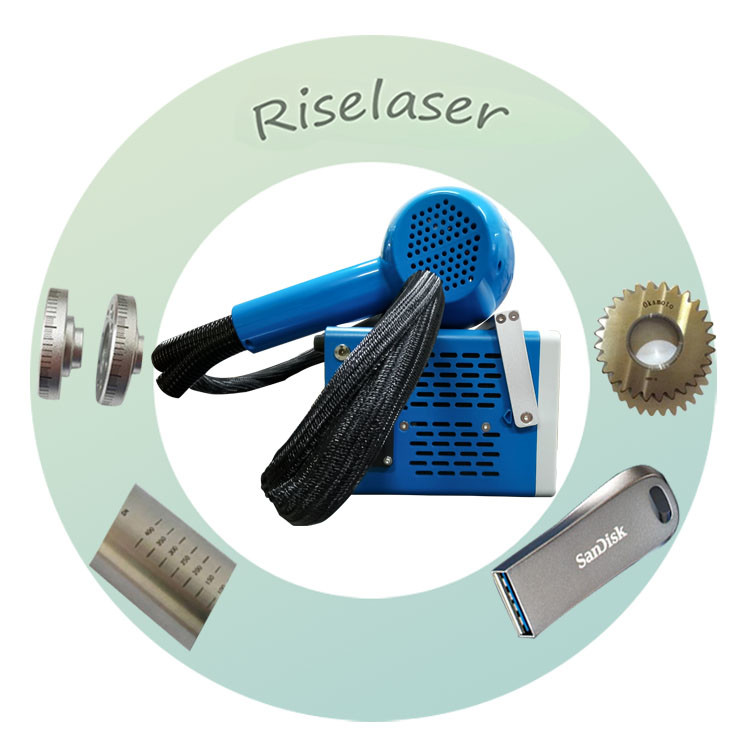

Marking Samples

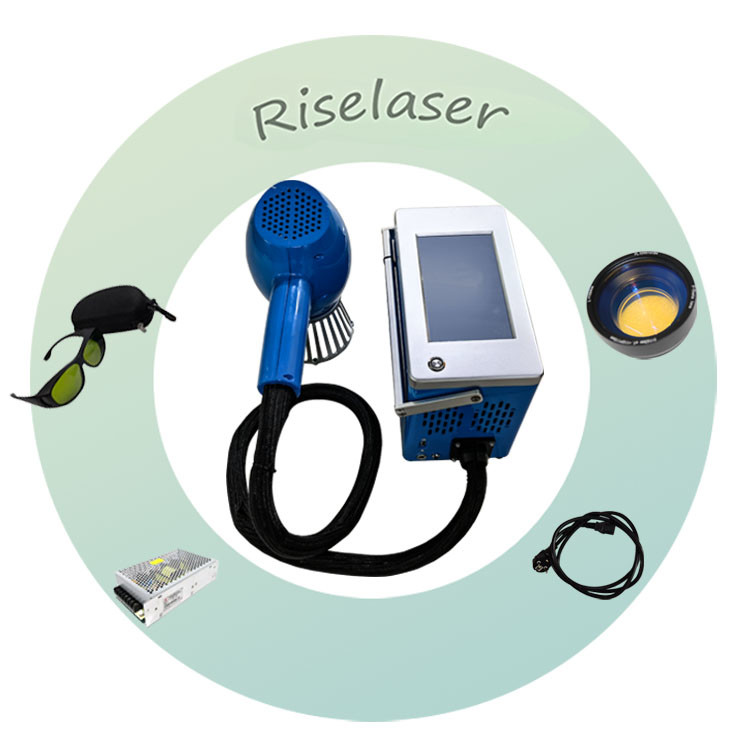

Packages
