200w Industrial Laser Cleaning Machine For Rust Removal Manual / auto Operation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Laser Cleaning System | Laser Power | Max Pulsed Fiber Laser 200w |
|---|---|---|---|
| Cooling Method | Air Cooling | Application | Cleaning Machine For Rust Paint Oil Dust Remove |
| Fiber Cable Length | 3 / 5 M | Operation | Manual/auto |
| Control Method | Control Panel | Machine Size | 411*538*685mm |
| Machine Weight | 80KG | Maximum Single Pulse Energy (mJ) | 1 |
| Packing Weight | 92kg | ||
| Highlight | 200w Industrial Laser Cleaning Machine,Rust Removal Industrial Laser Cleaning Machine,laser cleaning machine for rust removal |
||
Product Description
Laser Cleaning System In Top Quality Industrial Laser Cleaning Machine For Laser Cleaning Rust Removal
Available model
100w Laser Cleaning System- Air cooling pulse laser cleaner
200w Laser Cleaning System- Air cooling pulse laser cleaner
200w Laser Cleaning System – Water cooling pulse laser cleaning machine
300w Laser Cleaning System-Water cooling pulse laser cleaning machine
500w Laser Cleaning System-Water cooling pulse laser cleaning machine
Detail specification
| Main technical parameters of laser cleaning system | |
| parameter name | parameter value |
| Laser type | Pulsed fiber laser source |
| Maximum output power (W) | 200/100 |
| Center wavelength (nm) | 10641064 |
| Fiber Beam Quality M2 | less than 1.8 |
| Power adjustment range (%) | 10-100 |
| Output power instability (%) | less than 5 |
| Laser pulse frequency (kHz) | 20-2000 |
| Pulse length (ns) | 10, 30, 60, 240 for optional |
| Maximum single pulse energy (mJ) | 1 |
| Conductive fiber length (m) | 3 or 4 |
| Laser protection class | 4 |
| cooling method |
Air cooling |
Laser rust removal gun
The biggest advantage of our laser rust removal gun is: light weight, comfortable hand feeling and stable use
Laser rust removal gun brand: Riselaser
Cable length: 3/5m
Cleaning head weight ≈ 0.9kg,
This handheld laser rust removal gun is highly versatile, adopts high-quality precision optical components, and the beam quality emitted by the gun is excellent and stable.
Laser rust removal, cool shape, ergonomic design, comfortable grip.
In order to make the laser rust remover work more efficiently, our development team has developed a double protection lens design to make it have better dust-proof performance.
Straight point, making cleaning easier for cleaners
The adjustment method is simple and fast, and the structure design is compact
Reliable safety performance, using contact light to improve safety protection level
Machine diameter of 200W model

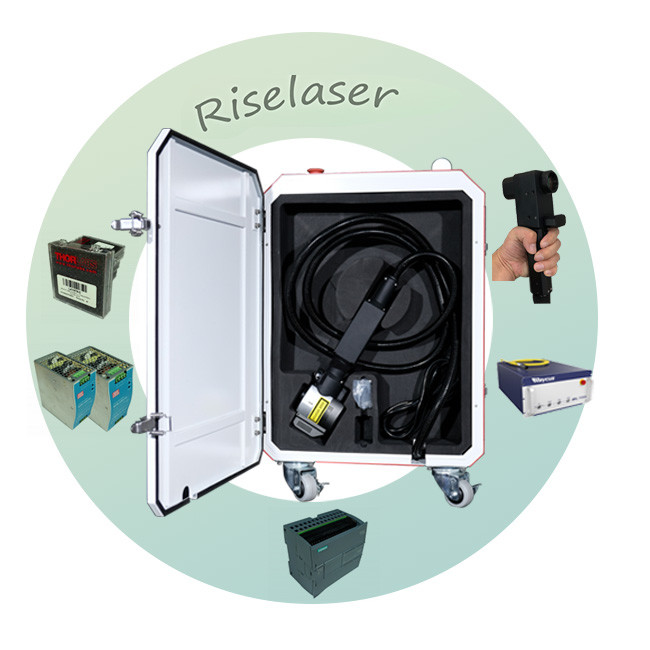

Machine package
Why you choose this machine
1. The laser cleaning system is a "green" cleaning method. Using this rust-removing laser instead of chemicals and cleaning fluids, the cleaned garbage is solid powder. This laser cleaning system rust removal laser is inexpensive because it is small in size, easy to store, and recyclable, which can easily solve the environmental pollution problem caused by chemical cleaning.
2. The traditional cleaning method is often contact cleaning. There is mechanical force on the surface of the object to be cleaned, and the surface of the damaged object or the cleaning medium is attached to the surface of the object to be cleaned and cannot be removed, resulting in secondary pollution. The non-grinding and non-contact of the Pulsed fiber laser cleaning machine makes these problems easy to solve;
