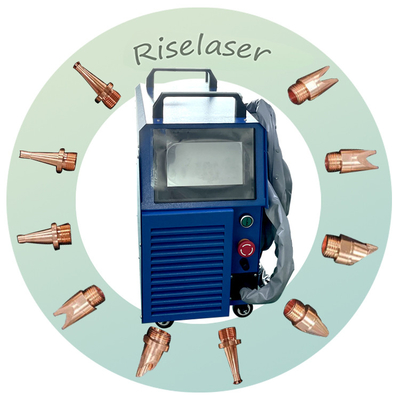

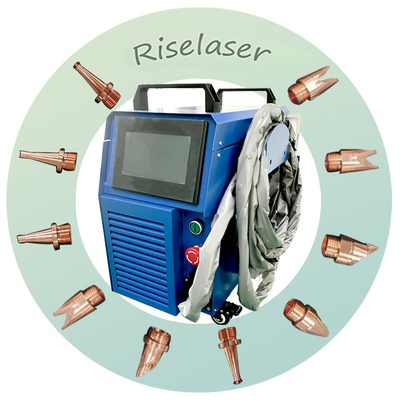

800W 1200W 1500W 2000W Air Cooling 1000w Handheld Laser Welding Machine For Stainless Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Hand Held Welding Machine | Key Words 2 | Stainless Steel Laser Welding |
|---|---|---|---|
| 3 In 1 Function | Welding, Cleaning And Cutting | Machie Features | Air Cooling |
| Laser Type | Continues Laser Source | Laser Power | 1000W |
| Machine Dimension | 67*30*55CM | Machine Weight | 35KG |
| Laser Head | SUP/QILIN/OSPRI | Fiber Wire Length | 6M |
| Power | Single Phase | Electrical Supply | 220±10% V AC, 50/60Hz |
| Highlight | 1000W Handheld Laser Welding Machine,Stainless Steel Handheld Laser Welding Machine,1080nm hand held welding machine |
||
Product Description
Air cooling 1000w hand held welding machine for stainless steel laser welding with factory price
What are the advantages of Air cooling 1000w hand held welding machine?
Unique air-cooled design: Using modular laser devices, the machine is highly integrated, and the size of the laser welding system is infinitely reduced. Can replace TIG welding with high quality
Wide welding range: Air cooling 1000w hand held welding machine is equipped with 10m-15m original optical fiber cable, which overcomes the limitation of workbench space and can be used for outdoor welding and long-distance welding. 20m ultra-long power cord can also be customized for processing.
Easy to use and flexible: The bottom of the laser welding machine is equipped with pulleys, which is easy to move, and the working position can be adjusted at any time, which is suitable for various working environments.
A variety of welding methods: welding at any angle can be achieved: splicing welding, butt welding, vertical welding, lap welding, oblique welding, stub welding, etc. In addition, cutting work can also be realized, mainly cutting 0-4mm thin metal. You just need to change the welding copper tip to cutting copper tip, which is very convenient.
Machine Main Specification
| Laser System | RL-F1000 |
| Laser Type | 1080nm Fiber Laser |
| Nominal Laser Power | 1000W |
| Cooling System | Air Cooling |
| Way of working | Continuous |
| Speed range of welder | 0~120 mm/s |
| Focal Spot Diameter | 0.5mm |
| Ambient temperature range | -20℃~45 ℃ |
| Environmental humidity range | <70% without condensation |
| Welding thickness | 0.5-3mm |
| Welding gap requirements | ≤1.2mm |
| Operating Voltage | AC 220V |

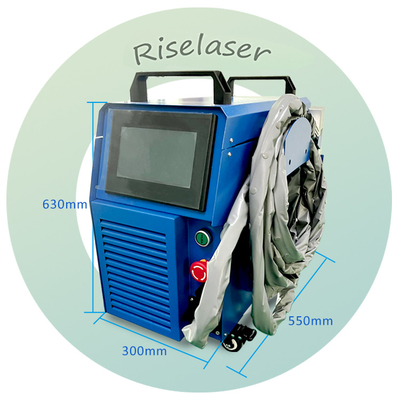

| Machine Dimensions | 67*30*55CM |
| Net Weight | 35kg |
| Fiber length | 6m |
Application of Air cooling 1000w hand held welding machine
Fiber laser welding industry: mainly used in aviation, machinery, electronics, electrical appliances, hardware, automobiles, etc.
Air cooling 1000w hand held welding machines are also popular in auto parts: hydraulic ejectors, filters, sensors, solenoid valves, etc.
Kitchen and bathroom appliances: 1000w laser welding machine is used for kettles, faucets, hooks, sinks, range hoods, etc.
Air cooling 1000w hand held welding machine is used in energy, lighting and building materials industries: such as welding of heat-conducting plates for solar water heaters.
Welding materials: laser welding stainless steel, iron, copper, aluminum, zinc and some alloy materials, the thicker the material, the greater the required laser power
