1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source

  • 1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source
  • 1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source
  • 1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words 3 In 1 Hand Held Laser Welding Machine Key Words 2 Laser Cutting Welding Machine
3 In 1 Function Welding, Cleaning And Cutting Laser Type Raycus/ Max
Laser Power 1000w/1500w/2000W Machine Weight 120KG
With Auto Wire Feeding System Packing Weight 160KG
Cooling System Built-in Water Chiller+air Cooling Fiber Wire Length 10M/15m
Power Single Phase/three Phase Electrical Supply 380/220±10% V AC, 50/60Hz
Highlight

Mini Hand Held Laser Welding Machine

,

Raycus hand held laser welding machine

,

1080nm laser cutting welding machine
Leave a Message
Product Description

MINI size 3 in 1 hand held welding machine laser cutting welding machine 1500w 2000w



Specification

Laser Beam 1500watt/2000w GW Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm
Cooling Built-in Industrial Chiller(Purified water or distilled water)
Cable length Fiber cable lenght 10m, Operable cable length 8m
Cleaning head 0.75kg cleaning head
Wobble width Adjustable 20-100mm
Protection Gas compressed gas Pressure 5-10L/min
User Interface For Laser Control:Power,Frequency, Frequency,Spot width
Language Chinese-English
Safty Class 4 laser equipment,Machine with CE,FDA certificate.
The machine comes with error alarm function,emergency stop,chiller alarm.
Power Requirement 220±10% V AC, 50/60Hz
Operating Ambient Temperature(℃) 10~40℃
Humidity (%) 90
Dimensions(W×H×D) 98*54*69cm
Weight 120kg

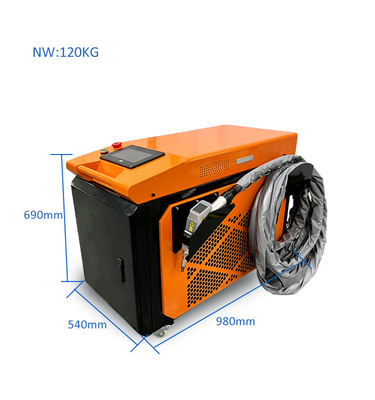

Machine size

1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source 0





Laser head

With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device



Laser source
China's top brand fiber laser source Max, high power. High energy density, low heat input and small thermal deformation.

1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source 1



Automatic wire feeding
No consumables, small size, flexible processing, low operation and maintenance costs.

1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source 2

Water cooling device
Fast cooling, fine weld structure and good joint performance can be welded.



Laser welding head
Intelligent high frequency swing welding head. Can be widely used in complex industries such as metal equipment, stainless steel home furnishing, etc.
Irregular welding process.

1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source 3

Control panel
Xinghong control system, automatic layout optimization, to ensure high-speed operation of the whole machine.



Working samples

1500W 2000W 3000W Mini Hand Held Laser Welding Machine Laser Cutting Welding Machine With Raycus Laser Source 4
