Riselaser Robotic Arm Laser Beam Welding Equipment Auto Welding Machine For Car

  • Riselaser Robotic Arm Laser Beam Welding Equipment Auto Welding Machine For Car
  • Riselaser Robotic Arm Laser Beam Welding Equipment Auto Welding Machine For Car
  • Riselaser Robotic Arm Laser Beam Welding Equipment Auto Welding Machine For Car
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Laser Beam Welding Equipment Key Words 2 Auto Welding Machine
3 In 1 Function Automatic Welding Laser Type Continuous Fiber Laser Source
Laser Power 1000w/1500w/2000W/3000w With Auto Wire Feeding System
Cooling System Built-in Water Chiller+air Cooling Fiber Wire Length 10M/15m
Power Single Phase/three Phase Electrical Supply 380/220±10% V AC, 50/60Hz
Highlight

Robotic arm laser beam welding equipment

,

15m laser beam welding equipment

,

Robotic arm auto welding machine
Leave a Message
Product Description

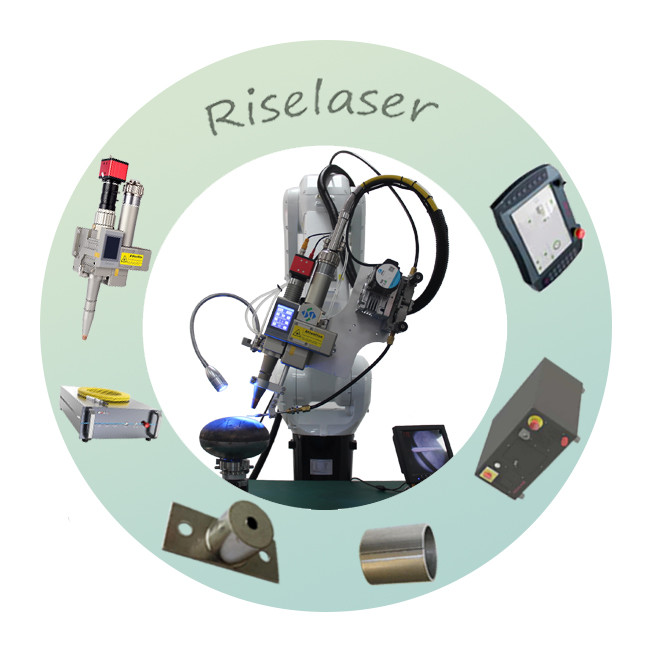

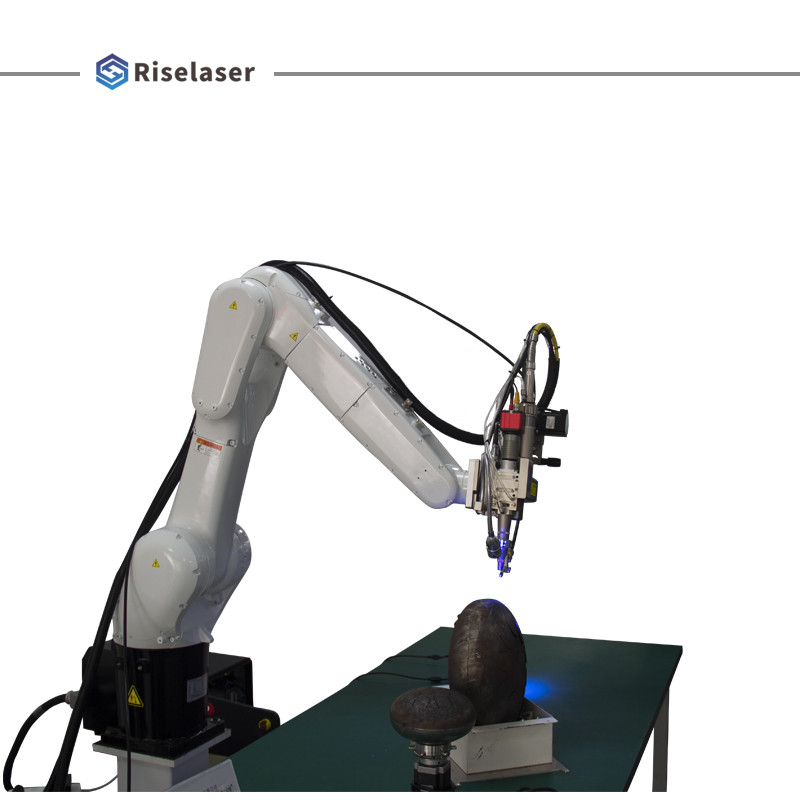

Riselaser Robotic arm laser beam welding equipment auto welding machine for car welding



Machine Features

Riselaser offers special solutions, the laser device is paired with an industrial robot arm, the welding torch is moved into position, and the workpiece is supported by a welding robot, such as a positioner or a rotator.


After selecting the most suitable welding process for your application and requirements, Riselaser provides you with an integrated automated welding system, using state-of-the-art welding robots and peripherals, combined with modular electromechanical components in the form of welding torches, slides, wire feeders, etc.



Everything is perfectly synchronized via our dedicated welding control system, giving you the guarantee of a perfectly repeatable and traceable automated welding process.



To quality industrial robot

High pricision

Self-developed control system

Riselaser Robotic Arm Laser Beam Welding Equipment Auto Welding Machine For Car 0



Laser System



Laser power 1000/1500/2000W
Center wavelength 1070+-5nm
Laser frequency 50Hz-5KHz
Work patterns Continuous
Electricity demand AC220V
Output fiber length 5/10/15m (Optional)
Cooling method Water Cooling
Cooling water temperature 5-45℃
Average consumed power 2500/2800/3500/4000W
Laser Energy Stability <2%
Air humidity 10-90%





Laser welding Head

Riselaser Robotic Arm Laser Beam Welding Equipment Auto Welding Machine For Car 1

Riselaser Robotic Arm Laser Beam Welding Equipment Auto Welding Machine For Car 2



Welding samples

Riselaser Robotic Arm Laser Beam Welding Equipment Auto Welding Machine For Car 3
