Industrial Rust Removal Laser Cleaning Machine 100w 200w Air Cooling Method
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Laser Rust Removal Laser Machine | Laser Power | Max Pulsed Fiber Laser 100W/200w300W/500W |
|---|---|---|---|
| Cooling Method | Air Cooling | Application | Industrial Laser Rust Removal |
| Fiber Cable Length | 3 / 5 M | Operation | Manual/auto |
| Control Method | Control Panel | Machine Size | 411*538*685mm |
| Machine Weight | 80KG | Maximum Single Pulse Energy (mJ) | 1 |
| Packing Weight | Plywood Box 92kg | ||
| Highlight | 100w rust removal laser cleaning machine,ISO rust removal laser cleaning machine,air cooling industrial laser cleaning machine |
||
Product Description
Air cooling Laser rust removal laser machine for industrial laser rust removal 100w 200w
Average output power: >100W,
maximum pulse energy: 1/1.5mj,
pulse frequency range: 20-2000kHz,
pulse width: 2-500ns,
output power instability: <5%,
cooling method: air cooling,
output beam diameter: 4.0 ±0.5
Detail specification
| Main technical parameters of laser cleaning system | |
| parameter name | parameter value |
| Laser type | Pulsed fiber laser source |
| Maximum output power (W) | 200/100 |
| Center wavelength (nm) | 10641064 |
| Fiber Beam Quality M2 | less than 1.8 |
| Power adjustment range (%) | 10-100 |
| Output power instability (%) | less than 5 |
| Laser pulse frequency (kHz) | 20-2000 |
| Pulse length (ns) | 10, 30, 60, 240 for optional |
| Maximum single pulse energy (mJ) | 1 |
| Conductive fiber length (m) | 3 or 4 |
| Laser protection class | 4 |
| cooling method |
Air cooling |

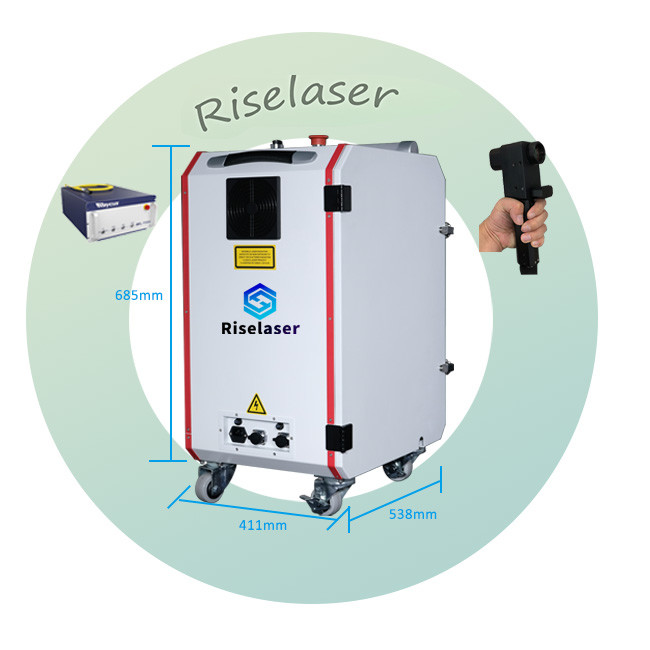

Machine diamension
Machine features
The hand-held laser cleaning machine is equipped with a 100W pulsed fiber laser as the cleaning light source. The laser head adopts a red light-assisted focusing design to find the focus position. It is equipped with a double pendulum lens, which solves the problems of inaccurate focusing and single adjustment method of the existing products in the market.
It has the advantages of manual focusing, surface cleaning, and good surface cleanliness. The laser cleaning machine is a portable integrated design, which is resistant to pressure, drop and wear. Luggage design can be carried on high-speed trains and planes
Removes organic and inorganic contaminants such as paint, rust, primers, cutting fluids, coatings, etc. Non-contact cleaning method; minimal impact on substrate; low energy consumption and low noise level
Portable, lightweight, flexible, adjustable, remote wireless control at any time. Simple operation, plug and play. Efficient cleaning without chemicals, media, dust and water.
One year warranty
