Air Cooling 800W 1200W 1500W 2000W Fiber Laser Welding Machine Portable For Stainless Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Fiber Laser Welding Machine | Key Words 2 | Welding Machine For Stainless Steel |
|---|---|---|---|
| 3 In 1 Function | Welding, Cleaning And Cutting | Machie Features | Air Cooling |
| Laser Type | 1000W MAX CW Laser Source | Laser Power | 1000W |
| Machine Dimension | 67*30*55CM | Machine Weight | 35KG |
| Laser Head | SUP | Fiber Wire Length | 6M |
| Power | Single Phase | Electrical Supply | 220±10% V AC, 50/60Hz |
| Highlight | Air cooling fiber laser welding machine,stainless steel fiber laser welding machine,portable 1000w fiber laser welding machine |
||
Product Description

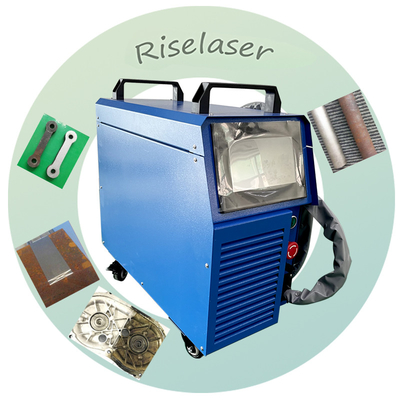

Air cooling 1000w fiber laser welding machine for stainless steel with portable size
Main features:
Laser power: 1000W;
Laser type: fiber laser, 1064nm;
Welding speed: 0-120mm/sec;
Cooling method: air cooling;
Working voltage: 220V/50/60HZ
Machine Features
The welding speed is fast and the cooling speed is fast. Welds are thin. Welded firmly. High welding precision. Depending on your machining needs, spot welding, straight seam welding, lap welding, girth welding and any orbital welding can be achieved. 360°C welding in any direction

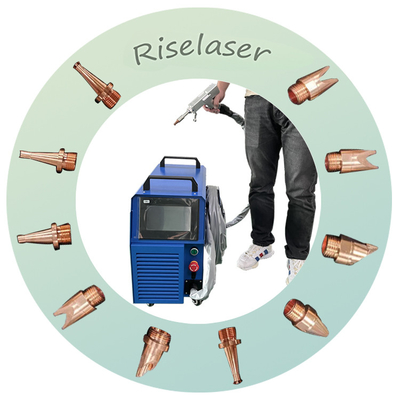

Oscillating welding head makes it easier to control welding width and depth. +Raycus or Max laser source +100% copper welding nozzle, integrated gas protection system. +Built-in air-cooled design+English operation panel. 10 different programs can be saved and quickly selected. + 6M fiber optic cable and universal casters are easy to move.
Machine Main Specification
| Laser System | RL-F1000 |
| Laser Type | 1080nm Fiber Laser |
| Nominal Laser Power | 1000W |
| Cooling System | Air Cooling |
| Way of working | Continuous |
| Speed range of welder | 0~120 mm/s |
| Focal Spot Diameter | 0.5mm |
| Ambient temperature range | -20℃~45 ℃ |
| Environmental humidity range | <70% without condensation |
| Welding thickness | 0.5-3mm |
| Welding gap requirements | ≤1.2mm |
| Operating Voltage | AC 220V |
| Machine Dimensions | 67*30*55CM |
| Net Weight | 35kg |
| Fiber length | 6m |
Scope of application
It is widely used in complex and irregular welding processes in kitchen cabinets, stair lifts, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel furniture, sheet metal and other industries.
