Portable Mini Backpack Laser Cleaning Rust Removal With Pulsed Fiber Laser 100w 50w
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Laser Cleaning Rust Removal | Laser Power | Pulsed Fiber Laser 100w 50w |
|---|---|---|---|
| Cooling Method | Air Cooling | Application | Laser Rust Removal, Paint Removal |
| Main Feature | Backpack Portable | Fiber Cable Length | 3 / 5 M |
| Control Method | Control Panel + Indicator Lamp | Machine Size | 411*538*685mm |
| Machine Weight | 8Kg/12.5kg | Machine Feature | Unique Double Protection Desgin |
| Highlight | Backpack Laser Cleaning Rust Removal,Pulsed Fiber Laser Cleaning Rust Removal,Portable backpack laser cleaning machine |
||
Product Description

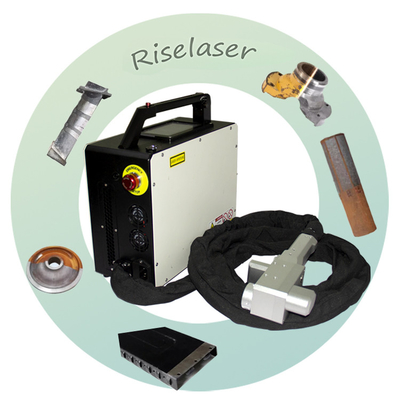

Portable MINI Backpack Laser Cleaning Rust Removal With Pulsed Fiber Laser 100w 50w
What is laser cleaning?
Laser cleaning is an effective method to remove dirt particles and films of different materials and sizes from solid surfaces. Laser cleaning is to form a laser beam with a specific spot shape and energy distribution after optical focusing and spot shaping of a continuous or pulsed laser with high brightness and good directionality. After the pollutant material absorbs the laser energy, a series of complex physical and chemical processes such as vibration, melting, combustion and even gasification will occur, and finally the pollutants will be detached from the surface of the material.
Even if the laser acts on the cleaned surface, most of it is reflected off without causing damage to the substrate, thus achieving the cleaning effect.
Features of this machine
The handheld RL-C50/100 mini is an air-cooled pulsed laser system for high performance, industrial grade, fast, precise and incredibly efficient laser cleaning.
The ultra-compact enclosure is designed as a professional-grade laser cleaning and finishing system for small areas that require delicate cleaning, paint stripping, and other finishing operations.
Special metal housings are interchangeable to meet customer needs and can be easily installed on any production line or robotic arm.
Machine specifications
| Model | RL-C100 mini | RL-C50 mini |
| Laser source | 100w pulsed fiber laser | 50w pulsed fiber laser |
| Laser Power | 100W | 50W |
| Fiber cable length | 3 M | 3 M |
| Laser Wavelength | 1064nm | 1064nm |
| Pulse Energy | 1mJ | 0.8 mJ |
| Pulse frequency | 20-400KHz | 45-170KHz |
| Cooling | Air cooling | Air cooling |
| Dimension | 38*15.2*28cm | 31.8*28.5*12.7cm |
| Weight | 12.5Kg | 8Kg |
| Beam width | 10-100mm | 10-100mm |
| Optional | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ |
| Voltage |
Single Phase AC 220V,50/60HZ |
Single Phase AC 220V, 50/60HZ |
Machine dimension:
Features and advantages:
Microprocessor controlled, the system is instantly ready when the key is turned on.
The touch screen allows you to choose from a variety of pre-designed cleaning modes.
No computer required.
Heavy-duty industrial design is based on years of experience manufacturing handheld lasers for marking and engraving applications. Delivered in a rugged metal enclosure for quiet environments.
Shipping
About our cleaning machine packing and shipping, firstly our workers will make sure your fiber laser cleaning machine is well tested and clean before packing, then add stretch film and spare parts for the whole machine for sweet protection, and finally we will make export Standard strong plywood case package according to your needs.
transportation:
We will provide various shipping methods.
1 by sea
2 by plane
3 By train
4 By truck
Packing
Application
