6J - 10J Laser Welding Jewelry Machine Air Cooling With QCW Laser Source

  • 6J - 10J Laser Welding Jewelry Machine Air Cooling With QCW Laser Source
  • 6J - 10J Laser Welding Jewelry Machine Air Cooling With QCW Laser Source
  • 6J - 10J Laser Welding Jewelry Machine Air Cooling With QCW Laser Source
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-Q60/100
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Function Laser Welding Jewelry Machine Key Words QCW Fiber Laser
Fluctuation ≤1.5% Machine Dimension 55*30*43cm
Machine Weight 20KG Model Pulsed
Pulse Width 0.5-50ms Maximum Laser Pulse Energy 6J-10J
Applicaiton Welding Jewelry Cooling Method Air Cooling
Highlight

10J Laser Welding Jewelry Machine

,

QCW Laser welding jewelry machine

,

Air Cooling jewelry laser welder
Leave a Message
Product Description

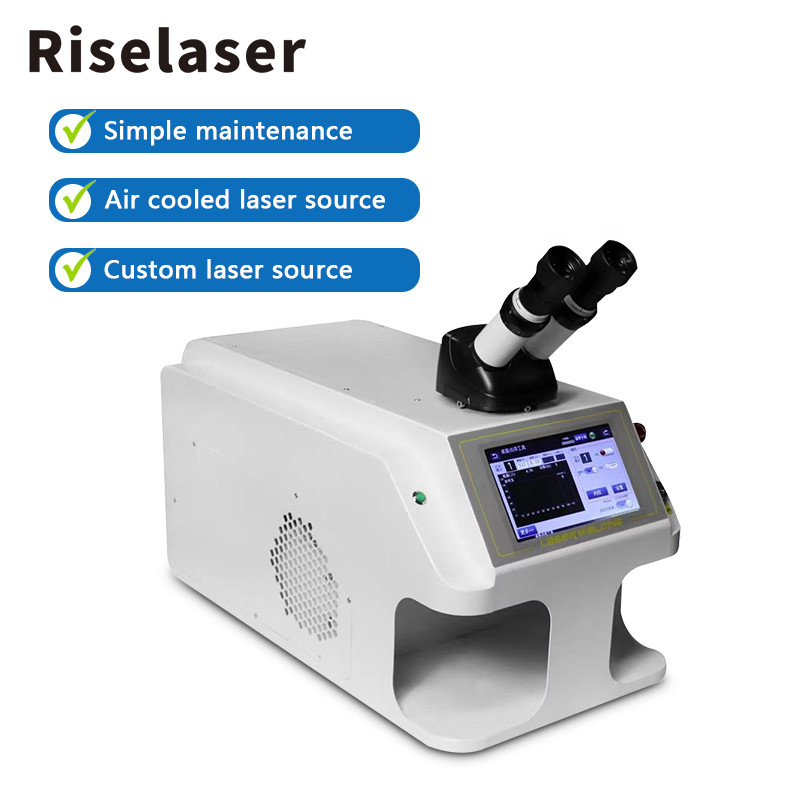

Laser welding jewelry machine with QCW laser source to replace YAG laser





Product Main features

  • The advantages of us using QCW laser source compare with YAG laser soruce
    1. The maintenance of the machine is simpler, no xenon lamp, no crystal
    2. Using an air-cooled laser source, avoid the problem to replace the pure water regularly. And save the cost for maintenance
    3. Using the customized laser source for this machine. Professional laser source, professional welding.






Machine specification

Tech Data RL-Q60 RL-Q100
Laser Type QCW Fiber Laser
Material Customized
Laser Power ≥60w ≥100w
Pulse Energy 6J 10J
Frequency 50Hz
Pulse Width 0.5-50ms
Mode Pulse
Fluctuation ≤1.5%
Laser Spot 0.3-1.5mm
Cooling Air cooling
Power Consumption 300w 500w



Main dimension

6J - 10J Laser Welding Jewelry Machine Air Cooling With QCW Laser Source 0

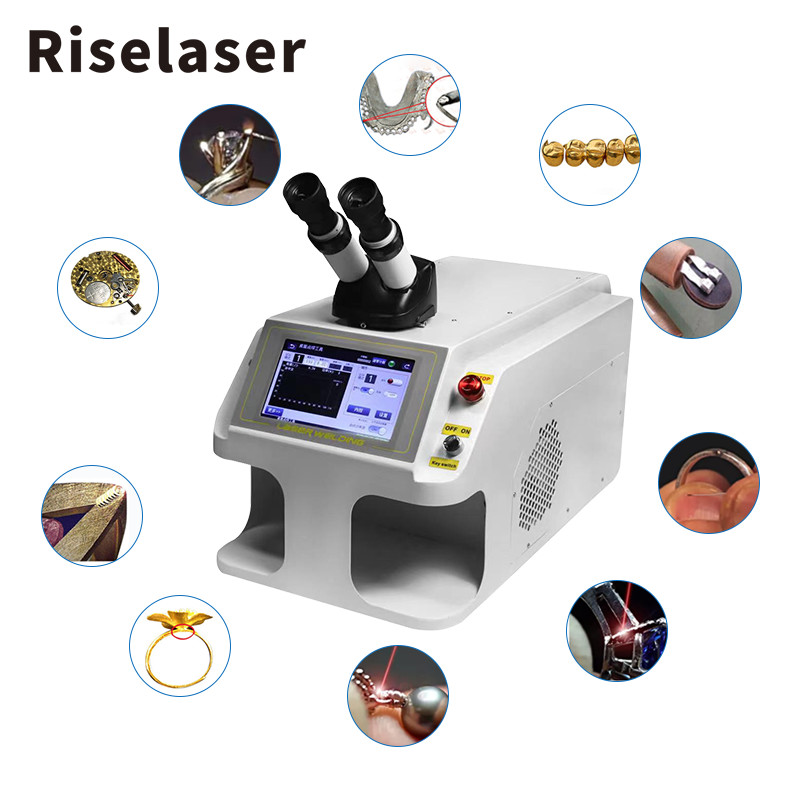

QCW Spot laser welding machine

●Energy, pulse width, frequency and focus can be adjusted in a wide range to achieve different welding effects.

●Using the world's leading automatic shading system to eliminate harmful light to the eyes.

●24 hours continuous operation, stable operation performance.

● Maintenance-free within 10,000 hours.

● Personalized design in line with ergonomic principles.

●High welding efficiency, good quality, large depth, small deformation, no pollution of solder joints, environmental protection.

6J - 10J Laser Welding Jewelry Machine Air Cooling With QCW Laser Source 1
