1500w 2000w 3000w Handheld Laser Welding Machine SUP 21S Laser Gun For 8mm Thick Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Hand Held Welding Machine | Key Words 2 | Thick Metal Welding |
|---|---|---|---|
| Main Feature | Maximum To 8mm Metal Welding | Laser Type | Raycus/ Max/BWT |
| Laser Power | 1000w/1500w/2000W/3000W | Machine Weight | 160KG |
| Laser Gun | SUP 21S | Packing Weight | 200KG |
| Cooling System | Built-in Water Chiller+air Cooling | Fiber Cable | 10M(customize Length) |
| Power | Three Phase | Electrical Supply | 380/220±10% V AC, 50/60Hz |
| Highlight | 3000w Handheld Laser Welding Machine,SUP 21S Handheld Laser Welding Machine,8mm Metal hand held welding machine |
||
Product Description
SUP 21S laser head laser gun with 3000w laser source hand held laser welding machine
The hand-held fiber laser welding machine is mainly used for laser welding of long-distance and large workpieces. The heat-affected area during welding is small, and the workpiece will not be deformed, blackened, or traced on the back. And the welding depth is large, the welding is firm, and the melting is sufficient. There is no sagging phenomenon when the protruding part of the molten material in the molten pool is aggregated with the matrix.
Specification
| Laser Beam | 3kw Max Raycus BWT |
| Cooling | Built-in Industrial Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 1.25kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 98*54*69cm |
| Weight | 160kg |
Working samples

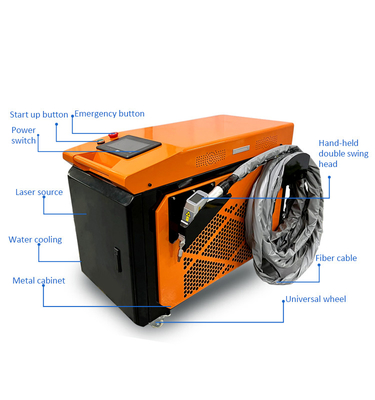

Machine details

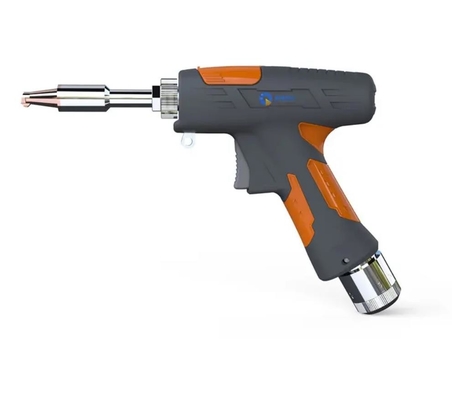

Laser welding gun
Machine features
1. Portable and flexible, easy to operate, suitable for multi-angle and multi-position welding;
2. Equipped with 15m/10m imported optical fiber, flexible and convenient for outdoor welding;
3. Infrared positioning is used to verify the position of the welding head and verify the position during welding. The welding position is more accurate, ensuring more beautiful welds;
4. Not easy to deform, easy to polish. Solve the problems of welding penetration, welding nugget and welding quality when using argon arc welding;
5. The laser welding depth is large and the welding seam is firm. It is suitable for spot welding of various complex welds and various equipment.
