Riselaser 3000w High Power Handheld Fiber Laser Welding Machine SUP 21S Gun For 8mm Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Handheld Fiber Laser Welding Machine | Key Words 2 | Welding 8mm Metal |
|---|---|---|---|
| Main Feature | 3KW | Laser Type | Raycus/ Max/BWT |
| Laser Power | 1000w/1500w/2000W/3000W | Machine Weight | 160KG |
| Laser Gun | SUP 21S | Packing Weight | 200KG |
| Water Chiller | Hanli, S&A | Fiber Cable | 10M(customize Length) |
| Power | Three Phase | Electrical Supply | 380/220±10% V AC, 50/60Hz |
| Highlight | ISO handheld fiber laser welding machine,3000w handheld fiber laser welding machine,SUP 21S hand held fiber laser welder |
||
Product Description

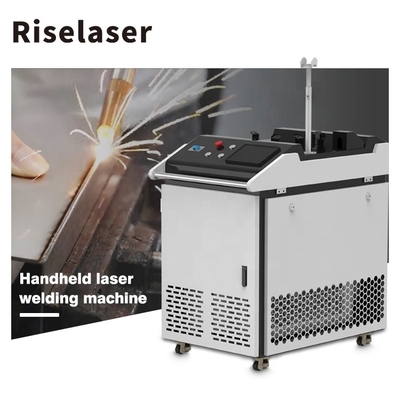

Riselaser 3000w high power handheld fiber laser welding machine to welding 8mm metal
Small size, easy to move
The whole machine is integrally formed, and the overall size is only 930*620*1000mm. 10m/15m fiber optic cable enablement is available.
The hand-held welding head is equipped with a temperature sensor and a double protective lens, which is easy to replace and debug. After working for a long time, the welder will not feel tired.
Its top pull-push handle and bottom swivel casters (lockable) make it easy for users to move the unit.
SUP 21S 3000W welding head, small and light
Specification
| Laser Beam | 3kw Max Raycus BWT |
| Cooling | Built-in Industrial Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 0.75kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 930*620*1000mm |
| Weight | 160kg |
Working samples
Machine details
Laser welding gun
Machine features
1. Portable and flexible, easy to operate, suitable for multi-angle and multi-position welding;
2. Equipped with 15m/10m imported optical fiber, flexible and convenient for outdoor welding;
3. Infrared positioning is used to verify the position of the welding head and verify the position during welding. The welding position is more accurate, ensuring more beautiful welds;
4. Not easy to deform, easy to polish. Solve the problems of welding penetration, welding nugget and welding quality when using argon arc welding;
5. The laser welding depth is large and the welding seam is firm. It is suitable for spot welding of various complex welds and various equipment.
Machine diemension
