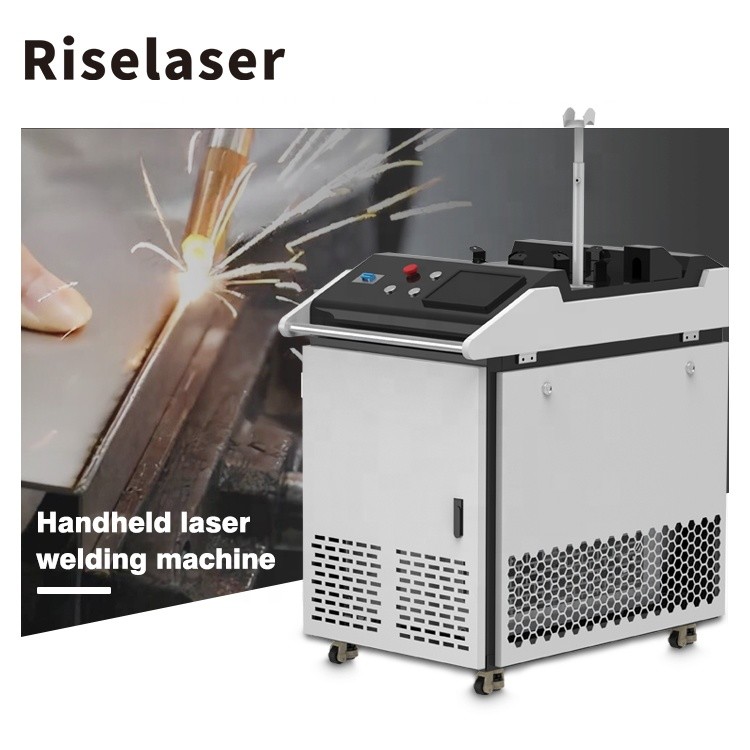

10m / 15m Handheld Laser Welding Machine SUP Laser Gun For Stainless Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Hand Held Welding Machine | Key Words 2 | Laser Welding Machine |
|---|---|---|---|
| Main Feature | With Hali / S&A Chiller | Laser Type | Raycus/ Max/BWT CW Laser Welding Machine |
| Laser Power | 1000w/1500w/2000W | Machine Weight | 160KG |
| With | Wire Feeder | Packing Weight | 200KG |
| Cooling System | Built-in Water Chiller+air Cooling | Fiber Wire Length | 10M/15m |
| Power Supply | Single Phase/three Phase | Electrical Supply | 380/220±10% V AC, 50/60Hz |
| Machine Size | 93*62*100cm | ||
| Highlight | 15m Handheld Laser Welding Machine,SUP Gun Handheld Laser Welding Machine,SUP Gun Hand Held Welding Machine |
||
Product Description
Max laser source hand held welding machine with SUP laser gun for stainless steel welding
Welding is an innovative manufacturing technique that can be used in all fields. While the technology itself is widespread, some of its processes are not well understood and underutilized. Laser welding falls into this category, and although it can be mistaken for a complex process, it offers many unrivaled advantages in terms of speed, technology and cost.
Features
Welding speed is 4-10 times faster than traditional TIG/MIG welding
The operation is simple, no welding certificate is required, and unskilled operators can weld the product beautifully
Metal products of different materials and thicknesses can be welded
Low welding heat, no deformation of the workpiece
The welding seam is smooth and beautiful, reducing the subsequent grinding process, saving time and cost.
Specification
| Laser Beam | 2000w 1500w 1000w Max Raycus BWT |
| Cooling | Built-in Industrial Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 1.25kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 93*62*100cm |
| Weight | 160kg |
Working samples
Machine details
Machine main features
9 kinds of welding modes, a variety of welding nozzles, to meet different welding needs; With safety induction function, laser will be emitted after touching the metal, and the light will be automatically locked when it is removed; Spiral shaking function, the weld width can be adjusted, and the welding ability is significantly improved.
High-quality water chiller: dual temperature and dual control, circulating water circuit, can quickly cool the internal pipeline cavity of the welding head, and cool the laser at the same time.
Flexible welding laser head: 360° no dead angle micro welding
After the laser beam is focused, a small spot can be obtained, which can be precisely positioned, and is suitable for automatic mass production of micro-sized workpieces. It is mainly used for welding thin-walled materials and precision parts, and can realize spot welding, stitch welding, tailor welding, sealing welding, etc. High aspect ratio, small weld width and low thermal influence
Laser Welding Capacity
|
