High power BWT Fiber Laser Power Source water cooling For 3D printer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Word | Bwt Fiber Laser Power Source | Central Wavelength Range, Nm | 1080 ±5 |
|---|---|---|---|
| Mode Of Operation | CW | Modulation Frequency, KHz | 0-5 |
| Core Diameter | 20, 25, 50, 100um | Power Tunability, % | 10-100 |
| Power Stability**, % | ±5 | Cooling Way | Water Cooling |
| Application | Laser Cutting And Welding | Application 2 | For 3D Printer |
| Highlight | BWT Fiber Laser Source,Fiber Laser Source,BWT Fiber Laser Power Source |
||
Product Description

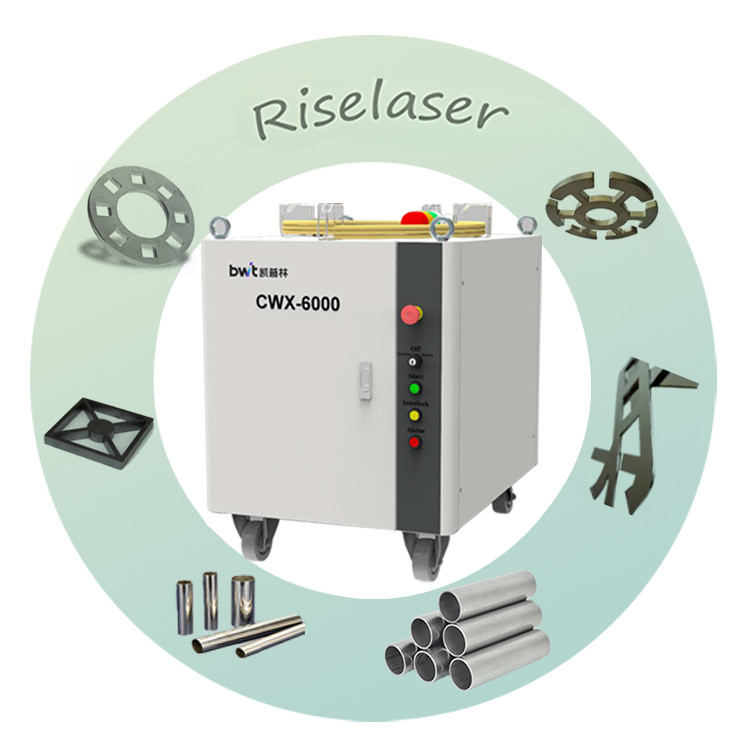

High Power BWT Fiber Laser Power Source Water Cooling For 3D Printer
BWT High power fiber laser power source for metal cutting welding 12000w
BWT Lightning series fiber laser has better beam quality and can realize precise processing; there are two working modes of continuous and modulated pulse, which can greatly reduce the processing heat-affected zone; reliable performance, modular all-fiber design, all photoelectric The device is packaged in a rugged case that can withstand harsh industrial application conditions.
Specifications
| Model | BWT Lightning 12000W Fiber Laser |
| Optical Characteristics | |
| Nominal Output Power(W) | 12000W |
| Operation Mode | CW/Modulated |
| Polarization State | Random |
| Output Power Tunability(%) | 10~100 |
| Emission Wavelength(nm) | 1080±5 |
| Output Power Instability | ±1.5 |
| Modulation Frequency(Hz) | 50~50,000 |
| Red Guide Laser Power(mW) | 0.1~1 |
| Optical Output Characteristics of QBH head | |
| Beam Quality | BPP <2.3 (mm×mrad) |
| Core Fiber(μm) | 50(25, 100, 200 optional) |
| Delivery Cable Length(m) | 25 |
| Electrical Characteristics | |
| Power Supply | 380±10% V AC, 50/60Hz |
| Numerical Aperture (NA) | 0.2 |
| Max. Power Consumption(W) | 35KW |
| Control Mode | RS-232/AD/Ethernet |
| Other Characteristics | |
| Dimensions(W×H×D) | 482*1026*343MM |
| Weight | 150kg |
Application
Laser Additive Remanufacturing
Laser cladding
Laser welding
laser cutting
Cutting samples
