40J Fiber Laser Welding Machine Magic Box For Jewelry Watch Repair
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Main Usage | Spot Laser For Jewelry Welding | Selling Point | Laser Soldering Machine For Jewellery |
|---|---|---|---|
| Operating Mode | Touch Control | Equipment Size | Dia29.5cm X H28.2cm |
| Machine Weight | 13.5kg | Pulse Laser Width | 0.1-10ms |
| Aiming And Positioning | Microscope + HD Digital CCD Camera System | Max Laser Pulse Energy | 40J |
| Main Application | Jewelry Watchwear Welding, Repair | Display Touch Screen | 10X High Quality Colorful Digital CCD |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | Wooden Package Dimension | 40x45x48CM |
| Highlight | 40J Fiber Laser Welding Machine,AC220V Fiber Laser Welding Machine,40J Laser Spot Welding Machine |
||
Product Description

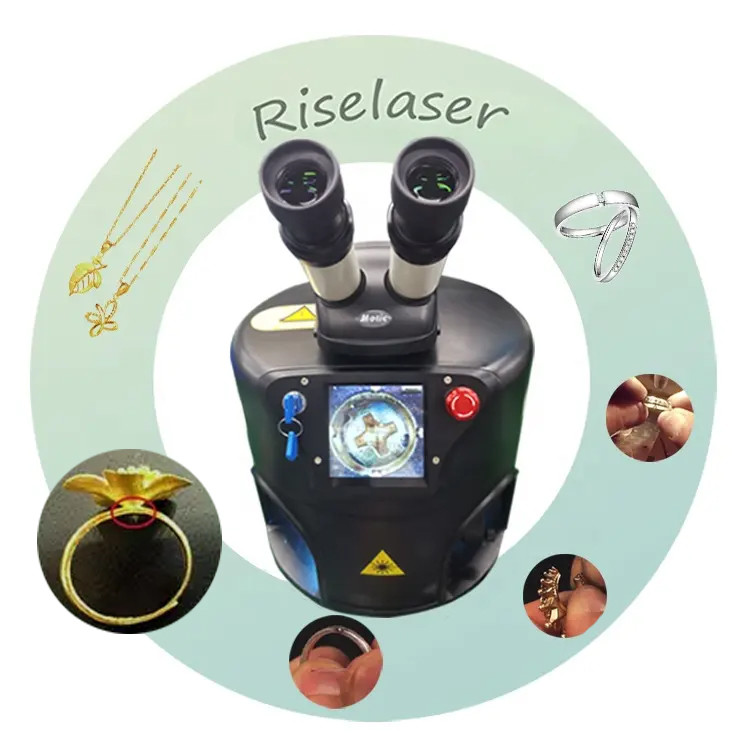

40J Fiber Laser Welding Machine Magic Box For Jewelry Watch Repair
Spot Fiber Laser Welding Machine Magic Box For Jewelry Watch Repair Laser Spot Welding Machine
Machine Description
The Magic Box welder is equipped with a cutting-edge digital microprocessor, allowing it to perform 10 times faster than traditional systems, while accurately measuring high energy. This feature-packed machine boasts real-time and automatic regulation of power supply, a dual light LCD touch screen shutter, and an integrated internal camera for added precision. Additionally, the laser light is automatically controlled to adjust the energy, ensuring consistent and accurate results. The Magic Box welder also features better cooling and efficient air cooling, along with six preset pulse shaping programs and argon gas nozzles for direct welding. The air nozzles cool the workpieces in the working chamber, and the large drawer makes chamber cleaning a breeze. With 50 memory parameters and low noise, low maintenance operation, the Magic Box welder is a reliable and powerful addition to any welding setup. Get yours today!
Machine specification
| Model | Magic Box | |
| Laser Type | 1064nm YAG Laser | |
| Beam Diameter | 0.2-2.0mm | |
| Pulse Width | 0.1-10ms | |
| Frequency | 1.0~10.0Hz Continuously Adjustable | |
| Maximum Laser Pulse Energy | 40J | |
| Host Power Consumption | ≤1.5KW | |
| Cooling System | Convective air cooling | |
| Pump Source | Xenon lamp | |
| Aiming and Positioning | Microscope + HD digital CCD camera system | |
| Operating Mode | Touch Control | |
| Display Touch Screen | 10X high quality colorful Digital CCD | |
| Operating Language | English, Chinese | |
| Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | |
| Machine Dimension | Ø295mm x H282mm | |
| Wooden Package Dimension | 40x45x48CM | |
| Machine Net Weight | 13.5KG | |
| Operating Environmental Temperature | ≤45℃ | |
| Humidity | < 90% non-condensing | |
| Application | Welding and repairing all kinds of jewelry and metal parts | |
Main features of the Magic Box
1. Compared with ordinary laser spot welding machines, Magic Box has a fast boot time, and it only takes 2-5 seconds to enter the working state, which improves work efficiency and improves customer experience.
2. Magic Box adopts air-cooled cooling method, built-in condensate, easy to start, no need to connect other equipment, no need to add cooling water, and it can be used after power on.
3. The operation interface is simple, enter the boot interface to change the required parameters, such as energy percentage, pulse frequency, light spot
4. The weight is only 13.5KG. Currently the smallest and lightest spot welder in the world, you can easily carry it to various shopping malls for custom repair work for your customers. Transportation and storage costs are thus greatly reduced.
This machine is equipped with a digital screen. Different from the previous spot welding machines, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable and can observe more carefully.
3. It is small in size and has a working energy of 40J, which can easily cope with welding work in various industries.
4. The machine is equipped with a high-definition 10 times magnification microscope for professional welding operators
5. Easy to use for both novice and mature operators
Machine characteristics
Comparing a Magic Box to a Mobile Phone in Terms of Picture Quality
Machine dimension
Application of Laser Technology
With laser technology, it is possible to effortlessly weld a variety of precious metals, such as platinum, titanium, silver, and palladium. Soldering components with the use of solder material through laser technology ensures that the joints are precise and clean, eliminating the need for further cleaning. Laser technology can also be utilized to repair casting defects like blowholes or breakage. The process involves soldering the affected area using wire solder, resulting in a seamless repair.
Machine package
Machine operation display
